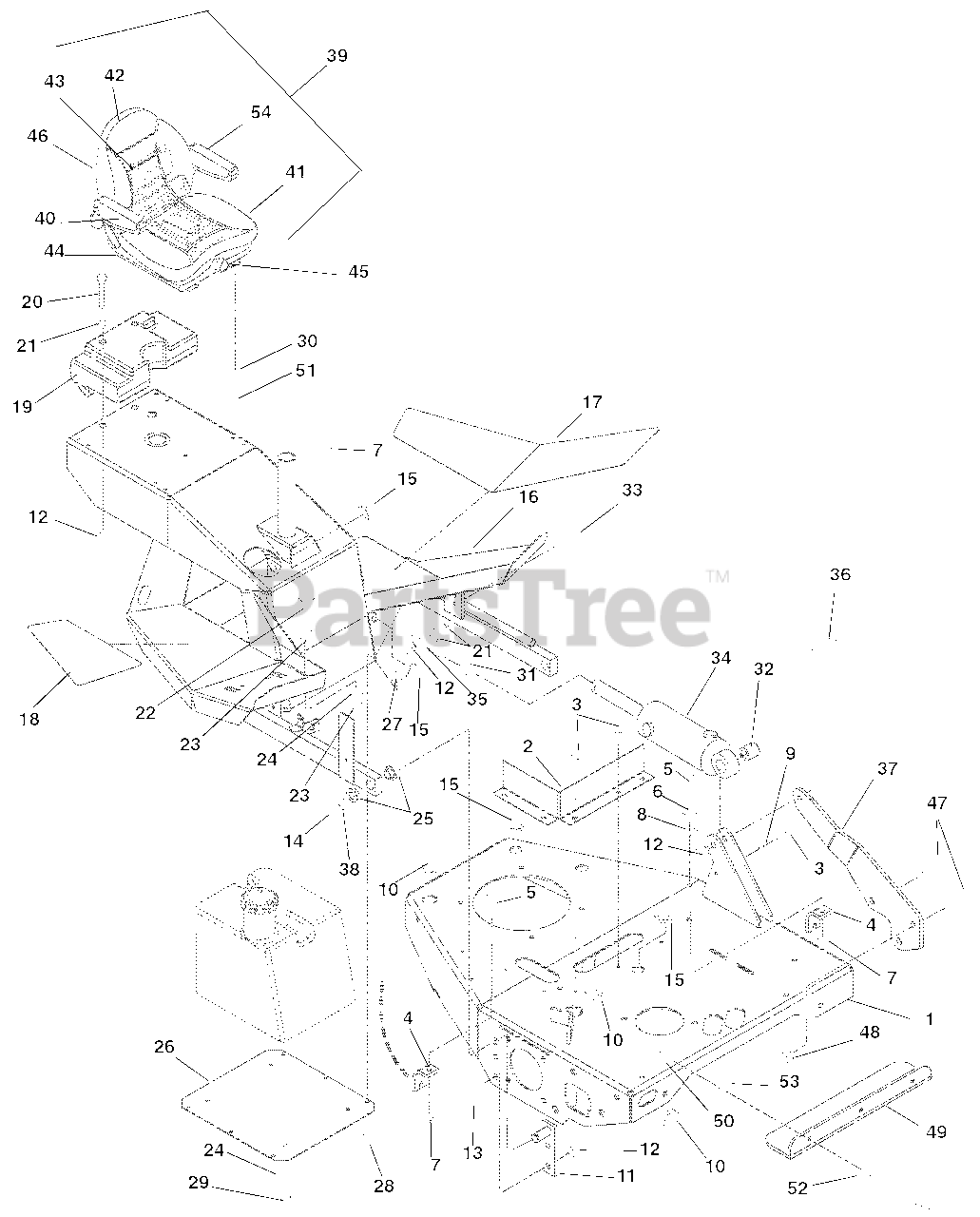

990021 (PM 320) - Gravely Pro-Master Zero-Turn Mower, 27hp Kohler (SN: 002000 & Above) Frame, Sulky Frame And Seat Parts Diagram

Pro-Master Zero-Turn Mower, 27hp Kohler

Frame, Sulky Frame And Seat Parts Diagram

  • Title

1

Gravely 03295453

Weldment, Frame

$791.99

$

Usually ships in 4-12 days

0

2

Gravely 08897500

Heat Shield

$

$

Not available

3

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 08968400

Bracket, Cable

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

6

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06916000

J-Clamp

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 06917900

Clamp, Steel 1.0

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 07536800

Grommet 1.25

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 04911800

Weldment, Pivot

$80.99

$

Usually ships in 4-12 days

0

12

Gravely 06543600

Nut, Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05962000

Bolt, Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$4.99

$

In Stock, Qty 7

0

14

Gravely 05714600

Ring, Retaining-External .689 x .077

$2.99

$

In Stock, Qty 5

0

15

Gravely 07530600

Grommet .75 x 1.06 x 1.38

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 09099953

Weldment, Sulky

$

$

Not available

17

Gravely 04909900

Pad, Left Hand Floorboard

$26.99

$

Usually ships in 4-12 days

0

18

Gravely 04910000

Pad, Right Hand Floorboard

$

$

Not available

19

Gravely 04912251

Weight, Rear

$

$

Not available

20

Gravely 05961900

Bolt, Hex .50-13 x 4.00 Grade 5
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06441900

Washer, Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

22

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

23

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

24

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05518400

Bushing, Flange-Nylon .762 x 1.00 x .58 x 1.48

$5.49

$

In Stock, Qty 20+

0

26

Gravely 04909453

Plate, Bottom

$46.99

$

Usually ships in 4-12 days

0

27

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 05508900

Bushing, Sleeve .377 x .624 x .235

$9.99

$

In Stock, only 2 left!

0

31

Gravely 06539500

Nut, Jam .50-20 Grade 2

$2.99

$

Usually ships in 4-12 days

0

32

Gravely 09215200

Bushing, .516 x 1.00 x 1.05

$36.99

$

Usually ships in 4-12 days

0

33

Gravely 05961000

Bolt, Hex .50-13 x 2.25 Grade 5
(Superseded to 05901835)

$3.99

$

In Stock, Qty 5

0

34

Gravely 04909800

Cylinder, Platform Lift

$647.99

$

Usually ships in 4-12 days

0

35

Gravely 08959600

Assembly, Rod End Right Hand

$40.99

$

Usually ships in 4-12 days

0

36

Gravely 05953500

Bolt, Hex .50-13 x 2.75 Grade 5
(Superseded to 05901836)

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 04913153

Support, Cylinder Brace

$44.99

$

Usually ships in 4-12 days

0

38

Gravely 06413400

Washer, Hardened Thrust .758 x 1.23 x .031

$3.49

$

Usually ships in 4-12 days

0

39

Gravely 03947200

Seat, Suspension, Light Gray, Seat Bolt Bushing

$925.99

$

Usually ships in 4-12 days

0

40

Gravely 59210400

Kit, Right Hand Armrest Assembly

$142.99

$

Usually ships in 4-12 days

0

41

Gravely 59208900

Kit, Seat Cushion, Light Gray

$263.99

$

In Stock, only 3 left!

0

42

Gravely 59208800

Kit, Seatback Cushion, Light Gray

$431.99

$

Usually ships in 4-12 days

0

43

Gravely 59207800

Kit, Spring and Saddle

$186.99

$

Usually ships in 4-12 days

0

44

Gravely 59207900

Kit, Seat Slide

$

$

Not available

45

Gravely 59208000

Kit, Seat Knob

$34.99

$

Usually ships in 4-12 days

0

46

Gravely 59208100

Kit, Seat Back Panel

$179.99

$

Usually ships in 4-12 days

0

47

Gravely 05959300

Bolt-Hex .62-11 x 1.75 Grade 5

$

$

Not available

48

Gravely 06540700

Nut-Nylon Locking .625-11

$4.99

$

In Stock, Qty 20+

0

49

Gravely 04913253

Guard, Hose

$8.49

$

Usually ships in 4-12 days

0

50

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

51

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

52

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

53

Gravely 07027600

Nut, Push .250 x .50

$2.49

$

In Stock, Qty 6

0

54

Gravely 59210500

Kit, Left Hand Armrest Assembly

$142.99

$

Usually ships in 4-12 days

0
