990021 (PM 320) - Gravely Pro-Master Zero-Turn Mower, 27hp Kohler (SN: 002000 & Above) Steering And Rear Wheels Parts Diagram

Pro-Master Zero-Turn Mower, 27hp Kohler

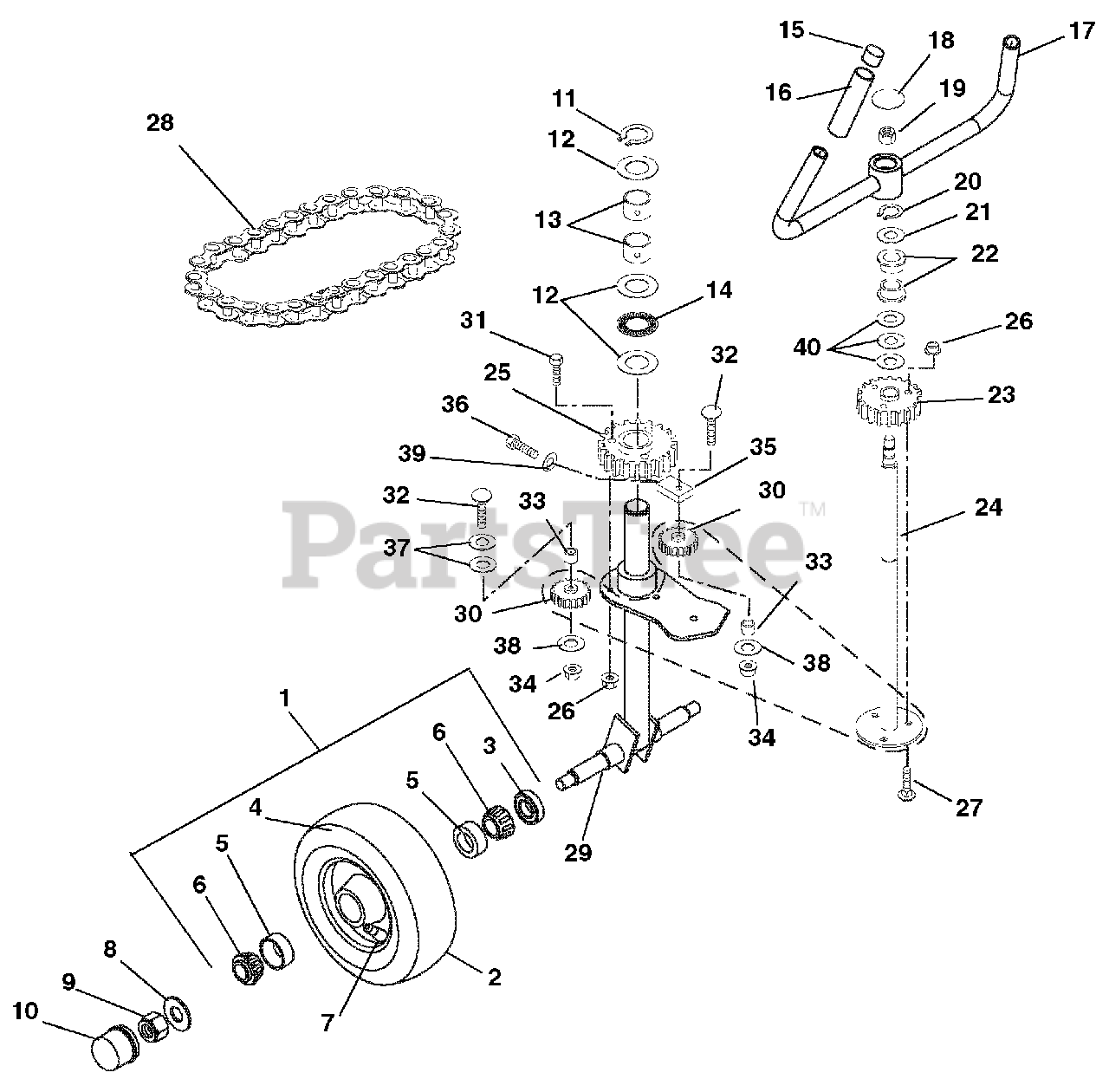

Steering And Rear Wheels Parts Diagram

  • Title

1

Gravely 07153100

Tire/Wheel Assembly 6.50-8 (Contains Items 2-6)
(Superseded to 07100220)

Note: (Contains Items 2-6)

$

$

Not available

2

Gravely 07156000

Tire, 16 x 6.5-8 4-Pulley Rib Tread

$

$

Not available

3

Gravely 00092498

Seal

$

$

Not available

4

Gravely 07148300

Wheel Assembly 3.75 x 8

$

$

Not available

5

Gravely 05407000

Bearing-Cup 1.980 x 4.20

$18.99

$

In Stock, Qty 20+

0

6

Gravely 69000300

Bearing, Cone with Grease
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

7

Gravely 07520000

Valve Stem Assembly

$2.99

$

In Stock, only 4 left!

0

8

Gravely 06439000

Washer, Flat-Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.99

$

In Stock, Qty 17

0

9

Gravely 06535400

Nut, Locking-Center .75-10

$6.49

$

Usually ships in 4-12 days

0

10

Gravely 00092396

Cap, Dust

$

$

Not available

11

Gravely 00090071

Ring, Retaining-External 1.50 x 1.38

$

$

Not available

12

Gravely 00090072

Washer-Thrust 1.502 x 2.18 x .063

$

$

Not available

13

Gravely 00092387

Bearing-1.00 x 1.13 x 1.00

$

$

Not available

14

Gravely 00092388

Bearing-Needle-Thrust 1.50 x 2.18 x .078

$

$

Not available

15

Gravely 07533300

Caplug, Handlebar

$2.99

$

In Stock, only 3 left!

0

16

Gravely 04910200

Grip

$10.99

$

In Stock, Qty 20+

0

17

Gravely 04910151

Weldment, Handlebar

$176.99

$

Usually ships in 4-12 days

0

18

Gravely 07528400

Hole Plug 1.38

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 06530300

Nut-Locking-Nylon .625-18
(Superseded to 06500936)

$4.99

$

In Stock, Qty 12

0

20

Gravely 05712300

Ring-Retaining-External .906 x .078
(Superseded to 05707300)

$3.49

$

In Stock, Qty 17

0

21

Gravely 00090114

Washer-Thrust 1.55 x 1.00 x .09

$

$

Not available

22

Gravely 00099551

Bushing-Flange 1.02 x 1.38 x .75 x 1.75

$

$

Not available

23

Gravely 00176700

Sprocket, 23 Tooth #40

$

$

Not available

24

Gravely 04909700

Weldment, Steering Shaft

$

$

Not available

25

Gravely 00176600

Sprocket, 28 Tooth #40

$

$

Not available

26

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06212100

Bolt-Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

28

Gravely 00185600

Chain, #40 x 125 Pitches (62.5")

Note: (62.5")

$43.99

$

Usually ships in 4-12 days

0

29

Gravely 09098651

Weldment, Caster Wheel

$

$

Not available

30

Gravely 00185400

Sprocket, #40 Idler

$

$

Not available

31

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 5

0

32

Gravely 06213400

Bolt-Round Head Square Neck .38-16 x 2.25 Grade 5
(Superseded to 06200301)

$4.99

$

In Stock, Qty 20+

0

33

Gravely 00516100

Spacer .406 x .625 x .656

$22.99

$

Usually ships in 4-12 days

0

34

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 09099400

Plate, Idler Adjustment

$

$

Not available

36

Gravely 05977400

Bolt, .31-24 x 1.50 Grade 8

$

$

Not available

37

Gravely 06309100

Washer-Flat-Steel .406 x 1.125 x .25

$

$

Not available

38

Gravely 06442400

Washer-Flat-Steel .406 x 1.375 x .135
(Superseded to 06401121)

$6.49

$

In Stock, Qty 8

0

39

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 06445300

Washer-Flat-Steel 1.12 x 1.500 x .092

$2.99

$

Usually ships in 4-12 days

0
