990021 - Simplicity Rear Mounted Cultivator Cultivator Group - Rear Mounted (3555I01) Parts Diagram

Rear Mounted Cultivator

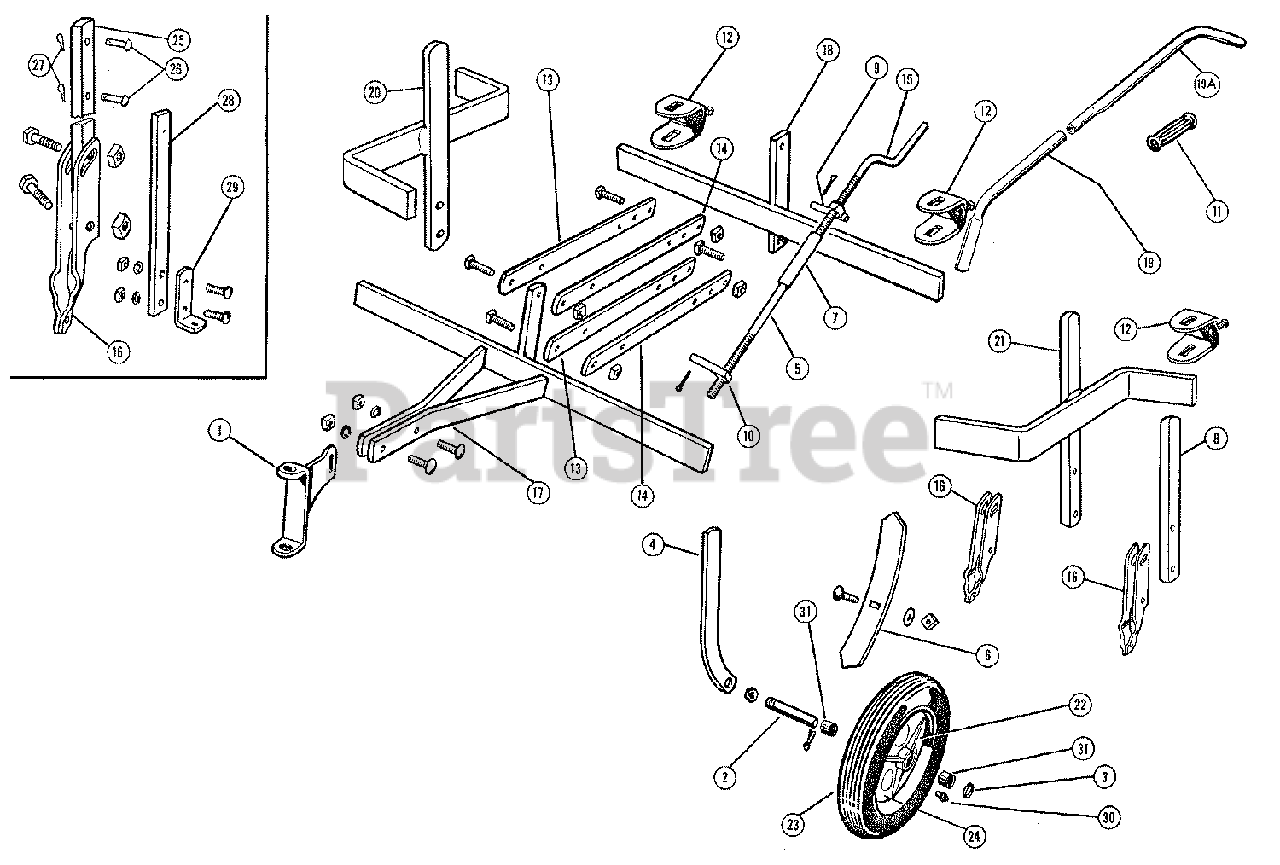

Cultivator Group - Rear Mounted (3555I01) Parts Diagram

  • Title

1

Simplicity SSA77A

DRAW BAR END

$

$

Not available

2

Simplicity SSA54A

GUAGE WHEEL SPINDLE

$

$

Not available

3

Simplicity SSA55

GUAGE WHEEL WASHER

$

$

Not available

4

Simplicity 112057

GUAE WHEEL STANDARD

$

$

Not available

5

Simplicity SSA-A9

LOWER SCREW MEMBER

$

$

Not available

6

Simplicity SSA-A14A

CULTIVATOR STEEL WITH BOLT

$

$

Not available

7

Simplicity SSA-A17

ADJUSTMENT COUPLING

$

$

Not available

8

Simplicity SSA-A18

TOOL STANDARD -- SHORT

$

$

Not available

9

Simplicity SSA-A21

UPPER ADJUSTMENT NUT

$

$

Not available

10

Simplicity SSA-A22

LOWER ADJUSTMENT NUT

$

$

Not available

11

Simplicity DA-76A

HANDLE GRIP

$

$

Not available

12

Simplicity SSA-A23

SHANK CLAMP

$

$

Not available

13

Simplicity SSA-B2A

PARALLEL BAR (RIGHT) -- Unthreaded

$

$

Not available

14

Simplicity SSA-B3A

PARALLEL BAR (LEFT) -- Threaded

$

$

Not available

15

Simplicity SSA-B8

UPPER SCREW MEMBER

$

$

Not available

16

Simplicity SSA-AX3

TOOL HOLDER ASSEMBLY

$

$

Not available

17

Simplicity SSA-BX1A

DRAW BAR ASSEMBLY

$

$

Not available

18

Simplicity SSA-BX2A

TOOL BAR ASSEMBLY

$

$

Not available

19

Simplicity 117005

HANDLE, Control, Upper

$

$

Not available

19A

Simplicity 117006

HANDLE, Control, Lower

$

$

Not available

20

Simplicity SSA-CX3

R.H. TOOL FRAM ASSEMBLY

$

$

Not available

21

Simplicity SSA-CX4

L.H. TOOL FRAM ASSEMBLY

$

$

Not available

22

Simplicity SSA-AX6

WHEEL, Complete w/Juvenile Tires 10 x 1.75

$

$

Not available

23

Simplicity SSA-A240

TIRE - 10 x 1.75

$

$

Not available

24

Simplicity SSA-B28

WHEEL ONLY

$

$

Not available

25

Simplicity SSA-B13

STANDARD

$

$

Not available

26

Simplicity SSA-A15

PIN

$

$

Not available

27

Simplicity S1-A45A

SPRING CLIP

$

$

Not available

28

Simplicity SSA25

TOOL STANDARD

$

$

Not available

29

Simplicity SSA105

TOOL HOLDER

$

$

Not available

30

#1641 GREASE FITTING

$

$

Not available

31

Simplicity SSA-A27

WHEEL BUSHING

$

$

Not available
