990023 (PM 320) - Gravely Pro-Master Zero-Turn Mower, 27hp Kawasaki (SN: 002000 - 002499) Electrical System Parts Diagram

Pro-Master Zero-Turn Mower, 27hp Kawasaki

Electrical System Parts Diagram

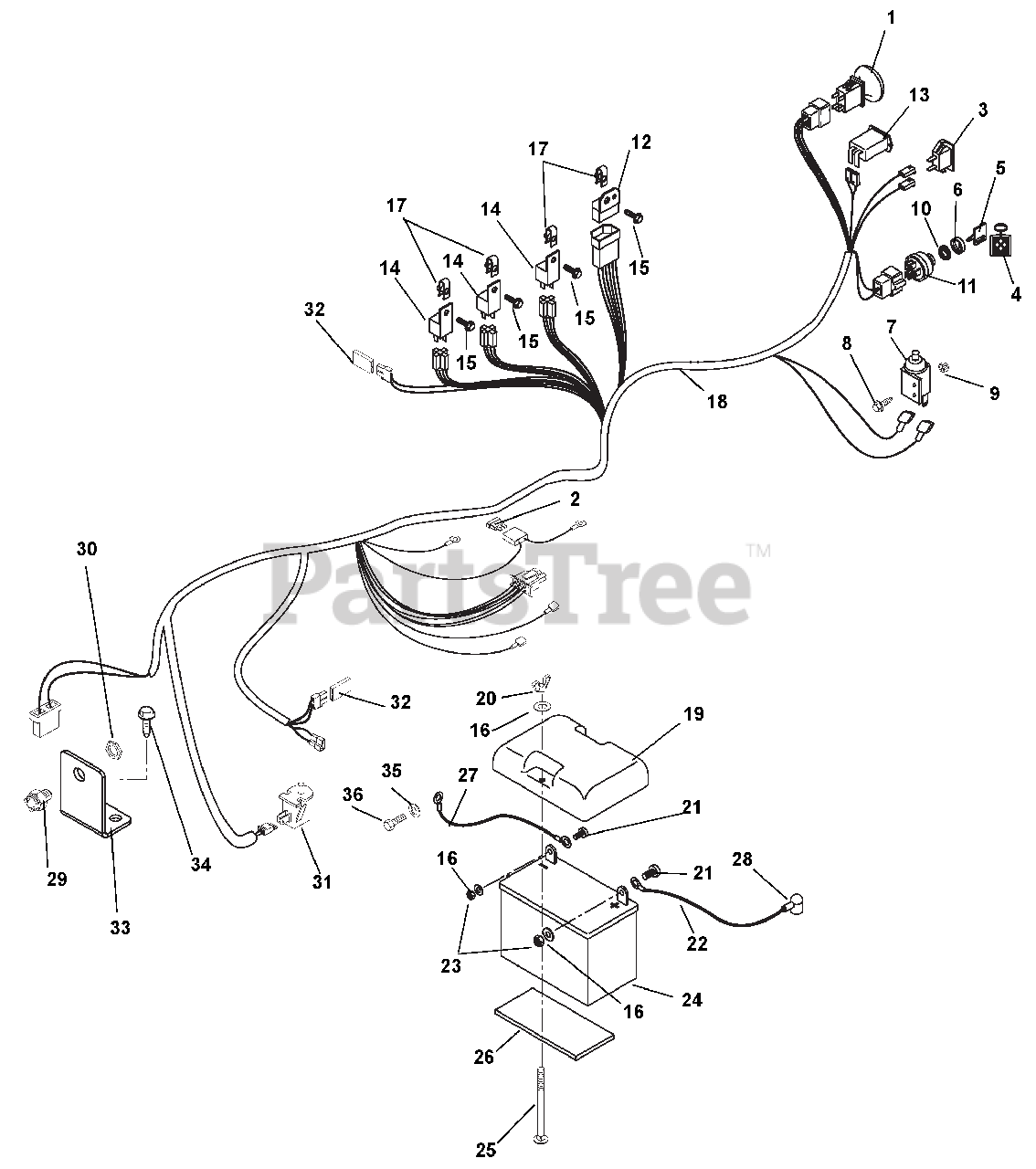

  • Title

1

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

2

Gravely 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$7.99

$

In Stock, Qty 9

0

4

Gravely 03490000

KEY CHAIN

$

$

Not available

5

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

Gravely 09284600

KEY W/ SHIELD

$18.99

$

In Stock, only 1 left!

0

6

Gravely 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 12

0

7

Gravely 09251900

SWITCH-SINGLE POLE N.O.W/COVER

Note: (N.O.) with Cover

$23.99

$

In Stock, only 1 left!

0

8

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06517400

NUT- PANEL .562-24 GRECO

$21.99

$

In Stock, Qty 6

0

11

Gravely 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 15

0

12

Gravely 09044200

MODULE,INTERLOCK,DELAY, 1801

$73.99

$

In Stock, only 4 left!

0

13

Gravely 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

$63.99

$

Usually ships in 4-12 days

0

14

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

In Stock, Qty 20+

0

15

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

16

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 07027700

NUT-RTNR 10-24

$

$

Not available

18

Gravely 04912700

WIRING HARNESS
(Superseded to 03287400)

$263.99

$

Usually ships in 4-12 days

0

19

Gravely 04912900

COVER, BATTERY

$11.99

$

In Stock, only 2 left!

0

20

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

In Stock, Qty 20+

0

21

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

22

Gravely 03287200

CABLE - START 22.00"

$21.99

$

In Stock, only 2 left!

0

23

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

25

Gravely 06220400

BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

$5.49

$

In Stock, Qty 20+

0

26

Gravely 08803400

PAD,BATTERY

$7.49

$

Usually ships in 4-12 days

0

27

Gravely 03288200

CABLE-NEGATIVE BATTERY 35.00"

$26.99

$

Usually ships in 4-12 days

0

28

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$8.49

$

Usually ships in 4-12 days

0

29

Gravely 08803700

SWITCH, NEUTRAL START N.C.

Note: (N.C.)

$35.99

$

Usually ships in 4-12 days

0

30

Gravely 07015100

NUT-STAMPED .56-18

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (Included with Seat)

$9.99

$

In Stock, Qty 20+

0

32

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

Note: (Included with Harness)

$13.99

$

In Stock, Qty 20+

0

33

Gravely 01920753

320 NUETRAL SWITCH BRACKET-RED

$17.99

$

Usually ships in 4-12 days

0

34

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (023)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 05973300

BLT-HEX M8-1.25X20 YWZC
(Superseded to 05901628)

Note: (023)

$1.99

$

Usually ships in 4-12 days

0
