990023 (PM 320) - Gravely Pro-Master Zero-Turn Mower, 27hp Kawasaki (SN: 002500 & Above) Engine, Clutch, Fuel And Exhaust Parts Diagram

Pro-Master Zero-Turn Mower, 27hp Kawasaki

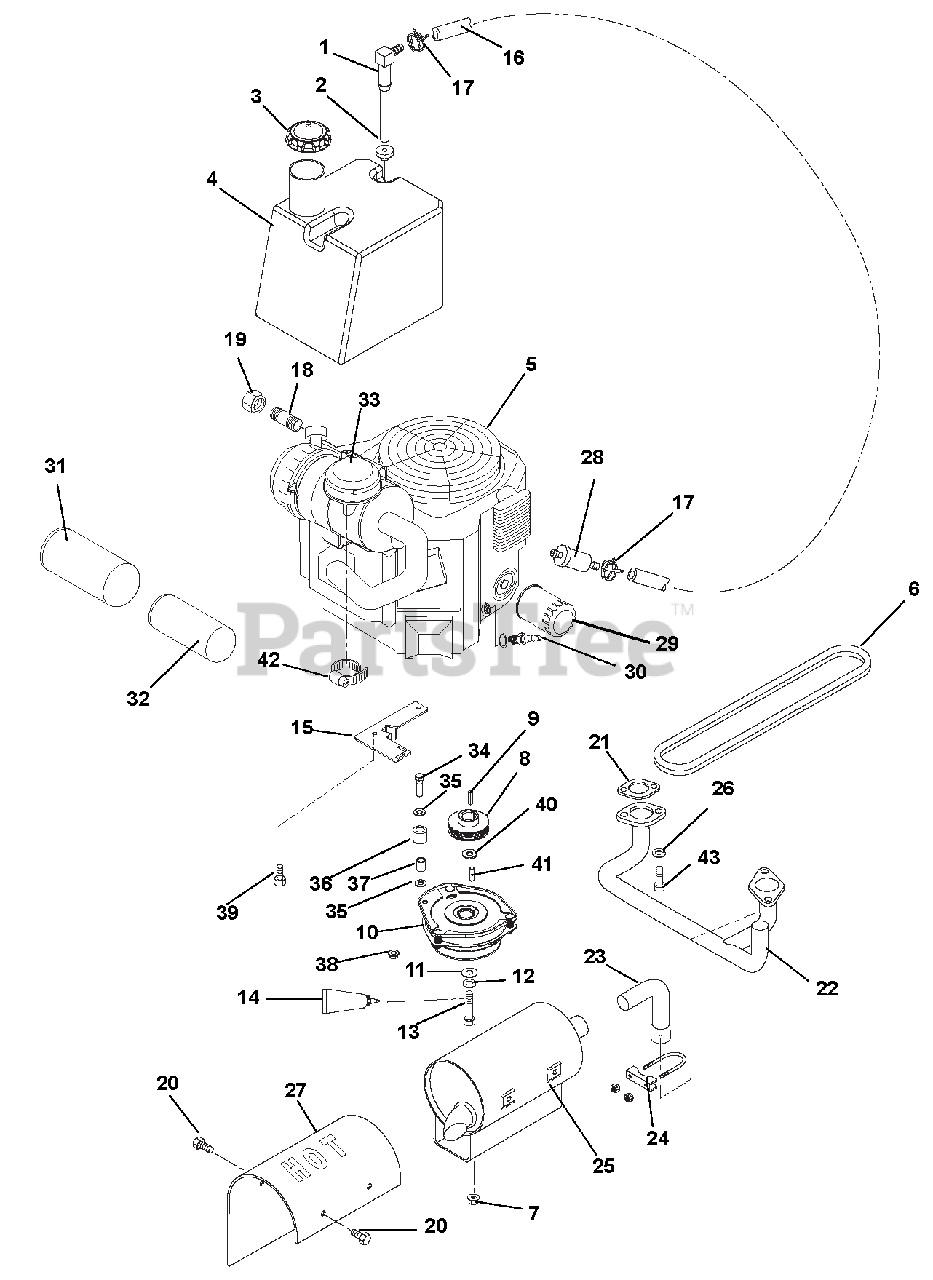

Engine, Clutch, Fuel And Exhaust Parts Diagram

  • Title

1

Gravely 09112300

FITTING, TANK
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0

2

Gravely 00387300

GROMMET, DAPCO VITON #12240

$9.99

$

In Stock, Qty 20+

0

3

Gravely 03859100

CAP, FUEL

$29.99

$

In Stock, Qty 16

0

4

Gravely 09098400

TANK, FUEL

$

$

Not available

5

Gravely 08200327

ENGINE, KAWASAKI FX751 (27HP)

$

$

Not available

6

Gravely 07224300

V-BELT, HA-RAW EDGE

$43.99

$

In Stock, only 2 left!

0

7

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07325300

PLY- 4.50X1.12

$84.99

$

In Stock, only 2 left!

0

9

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 12

0

10

Gravely 00447100

CLUTCH, ELE-OGURA GT3.5-VP01R

$512.99

$

In Stock, only 2 left!

0

11

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

12

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 05900039

BLT-HEX .44-20X1.50 G5 YZ EP80
(Superseded to 05902004)

$6.49

$

In Stock, Qty 10

0

14

Gravely 00902500

ADHESIVE SEALANT (RED)

$

$

Not available

15

Gravely 03296051

WMT - CLUTCH ANCHOR - OGURA

$53.99

$

Usually ships in 4-12 days

0

16

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07025000

NIPPLE,PIPE .38X6.0 UNFIN STL

$

$

Not available

19

Gravely 03563600

PIPE CAP

$

$

Not available

20

Gravely 05971300

BLT, HEX M5-.8X8MM YWZC

$

$

Not available

21

Gravely 08824700

GASKET,EXHAUST

$23.99

$

In Stock, only 4 left!

0

22

Gravely 01058600

MANIFOLD - 27 HP KAWASAKI

$

$

Not available

23

Gravely 04940500

TUBE, MANIFOLD

$

$

Not available

24

Gravely 07067900

U-BOLT, 1/4-20 X 1 1/2"

$

$

Not available

25

Gravely 09065600

MUFFLER, PM-320

$

$

Not available

26

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 09066300

HEAT SHIELD

$

$

Not available

28

Gravely 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

$15.99

$

Usually ships in 4-12 days

0

29

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

30

Gravely 21536100

PLUG, SPARK

$10.99

$

In Stock, Qty 20+

0

31

Gravely 21545400

ELEMENT-OUTER - KAWASAKI

$36.99

$

In Stock, Qty 20+

0

32

Gravely 21545300

ELEMENT-INNER - KAWASAKI

$56.99

$

In Stock, only 1 left!

0

33

Gravely 03820900

RAIN CAP, AIR CLEANER (2.5")

$79.99

$

In Stock, only 2 left!

0

Gravely 09408700

CAP, AIR CLEANER INTAKE (2")

$58.99

$

In Stock, Qty 5

0

34

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 16

0

35

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$6.49

$

Usually ships in 4-12 days

0

37

Gravely 08905500

BUSH.,S.407X.625X.813 ST

$14.99

$

In Stock, only 1 left!

0

38

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 05900125

BLT-HEX.38-16X1.25FTHG5 EP30YZ
(Superseded to 05901507)

$2.99

$

In Stock, Qty 19

0

40

Gravely 06434200

WSHR-THRST 1.125X1.750X.1245

$21.99

$

Usually ships in 4-12 days

0

41

Gravely 06602600

KEY-SQ .25 X 2.50 X .25 SAE

$6.49

$

In Stock, only 2 left!

0

42

Gravely 06900339

CLAMP, HOSE 2.75 DIA WORM

$12.99

$

Usually ships in 4-12 days

0

43

Gravely 05931800

SCR-SKH M8 X 1.25X20

$2.99

$

Usually ships in 4-12 days

0
