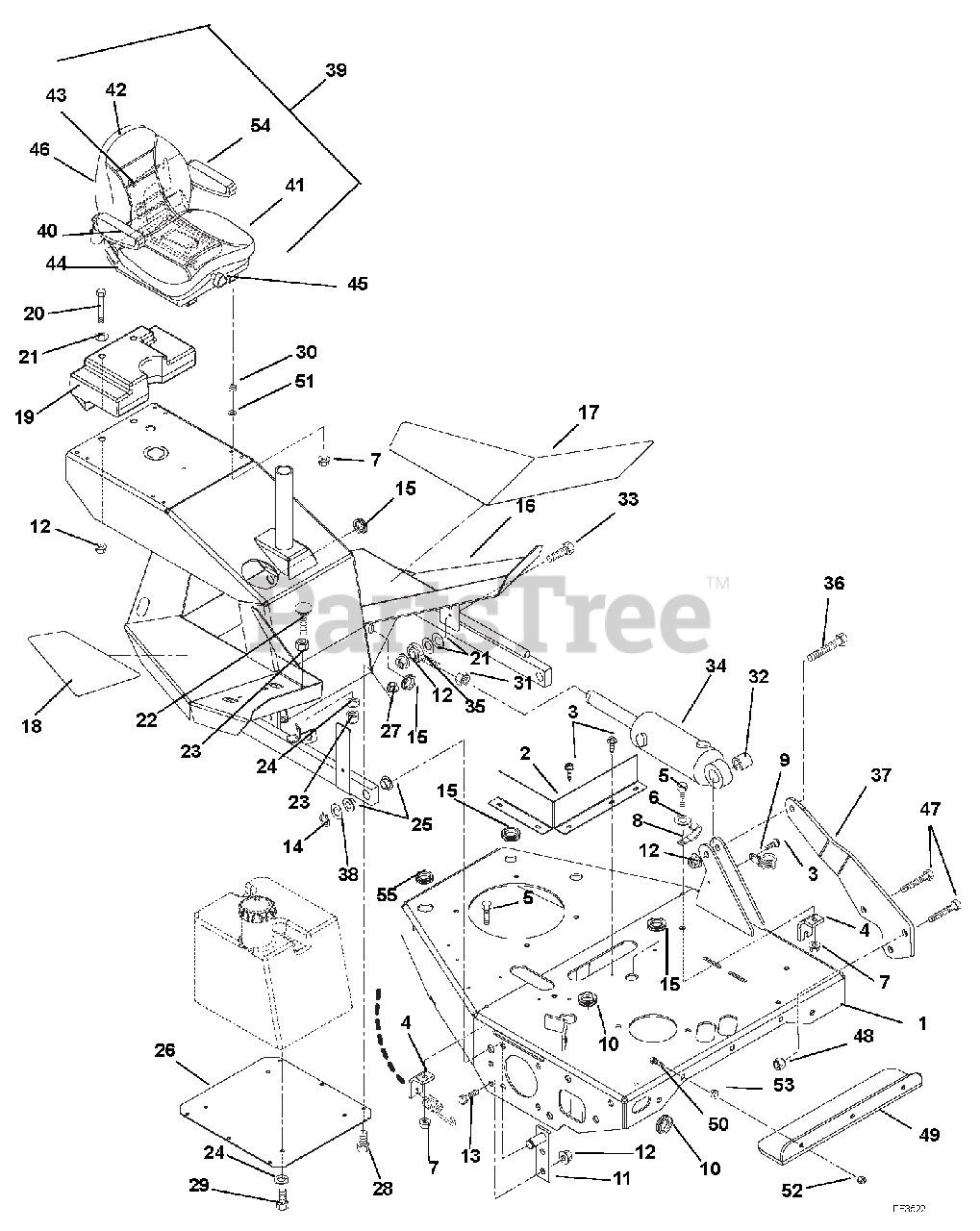

990023 (PM 320) - Gravely Pro-Master Zero-Turn Mower, 27hp Kawasaki (SN: 002500 & Above) Frame, Sulky Frame And Seat Parts Diagram

Pro-Master Zero-Turn Mower, 27hp Kawasaki

Frame, Sulky Frame And Seat Parts Diagram

  • Title

1

Gravely 03295453

WMT - MAIN FRAME - 320

$791.99

$

Usually ships in 4-12 days

0

2

Gravely 08897551

HEAT SHIELD

$46.99

$

Usually ships in 4-12 days

0

3

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 08968400

BRKT,CABLE

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 06917900

CLAMP, COUSHIONED STEEL REV

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 03928400

WMT-SULKY PIVOT

$63.99

$

Usually ships in 4-12 days

0

12

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

14

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, only 1 left!

0

15

Gravely 07530600

GRMT .75X1.06X1.38

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 09099953

WLDMT, SULKY

$

$

Not available

17

Gravely 04909900

PAD, FLOORBOARD, LH

$26.99

$

Usually ships in 4-12 days

0

18

Gravely 04910000

PAD, FLOORBOARD RH

$

$

Not available

19

Gravely 04912251

WEIGHT, REAR

$

$

Not available

20

Gravely 05961900

BLT-HEX .50-13X4.00 GR5 YWZC
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

23

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

24

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.49

$

In Stock, Qty 15

0

26

Gravely 04909453

PLATE, BOTTOM

$46.99

$

Usually ships in 4-12 days

0

27

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 05508900

BSHG-SLV .377X.624X.235

$9.99

$

In Stock, only 2 left!

0

31

Gravely 06539500

NUT-JAM .50-20 GR2 YWZC

$2.99

$

Usually ships in 4-12 days

0

32

Gravely 09215200

BUSHING, .516X1.000X1.050 LG

$36.99

$

Usually ships in 4-12 days

0

33

Gravely 05961000

BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.99

$

In Stock, only 2 left!

0

34

Gravely 04909800

CYLINDER, PLATFORM LIFT

$647.99

$

Usually ships in 4-12 days

0

35

Gravely 08959600

ROD END, 1/2 RH

$40.99

$

Usually ships in 4-12 days

0

36

Gravely 05953500

BLT-HEX .50-13X2.75 YZ GR8
(Superseded to 05901836)

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 04913153

SUPPORT, CYLINDER BRACE

$44.99

$

Usually ships in 4-12 days

0

38

Gravely 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

39

Gravely 03947200

SEAT-SUSP-LT GRY-SEAT BLT BUSH

$925.99

$

Usually ships in 4-12 days

0

40

Gravely 59210400

KIT-RH ARMREST ASSEMBLY REPLAC

$142.99

$

Usually ships in 4-12 days

0

41

Gravely 59208900

KIT-SEAT CUSHION-LIGHT GRAY

$263.99

$

In Stock, only 2 left!

0

42

Gravely 59208800

KIT-BACK CUSHION-LIGHT GRAY

$431.99

$

Usually ships in 4-12 days

0

43

Gravely 59207800

KIT-SPRING AND SADDLE

$186.99

$

Usually ships in 4-12 days

0

44

Gravely 59207900

KIT-SEAT SLIDE

$

$

Not available

45

Gravely 59208000

KIT-SEAT KNOB

$34.99

$

Usually ships in 4-12 days

0

46

Gravely 59208100

KIT-SEAT BACK PANEL

$179.99

$

Usually ships in 4-12 days

0

47

Gravely 05959300

BLT-HEX .62-11X1.75 GR5 YWZC

$

$

Not available

48

Gravely 06540700

NUT-LK-NYL .625-11 YWZC

$4.99

$

In Stock, Qty 20+

0

49

Gravely 04913253

GUARD, HOSE

$8.49

$

Usually ships in 4-12 days

0

50

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

51

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 9

0

52

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

53

Gravely 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 10

0

54

Gravely 59210500

KIT-LH ARMREST ASSEMBLY REPLAC

$142.99

$

Usually ships in 4-12 days

0

55

Gravely 07500036

GROMMET, 2.12" ID BUNA-N

$

$

Not available
