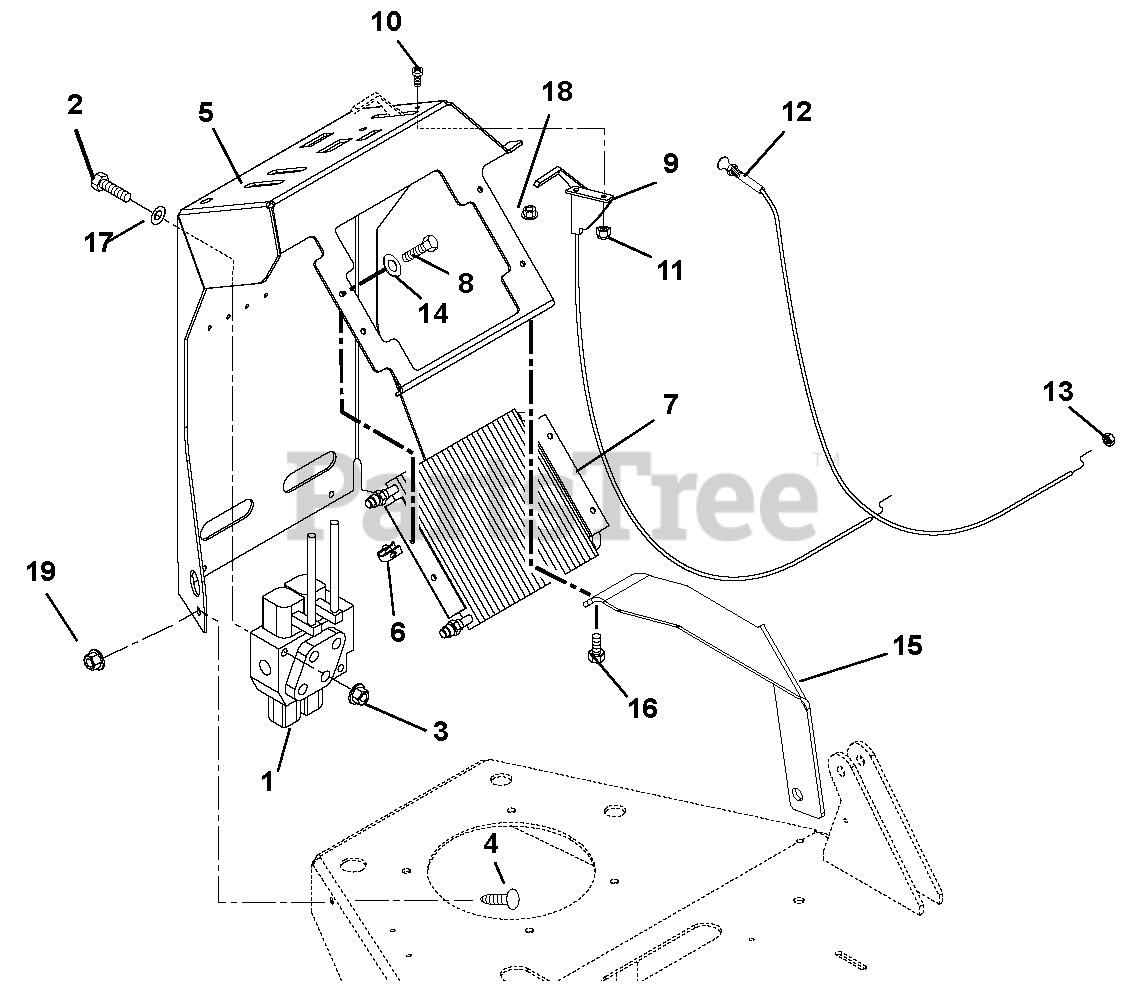

990024 (PM 320) - Gravely Pro-Master Zero-Turn Mower (SN: 000101 & Above) Control Panel, Hydraulic Oil Cooler and Valve Parts Diagram

Pro-Master Zero-Turn Mower

Control Panel, Hydraulic Oil Cooler and Valve Parts Diagram

  • Title

1

Gravely 09098800

Valve, 2 Spool

$452.99

$

Usually ships in 4-12 days

0

2

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

3

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5 YWZC
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

5

Gravely 03289153

Panel, Control

$170.99

$

Usually ships in 4-12 days

0

6

Gravely 07009000

Nut, Retainer .25-20 x .56

$1.49

$

In Stock, Qty 20+

0

7

Gravely 08856200

Cooler, Oil

$

$

Not available

8

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

9

Gravely 06900024

Cable, Control

$45.99

$

Usually ships in 4-12 days

0

10

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06536000

Nut, Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 3 left!

0

12

Gravely 06942300

Cable, Choke

$39.99

$

Usually ships in 4-12 days

0

13

Gravely 06534700

Nut, Jam .38-24
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

14

Gravely 06437300

Washer, Flat-Steel .28 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

15

Gravely 03290053

Brace, Instrument Panel-Left Hand

$

$

Not available

16

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

17

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 11

0

18

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

19

Gravely 06542000

Nut, Lock Top Flange .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 18

0
