990024 (PM 320) - Gravely Pro-Master Zero-Turn Mower (SN: 000101 & Above) Engine, Clutch, Fuel and Exhaust Parts Diagram

Pro-Master Zero-Turn Mower

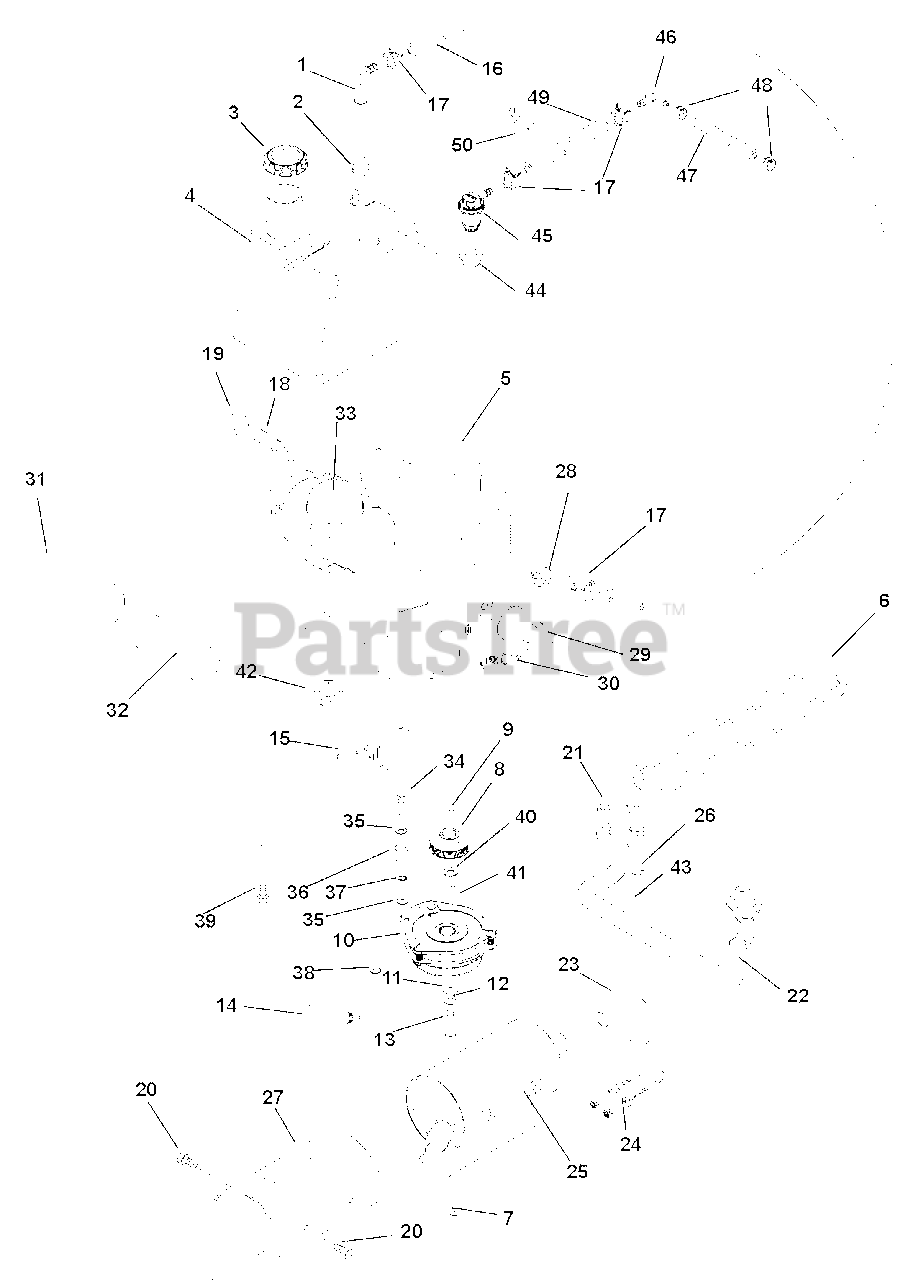

Engine, Clutch, Fuel and Exhaust Parts Diagram

  • Title

1

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$14.99

$

In Stock, Qty 9

0

2

Gravely 00387300

Grommet, Dapco Viton

$7.99

$

In Stock, Qty 10

0

3

Gravely 04237300

Cap, 3.50" Vent-in Ratchet, Fuel
(Superseded to 09190300)

$33.99

$

Usually ships in 4-12 days

0

4

Gravely 04245700

Tank, Fuel
(Superseded to 04341000)

$

$

Not available

5

Gravely 08200327

Engine, 27HP Kawasaki

$

$

Not available

16

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas

$0.99

$

In Stock, Qty 20+

0

6

Gravely 07224300

Belt, HA 59.80 Raw Laminated

$40.99

$

In Stock, only 1 left!

0

7

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07325300

Pulley, 4.46 Dia. x 1.12 Bore

$83.99

$

In Stock, only 2 left!

0

9

Gravely 06602200

Key, Square .25 x 1.00 x .25

$3.99

$

In Stock, Qty 10

0

10

Gravely 00447100

Clutch, Electric-OGURA GT3.5-VP01R

$685.99

$

In Stock, only 4 left!

0

11

Gravely 06443600

Washer, Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, Qty 20+

0

12

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

13

Gravely 05900039

Bolt, Hex .44-20 x 1.50 Grade 5 EP80
(Superseded to 05902004)

$5.99

$

In Stock, Qty 11

0

14

Gravely 00902500

LocTite™ 271 (Red)

Note: (Red)

$

$

Not available

15

Gravely 03296051

Anchor, Clutch

$51.99

$

Usually ships in 4-12 days

0

17

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 6

0

18

Gravely 07025000

Nipple, Pipe .38 x 6.00 Unfinished Steel

$

$

Not available

19

Gravely 03563600

Pipe Cap

$

$

Not available

20

Gravely 05971300

Bolt, Hex M5 –.8 x 8 mm

$

$

Not available

21

Gravely 08824700

Gasket, Exhaust

$10.99

$

Usually ships in 4-12 days

0

22

Gravely 01058600

Manifold, 27HP Kawasaki

$

$

Not available

23

Gravely 04940500

Tube, Manifold

$

$

Not available

24

Gravely 07067900

U-Bolt, 1/4-20 x 1.50

$

$

Not available

25

Gravely 09065600

Muffler (Includes 09066300 Heat Shield)

Note: (Includes 09066300 Heat Shield)

$

$

Not available

26

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 09066300

Heat Shield (Included with 09065600 Muffler)

Note: (Included with 09065600 Muffler)

$75.99

$

Usually ships in 4-12 days

0

28

Gravely 21538400

Fuel Filter
(Superseded to 21573800)

$12.99

$

In Stock, Qty 10

0

29

Gravely 21535800

Filter, Oil - Kawasaki
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

30

Gravely 21536100

Spark Plug

$3.49

$

In Stock, Qty 20+

0

31

Gravely 21548800

Element, Outer Primary

$27.99

$

In Stock, Qty 20+

0

32

Gravely 21548700

Element, Inner Safety

$27.99

$

In Stock, Qty 15

0

33

Gravely 09408700

Cap, 2" Air Cleaner Intake

$56.99

$

In Stock, only 1 left!

0

Gravely 03820900

CAP, 2.5" Air Cleaner Intake

$68.99

$

In Stock, only 2 left!

0

34

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

35

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 07500007

Bumper, Rubber .62 x 1.0 x .88 LG

$5.99

$

In Stock, Qty 8

0

37

Gravely 08905500

Bushing, S.407 x .625 x .813 Steel

$13.99

$

In Stock, only 1 left!

0

38

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

39

Gravely 05901507

Bolt, Hex .38-16 x 1.25 FTH Grade 5 EP30

$2.49

$

In Stock, Qty 13

0

40

Gravely 06434200

Washer, Thrust 1.125 x 1.750 x .1245

$20.99

$

Usually ships in 4-12 days

0

41

Gravely 06602600

Key, Square .25 x 2.50 x .25

$5.99

$

In Stock, Qty 7

0

42

Gravely 06900339

Clamp, Hose 2.75 Diameter Worm

$11.99

$

Usually ships in 4-12 days

0

43

Gravely 05931800

Screw, Socket Head M8 x 1.25 x 20

$2.49

$

Usually ships in 4-12 days

0

44

Gravely 04082700

Grommet, Remote Vent Nitrile

$3.99

$

In Stock, Qty 20+

0

45

Gravely 04068910

Valve, Combination
(Superseded to 05185600)

$13.99

$

In Stock, only 2 left!

0

46

Gravely 04097000

Fitting .18 x .25 90° Vacuum

$14.99

$

Usually ships in 4-12 days

0

47

Gravely 03375900

Hose .188 Low-Perm Bulk Gas

$3.49

$

Usually ships in 4-12 days

0

48

Gravely 04097700

Clamp, Hose Spring .188

$1.49

$

Usually ships in 4-12 days

0

49

Gravely 03278100

Hose, Low-Perm Gas .25

$0.99

$

In Stock, Qty 20+

0

50

Gravely 06909400

J-clamp

$3.49

$

In Stock, Qty 11

0
