990024 (PM 320) - Gravely Pro-Master Zero-Turn Mower (SN: 000101 & Above) Front Wheels, Motors and calipers Parts Diagram

Pro-Master Zero-Turn Mower

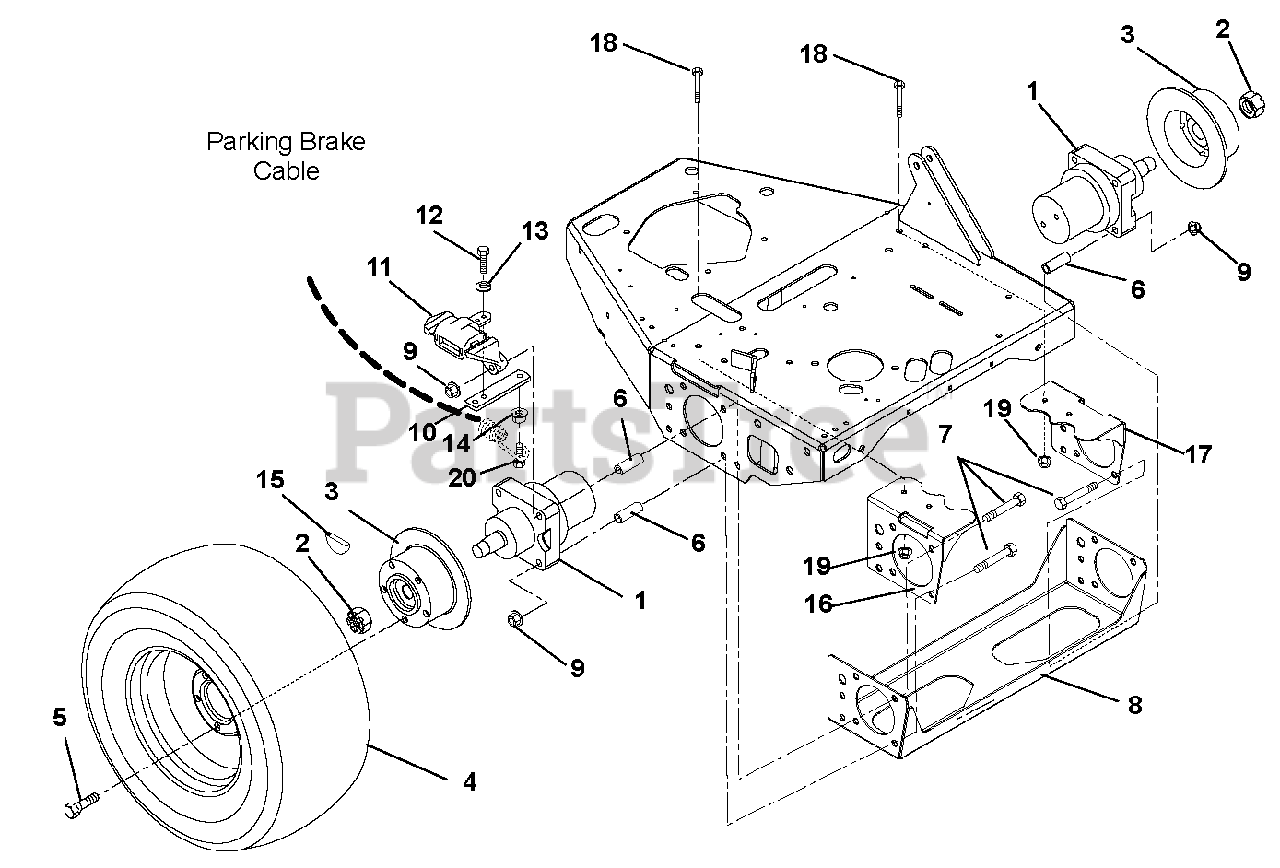

Front Wheels, Motors and calipers Parts Diagram

  • Title

1

Gravely 00668900

Motor, Hydraulic Wheel (see page 8)

Note: (see page 8)

$1905.99

$

Usually ships in 4-12 days

0

2

Gravely 06541900

Nut, Locking Jam Patch 1.00-20

$30.99

$

Usually ships in 4-12 days

0

3

Gravely 09247100

Hub and Disc

$297.99

$

In Stock, only 1 left!

0

4

Gravely 07100207

Tire/Wheel Assembly 24 x 11.50-12
(Superseded to 07101040)

$273.99

$

Usually ships in 4-12 days

0

Gravely 07100208

Tire, Turfmaster 24 x 11.50-12
(Superseded to 07101041)

$227.99

$

Usually ships in 4-12 days

0

5

Gravely 07000143

Bolt, Lug .50-20 x 1.38

$3.49

$

In Stock, Qty 20+

0

6

Gravely 05531400

Bushing, Sleeve .513 x .748 x 2.129

$13.99

$

Usually ships in 4-12 days

0

7

Gravely 05975400

Bolt, Hex .50-13 x 5.00 Grade 8

$5.99

$

In Stock, Qty 5

0

8

Gravely 03929051

Weldment, Wheel Support Bracket

$170.99

$

Usually ships in 4-12 days

0

9

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 03927900

Arm, Extension Parking Brake

$

$

Not available

11

Gravely 09243600

Caliper, Park Brake (Clockwise) RH

Note: (Clockwise) RH

$193.99

$

Usually ships in 4-12 days

0

11

Gravely 09243500

Caliper, Park Brake (Counterclockwise) LH

Note: (Counterclockwise) LH

$193.99

$

Usually ships in 4-12 days

0

12

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 10

0

13

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06530400

Nut, Spin Locking-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

15

Gravely 09200600

Pad, Disk Brake

$59.99

$

Usually ships in 4-12 days

0

16

Gravely 03927151

Weldment, Main Frame Brace RH

$73.99

$

Usually ships in 4-12 days

0

17

Gravely 03927851

Weldment, Main Frame Brace RH

$73.99

$

Usually ships in 4-12 days

0

18

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

19

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5 YWZ
(Superseded to 05901701)

$1.49

$

In Stock, only 4 left!

0
