990024 (PM 320) - Gravely Pro-Master Zero-Turn Mower (SN: 000101 & Above) Hyrdro_gear Pump Parts Diagram

Pro-Master Zero-Turn Mower

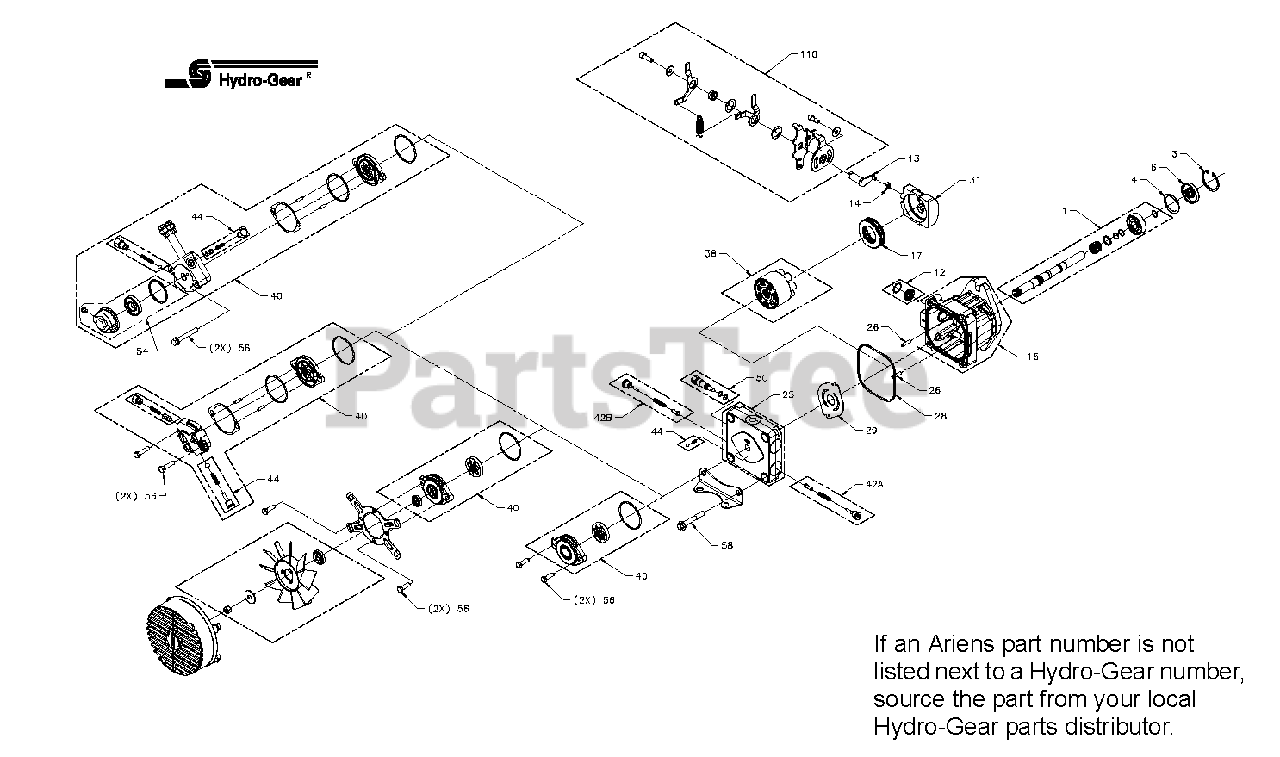

Hyrdro_gear Pump Parts Diagram

  • Title

1

Gravely 21543908

Kit, Pump Shaft

$209.99

$

Usually ships in 4-12 days

0

3

Gravely 21543962

Ring, Ret 47 Int

$4.49

$

Usually ships in 4-12 days

0

4

Gravely 21543961

Washer, 1.45 x 1.84 x .04

$

$

Not available

6

Gravely 21543796

Seal, Lip 17 x 47 x 8

$13.99

$

Usually ships in 4-12 days

0

NS

Gravely 21543936

Kit, Rtn

$84.99

$

In Stock, only 1 left!

0

12

Gravely 21543922

Kit, BDP-16A Trunnion Seal

$8.49

$

Usually ships in 4-12 days

0

13

Gravely 21543842

Arm, Trunnion

$

$

Not available

14

8610700

Guide, Slot

$

$

Not available

15

Gravely 21543943

Service Kit, Housing

$401.99

$

Usually ships in 4-12 days

0

17

Gravely 21543747

Bearing, Thrust Ball 42 x 68 x 16

$

$

Not available

25

Gravely 21543970

Kit, End Cap

$305.99

$

Usually ships in 4-12 days

0

26

Gravely 21543750

Pin, .219 x 1

$

$

Not available

28

Gravely 21543742

O-Ring, Sq .1 x (4.3 x 4.6)

Note: (4.3 x 4.6)

$7.49

$

Usually ships in 4-12 days

0

29

Gravely 21543852

Valve Plate

$

$

Not available

31

Gravely 21543729

Plate, Swash 21cc

$

$

Not available

38

Gravely 21543879

Kit, Motor Block

$103.99

$

Usually ships in 4-12 days

0

40

Gravely 21543895

Kit, Aux Pump

$465.99

$

Usually ships in 4-12 days

0

42

Gravely 21543923

Kit, Shock Valve 200 Bar

$

$

Not available

44

Gravely 21543894

Kit, Chrg Relief Valve

$

$

Not available

50

Gravely 21543979

Kit, Bypass Valve

$29.99

$

Usually ships in 4-12 days

0

54

Gravely 59210300

Auxilarty Filter Kit

$

$

Not available

56

Gravely 21543784

HFHCS 5/16-18 x 2.5

$

$

Not available

58

Gravely 21543942

Kit, Bolt

$

$

Not available

110

Kit, Return

Kit, Return

$

$

Not available
