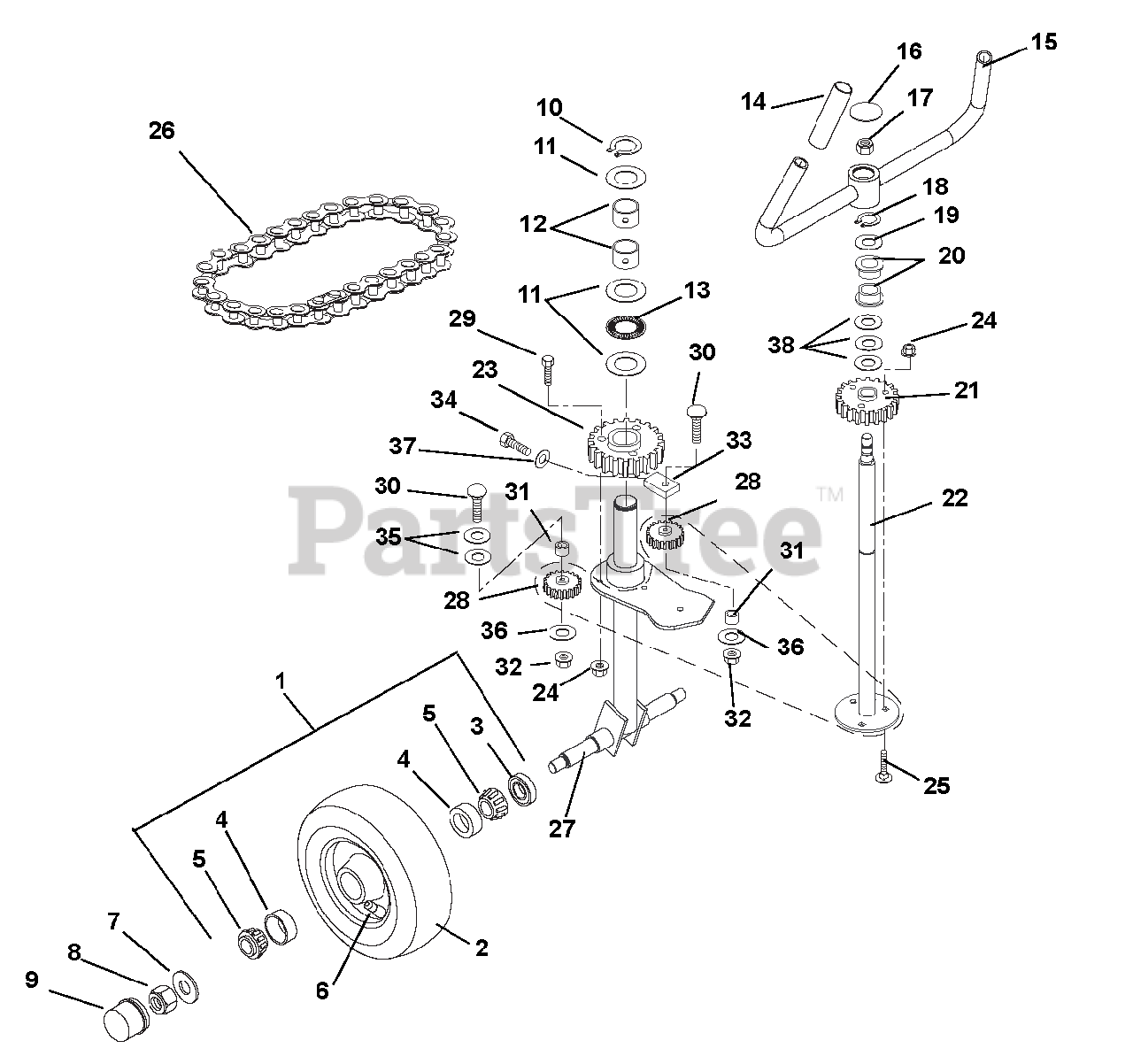

990024 (PM 320) - Gravely Pro-Master Zero-Turn Mower (SN: 000101 & Above) Steering, and Rear Wheels Parts Diagram

Pro-Master Zero-Turn Mower

Steering, and Rear Wheels Parts Diagram

  • Title

1

Gravely 07100220

TIRE/WHEEL ASSY, 16X6.50-8

Note: (Contains Items 2 - 5)

$

$

Not available

2

Gravely 07100221

TIRE, 16X6.50-8

$

$

Not available

3

Gravely 00092498

SEAL

$

$

Not available

4

Gravely 05407000

BRG-CUP1.980X.420

$18.99

$

In Stock, Qty 20+

0

5

Gravely 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

6

Gravely 07520000

VALVE STEM ASS'Y

$2.99

$

In Stock, only 1 left!

0

7

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06535400

NUT-LK-CTR .75-10 YWZC

$6.49

$

Usually ships in 4-12 days

0

9

Gravely 20655400

CAP,DUST

$10.99

$

In Stock, Qty 20+

0

10

Gravely 05715500

RG-RTNG-EXT 1.500X1.38

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 06432200

WSHR-THRST 1.50X2.18X.063

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 05516500

BRG-1.000X1.135X1.002

$

$

Not available

13

Gravely 05424700

BRG-N-THRUST; 1.50X2.187X.0781

$

$

Not available

14

Gravely 04910200

GRIP

$10.99

$

Usually ships in 4-12 days

0

15

Gravely 04910151

WLDMT, HANDLEBAR

$176.99

$

Usually ships in 4-12 days

0

16

Gravely 07528400

HOLE PLUG 1.375

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 06530300

NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$4.99

$

In Stock, Qty 8

0

18

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$3.49

$

In Stock, Qty 9

0

19

Gravely 06426500

WSHR-THRST 1.55X1.002X.093

$25.99

$

In Stock, only 2 left!

0

20

Gravely 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 20+

0

21

Gravely 00176700

SPROCKET, 23 TOOTH #40

$

$

Not available

22

Gravely 04909700

WLDMT, STEERING SHAFT

$

$

Not available

23

Gravely 00176600

SPROCKET, 28 TOOTH #40

$

$

Not available

24

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

26

Gravely 00185600

CHAIN, #40X125 PITCHES (62.5")

Note: (62.5")

$43.99

$

Usually ships in 4-12 days

0

27

Gravely 09098651

WMT, CASTER WHEEL

$

$

Not available

28

Gravely 00185400

SPROCKET, #40 IDLER

$

$

Not available

29

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

30

Gravely 06213400

BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$4.99

$

In Stock, Qty 11

0

31

Gravely 00516100

SPACER .406X.625X.656

$22.99

$

Usually ships in 4-12 days

0

32

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 09099400

PLATE, IDLER ADJUSTMENT

$

$

Not available

34

Gravely 05977400

BLT, .31-24X1.50 GR8 YWZC FTD

$

$

Not available

35

Gravely 06309100

WSHR-FL-STL.406X1.125X.25 YWZC

$

$

Not available

36

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 20+

0

37

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 06445300

WSHR-FL-STL 1.12X1.500X.092 YZ

$2.99

$

Usually ships in 4-12 days

0
