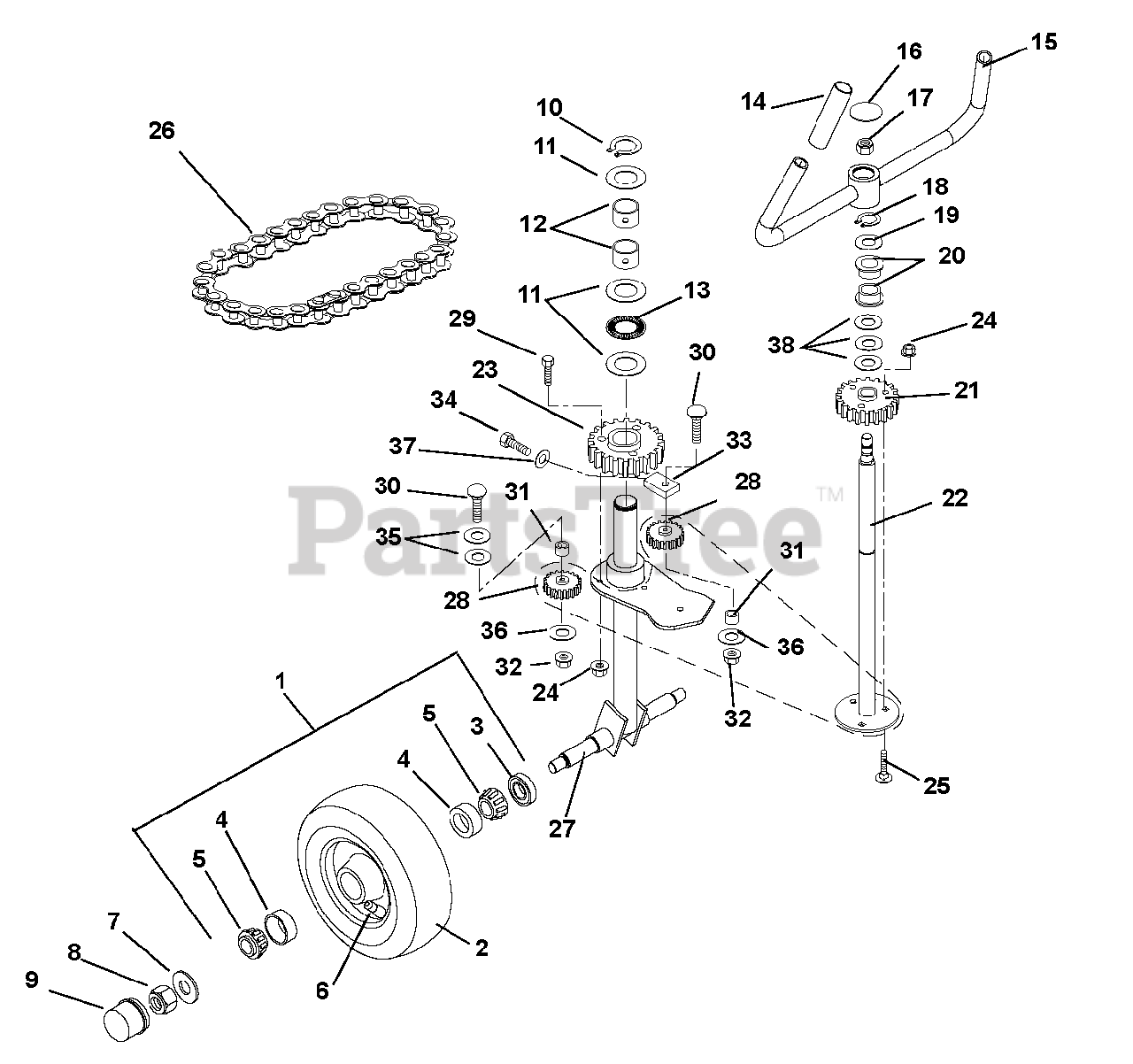

990025 (PM 3084) - Gravely Pro-Master Zero-Turn Mower (SN: 000101 & Above) Steering, and Rear Wheels Parts Diagram

Pro-Master Zero-Turn Mower

Steering, and Rear Wheels Parts Diagram

  • Title

1

Gravely 07100220

Tire/Wheel Assembly, 16x6.50-8 (Contains Items 2 – 5)

Note: (Contains Items 2 – 5)

$

$

Not available

2

Gravely 07100221

Tire, 16 x 6.5-8

$

$

Not available

3

Gravely 00092498

Seal

$

$

Not available

4

Gravely 05407000

Bearing, Cup 1.980 x 4.20

$17.99

$

In Stock, Qty 11

0

5

Gravely 69000300

Bearing, Cone with Grease
(Superseded to 05406900)

$18.99

$

In Stock, only 3 left!

0

6

Gravely 07520000

Valve Stem Assembly

$2.49

$

In Stock, Qty 7

0

7

Gravely 06439000

Washer, Flat Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 13

0

8

Gravely 06535400

Nut, Locking Center .75-10

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 20655400

Cap, Dust

$9.49

$

In Stock, Qty 16

0

10

Gravely 05715500

Ring, Retaining External 1.50 x 1.38

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06432200

Washer, Thrust 1.502 x 2.18 x .063

$13.99

$

In Stock, only 1 left!

0

12

Gravely 05516500

Bearing, 1.00 x 1.135 x 1.002

$41.99

$

Usually ships in 4-12 days

0

13

Gravely 05424700

Bearing, Needle Thrust 1.50 x 2.187 x .078

$20.99

$

Usually ships in 4-12 days

0

14

Gravely 04910200

Grip

$10.99

$

In Stock, Qty 20+

0

15

Gravely 04910151

Weldment, Handlebar

$173.99

$

Usually ships in 4-12 days

0

16

Gravely 07528400

Hole Plug 1.38

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 06530300

Nut, Locking Nylon .625-18
(Superseded to 06500936)

$3.99

$

In Stock, Qty 11

0

18

Gravely 05707300

Ring, Retaining External .906 x .078

$2.99

$

In Stock, only 2 left!

0

19

Gravely 06426500

Washer, Thrust 1.55 x 1.002 x .093

$18.99

$

In Stock, only 2 left!

0

20

Gravely 05520100

Bushing, Flange 1.02 x 1.385 x .75 x 1.75

$10.99

$

In Stock, Qty 20+

0

21

Gravely 00176700

Sprocket, 23 Tooth #40

$200.99

$

Usually ships in 4-12 days

0

22

Gravely 04909700

Weldment, Steering Shaft

$

$

Not available

23

Gravely 00176600

Sprocket, 28 Tooth #40

$261.99

$

Usually ships in 4-12 days

0

24

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 9

0

26

Gravely 00185600

Chain, #40 x 125 Pitches (62.5")

Note: (62.5")

$28.99

$

Usually ships in 4-12 days

0

27

Gravely 09098651

Weldment, Caster Wheel

$

$

Not available

28

Gravely 00185400

Sprocket, #40 Idler

$

$

Not available

29

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

30

Gravely 06213400

Bolt, Round Head Square Neck .38-16 x 2.25 Grade 5
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

31

Gravely 00516100

Spacer .406 x .625 x .656

$21.99

$

Usually ships in 4-12 days

0

32

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 09099400

Plate, Idler Adjustment

$

$

Not available

34

Gravely 05977400

Bolt, .31-24 x 1.50 Grade 8

$

$

Not available

35

Gravely 06309100

Washer, Flat-Steel .406 x 1.125 x .25

$

$

Not available

36

Gravely 06442400

Washer, Flat-Steel .406 x 1.375 x .135
(Superseded to 06401121)

$5.99

$

In Stock, Qty 5

0

37

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 11

0

38

Gravely 06445300

Washer, Flat-Steel 1.12 x 1.500 x .092

$2.99

$

Usually ships in 4-12 days

0
