990025 (PM 3084) - Gravely Pro-Master Zero-Turn Mower (SN: 000101 & Above) Transmission, Direction Control and Idler Parts Diagram

Pro-Master Zero-Turn Mower

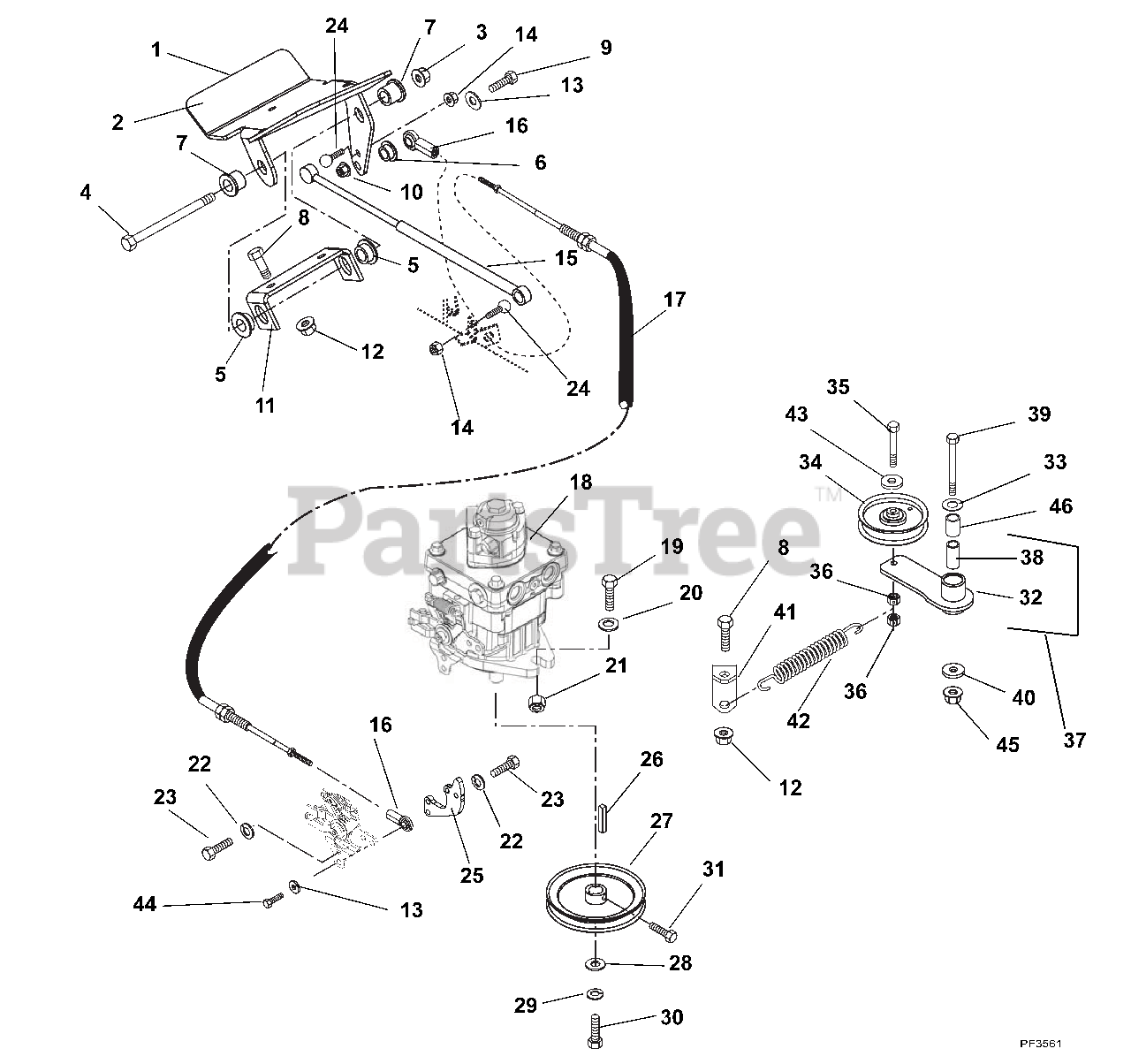

Transmission, Direction Control and Idler Parts Diagram

  • Title

1

Gravely 04909653

PEDAL, DIRECTION CONTROL

$

$

Not available

2

Gravely 08749700

PAD,FOOT CLUTCH PEDAL

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

5

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.49

$

In Stock, Qty 15

0

6

Gravely 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 1 left!

0

7

Gravely 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.99

$

In Stock, Qty 20+

0

8

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

10

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

11

Gravely 04909553

BRKT, CONTROL PEDAL

$

$

Not available

12

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 09258900

DAMPENER, CONTROL

$76.99

$

In Stock, only 3 left!

0

16

Gravely 08971800

ROD END, 1/4 RH - FEMALE

$20.99

$

Usually ships in 4-12 days

0

17

Gravely 06947100

CABLE, FWD-REV CONTROL

$184.99

$

Usually ships in 4-12 days

0

18

Gravely 00358600

PUMP, BI-DIRECTIONAL RTN

Note: (Bi-Directional RTN) (see page 17)

$1375.99

$

Usually ships in 4-12 days

0

19

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

20

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05947200

BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.99

$

In Stock, only 2 left!

0

24

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 13

0

25

Gravely 01920600

PLATE, 320 RTN/CAM

$92.99

$

Usually ships in 4-12 days

0

26

Gravely 06611300

KEY, SQ 5 X 5 X 30MM PLAIN

$2.99

$

In Stock, Qty 6

0

27

Gravely 07326600

SHEAVE, PUMP 4.50 X .67

$74.99

$

In Stock, only 2 left!

0

28

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

29

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

30

Gravely 05900017

BLT-HEX M6X1.0X12 YZ EP30

$6.99

$

Usually ships in 4-12 days

0

31

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

32

Gravely 03774151

WMT, IDLER ARM - BLACK

$52.99

$

In Stock, Qty 12

0

33

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

34

Gravely 07327600

V-IDLER, 4.00X.38

$39.99

$

In Stock, Qty 20+

0

35

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

36

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 03796400

ASM, IDLER ARM (DECK)

$64.99

$

In Stock, Qty 12

0

38

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$11.99

$

In Stock, Qty 20+

0

39

Gravely 05961900

BLT-HEX .50-13X4.00 GR5 YWZC
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

40

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

41

Gravely 09231100

ANCHOR - SPRING - IDLER

$23.99

$

Usually ships in 4-12 days

0

42

Gravely 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

43

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

45

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

46

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0
