990041 - Simplicity 24" Walk-Behind Reel Mower Reel Mower Group - 24" (3564I01) Parts Diagram

24" Walk-Behind Reel Mower

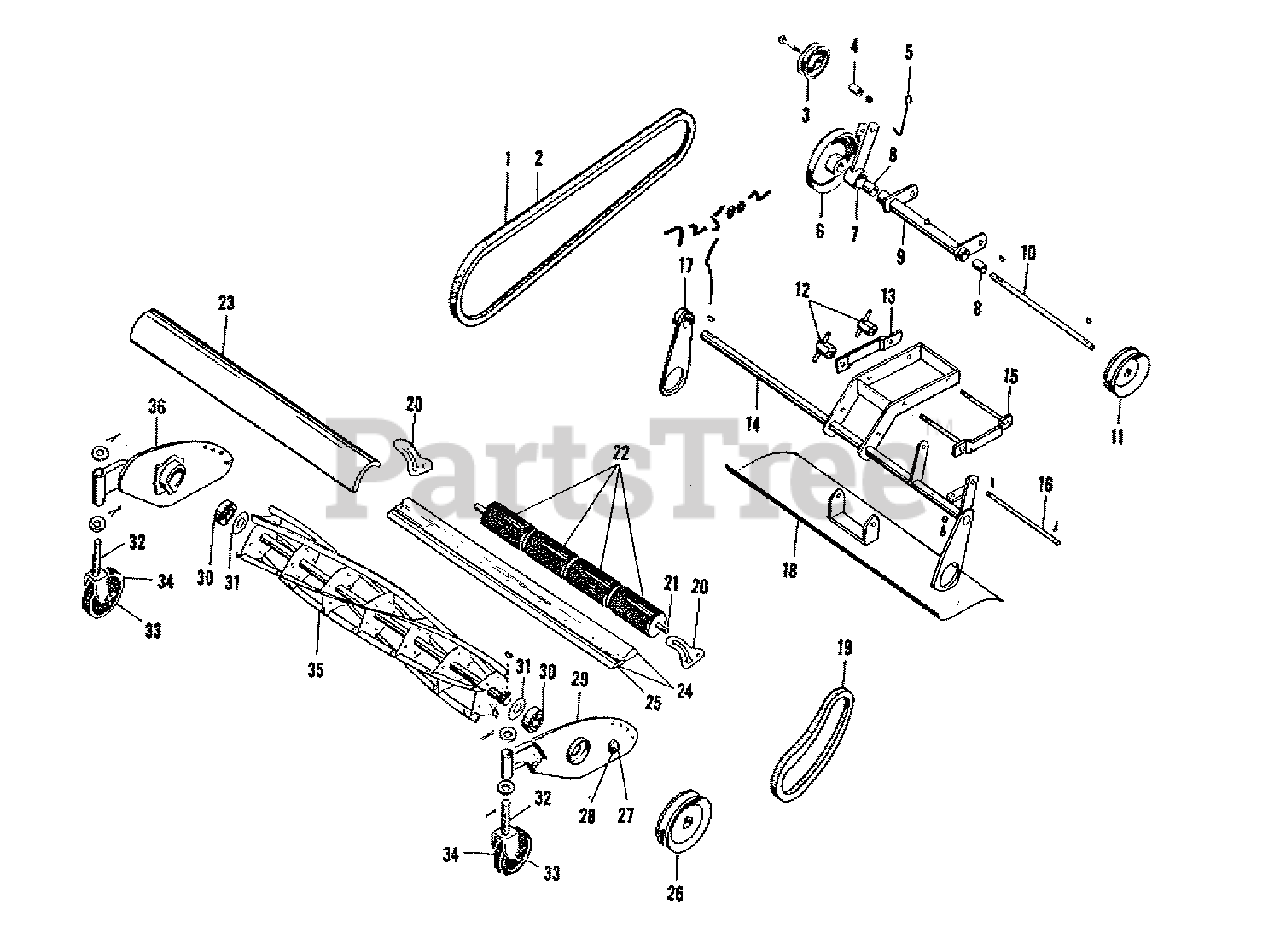

Reel Mower Group - 24" (3564I01) Parts Diagram

  • Title

1

Simplicity 111068

BELT, 34" For Models LB & FB

$

$

Not available

2

Simplicity 8021071

BELT, 39" For Model VA

$

$

Not available

3

Simplicity 2156124SM

IDLER PULLEY

$

$

Not available

4

Simplicity 1729274SM

INNER BEARIG RACE

$13.99

$

Usually ships in 2-12 days

0

5

Simplicity 8161158

BELT STOP

$

$

Not available

6

Simplicity 8111013

DRIVE PULLEY

$

$

Not available

7

Simplicity 8171516

IDLER LEVER ASSEMBLY

$

$

Not available

8

Simplicity 8061052

PULLEY SHAFT BEARING'

$

$

Not available

9

Simplicity 8172566

BEARING HOUSING ASSEMBLY

$

$

Not available

10

Simplicity 8171052

PULLEY SHAFT

$

$

Not available

11

Simplicity 109039

SHEAVE

$

$

Not available

12

Simplicity 8161041

WING NUT COMPLETE

$0.99

$

Usually ships in 2-12 days

0

13

Simplicity 103001

HITCH SIDE PLATE

$

$

Not available

14

Simplicity 8173514

PUSH ARM ASSEMBLY

$

$

Not available

15

Simplicity 8162501

HITCH CLAMP ASSEMBLY

$

$

Not available

16

Simplicity 8171053

BEARING HOUSING ARM SHAFT

$

$

Not available

17

Simplicity 8171515

PUSH BAR ASSEMBLY, R.H.

$

$

Not available

18

Simplicity 8173513

GRASS FENDER ASSEMBLY

$

$

Not available

19

Simplicity 2158573SM

31" V BELT

$20.99

$

Usually ships in 2-12 days

0

20

Simplicity LP-475

ROLLER BRACKET

$

$

Not available

21

Simplicity LP412

ROLLER SHAFT

$

$

Not available

22

Simplicity LP411

ROLLER (Per Section - 4 required)

$

$

Not available

23

Simplicity LPA473

BRUSYH BAR

$

$

Not available

24

Simplicity LPA406

CUTTER BAR COMPLETE w/BLADE

$

$

Not available

25

Simplicity LP434

CUTTER BAR BLADE w/RIVETS

$

$

Not available

26

Simplicity 109021

SHEAVE - REEL

$

$

Not available

27

Simplicity L

ADJUSTING CAM

$

$

Not available

28

Simplicity F5-350

CAPSCREW, Hex, Head 3/8-24 x 7/8

$

$

Not available

29

Simplicity LPA517

SIDE FRAME ASSEMBLY, L.H.

$

$

Not available

30

Simplicity LP-215-7

BALL BEARING

$

$

Not available

31

Simplicity LP469

REEL BEARING WASHER

$

$

Not available

32

Simplicity LPA512-1

CASTER YOKE ASSEMBLY

$

$

Not available

33

Simplicity LP-513

CASTER AXLE

$

$

Not available

34

Simplicity LP-512

CASTER WHEEL w/BEARINGS

$

$

Not available

35

Simplicity LPA514

REEL ASSEMBLY L.H. w/BEARING

$

$

Not available

36

Simplicity LPA516

SIDE FRAME ASSEMBLY R.H.

$

$

Not available
