990058 - Simplicity 30" Walk-Behind Reel Mower Reel Mower Group - 30" (3565I02) Parts Diagram

30" Walk-Behind Reel Mower

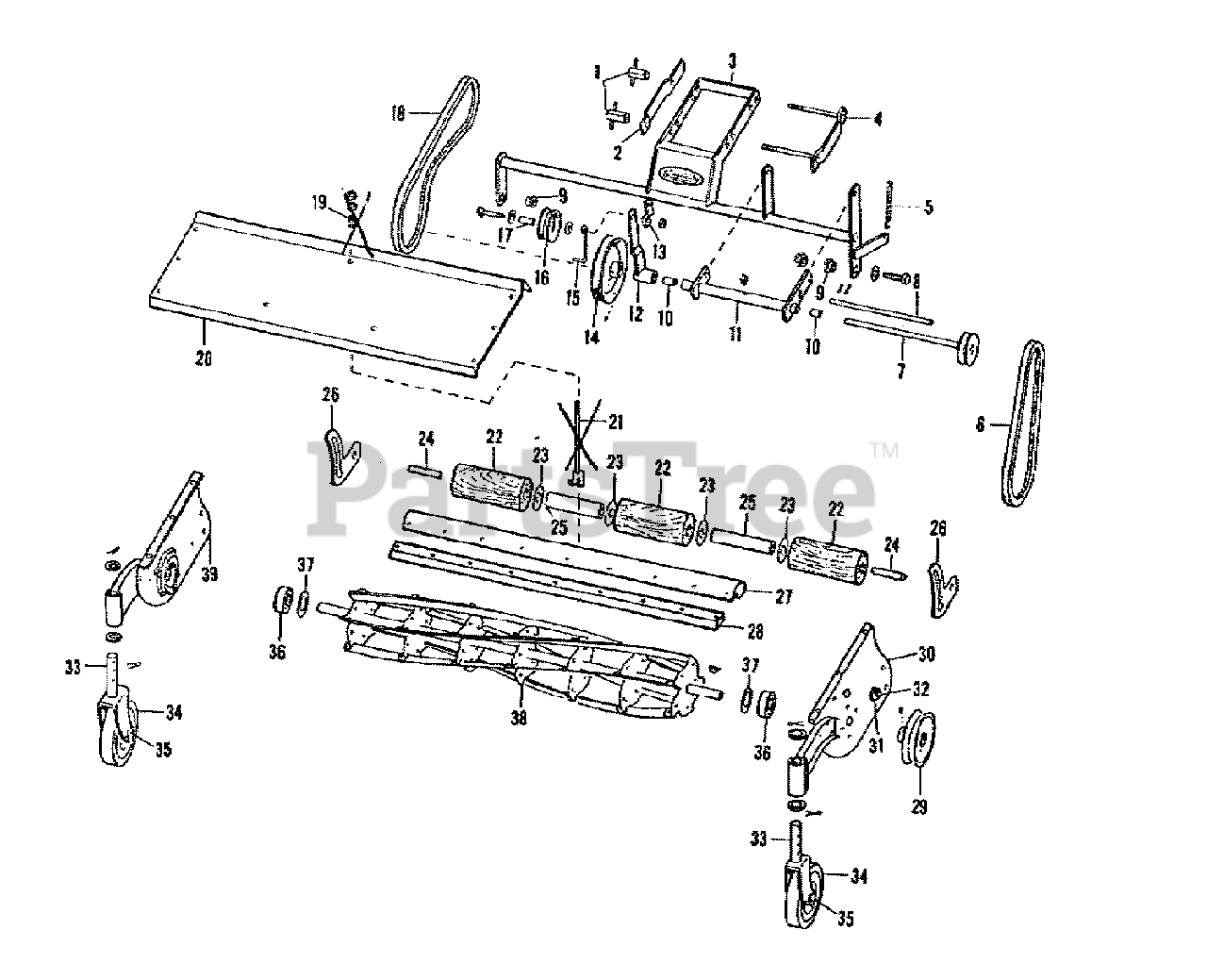

Reel Mower Group - 30" (3565I02) Parts Diagram

  • Title

1

Simplicity 8161041

T-NUT, Complete

$0.99

$

Usually ships in 2-12 days

0

2

Simplicity 103001

PLATE, Hitch Side

$

$

Not available

3

Simplicity 109007

ARM ASSEMBLY, Push

$

$

Not available

4

Simplicity 8162501

CLAMP ASSEMBLY, Hitch

$

$

Not available

5

Simplicity 8111047

SPRING

$

$

Not available

6

Simplicity 109024

"V" Belt, Reel, 30" Long

$

$

Not available

7

Simplicity 109016

SHAFT ASSEMBLY, Pulley

$

$

Not available

8

Simplicity 109022

ROD, Pivot

$

$

Not available

9

Simplicity 109023

BUSHING

$

$

Not available

10

Simplicity 8261052

BUSHING

$

$

Not available

11

Simplicity 109013

HOUSING ASSEMLBY, Brg.

$

$

Not available

12

Simplicity 109019

LEVER ASSEMBLY, Idler

$

$

Not available

13

Simplicity 109030

BRACKET, Lever

$

$

Not available

14

Simplicity 8111013

SHEAVE

$

$

Not available

15

Simplicity 8161158

STOP, Belt

$

$

Not available

16

Simplicity 2156124SM

PULLEY ASSEMBLY, Idler

$

$

Not available

17

Simplicity 1729274SM

RACE, Inner Brg.

$13.99

$

Usually ships in 2-12 days

0

18

Simplicity 1664457SM

V-BELT, 40"

$28.99

$

Usually ships in 2-12 days

0

19

SPRING

$

$

Not available

20

Simplicity 109006

DECK

$

$

Not available

21

HOOK ASSEMBLY, Cutter Bar

$

$

Not available

22

ROLLER (3 Required)

$

$

Not available

23

WASHER, Roller

$

$

Not available

24

ROLLER, Shaft

$

$

Not available

25

SPACER, Roller

$

$

Not available

26

BRACKET, Roller

$

$

Not available

27

CUTTER, Bar

$

$

Not available

28

CUTTER BAR BLADE, W/ Rivets

$

$

Not available

29

SHEAVE, Reel

$

$

Not available

30

Simplicity 10647

FRAME, Side, L.H.

$

$

Not available

31

Simplicity 44114

ADJUSTING CAM

$

$

Not available

32

CAP SCREW, Hex, Head, 3/8-24 x 7/8

$

$

Not available

33

Simplicity 20785

CASTER YOKE ASSEMBLY
(Superseded to 5020785)

$29.99

$

In Stock, Qty 12

0

34

CASTER, Wheel w/ Bearings

$

$

Not available

35

CASTER, Axle

$

$

Not available

36

Simplicity 20257

BALL, Bearing

$13.99

$

Usually ships in 2-12 days

0

37

REEL, Bearing Washer

$

$

Not available

38

Simplicity 10515

REEL ASSEMBLY, 30"

$

$

Not available

39

Simplicity 10648

FRAME, Side, R.H.

$

$

Not available
