990073 - Simplicity Rotary Tiller REPAIR PARTS LIST FOR ROTICUL Parts Diagram

Rotary Tiller

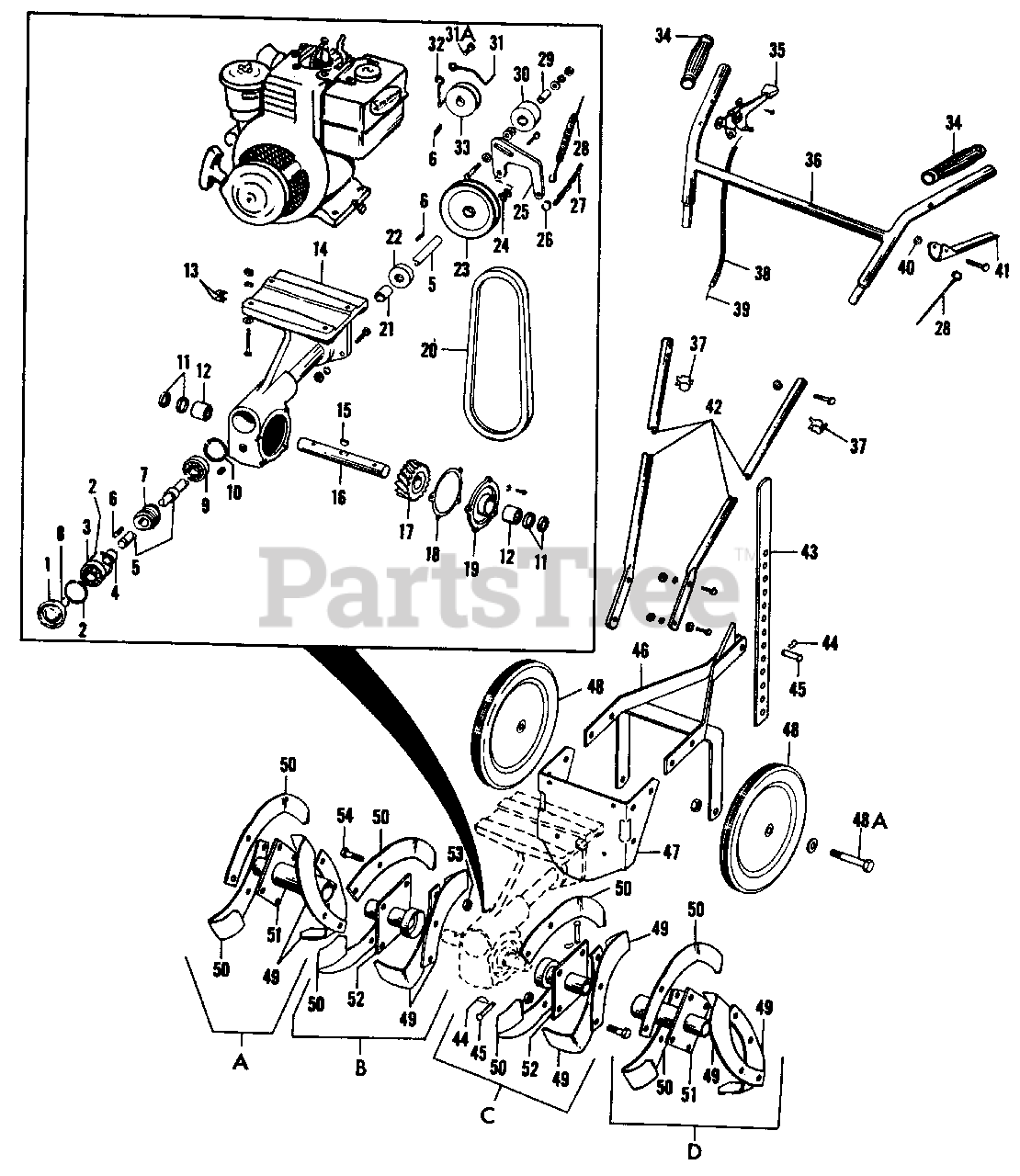

REPAIR PARTS LIST FOR ROTICUL Parts Diagram

  • Title

1

Simplicity 118005

Cup

$

$

Not available

2

Simplicity 1180-61

Retaining Ring

$

$

Not available

3

Simplicity 2118011SM

Ball Bearing

$

$

Not available

4

Simplicity 1180-60

Spacer

$

$

Not available

5

Simplicity 118063

Worm Shaft Assembly

$

$

Not available

6

Simplicity G-A81

Key

$

$

Not available

7

Simplicity 118016

Worm

$

$

Not available

8

Simplicity 118043

Retaining Ring

$

$

Not available

9

Simplicity 118017

Ball Bearing

$

$

Not available

10

Simplicity 118058

Retaining Ring

$

$

Not available

11

Simplicity 2118019SM

Oil Seal

$14.99

$

Usually ships in 2-12 days

0

12

Simplicity 2118020SM

Needle Bearing

$31.99

$

Usually ships in 2-12 days

0

13

Simplicity 108076

Shims

$

$

Not available

14

Simplicity 118009

Worm Drive Housing

$

$

Not available

15

1/4 X 3/4 Woodruff Key. # 91

$

$

Not available

16

Simplicity 118021

Worm Gear Shaft

$

$

Not available

17

Simplicity 2118022SM

Worm Gear

$286.99

$

Usually ships in 2-12 days

0

18

Simplicity 2118024SM

Gasket

$12.99

$

In Stock, only 1 left!

0

19

Simplicity 118023

Cover

$

$

Not available

20

Simplicity SS-A101

"V" Belt

$

$

Not available

21

Simplicity 118025

Bushing

$

$

Not available

22

Simplicity G-A53

Oil Sea

$

$

Not available

23

Simplicity 118028

Worm Pulley

$

$

Not available

24

Full Lock Nut. 5/16-18 NC

$

$

Not available

25

Simplicity 118006

Idler Lever

$

$

Not available

26

Simplicity 153125

Retaining Ring

$

$

Not available

27

Simplicity 118057

Chain

$

$

Not available

28

Simplicity 118038

Lever Clutch Spring

$

$

Not available

29

Simplicity S2-A20

Bushing

$

$

Not available

30

Simplicity 101002

Idler Pulley Assembly

$

$

Not available

31

Simplicity 118037

Belt Stop

$

$

Not available

31A

Hex Head Cap Screw 1/2"-20 x 3/4"

$

$

Not available

32

Simplicity 118036

Belt Stop

$

$

Not available

33

Simplicity 2118027SM

Engine Pulley

$50.99

$

Usually ships in 2-12 days

0

34

Simplicity 2153043

Handle Grip

$

$

Not available

35

Simplicity 118044

Throttle Lever Control

$

$

Not available

36

Simplicity 118031

Upper Handle Assembly

$

$

Not available

37

Simplicity G-A108

Cable Clip

$

$

Not available

38

Simplicity 118040

Throttle Cable

$

$

Not available

39

Simplicity 118041

Throttle Wire

$

$

Not available

40

Locknut 1/4-20

$

$

Not available

41

Simplicity 1180-56

Clutch Grip

$

$

Not available

42

Simplicity 118035

Lower Handle

$

$

Not available

43

Simplicity 118042

Depth Bar

$

$

Not available

44

Simplicity S1-A45A

Spring Clip

$

$

Not available

45

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

46

Simplicity 118029

Rear Frame Assembly

$

$

Not available

47

Simplicity 118004

Bracket

$

$

Not available

48

Simplicity 118030

Wheel and Tire Assembly

$

$

Not available

48A

Cap Screw 1/2"-13 x 3"

$

$

Not available

49

Simplicity R-B2

R.H. Tine Blade

$

$

Not available

50

Simplicity R-B1

L. H. Tine Blade

$

$

Not available

51

Simplicity 118046

Outer Tine Plate Assembly

$

$

Not available

52

Simplicity 118050

Inner Tine Plate Assembly

$

$

Not available

53

Full Lock Nut, 7/16-20 NF

$

$

Not available

54

Cap Screw, 7/16-20 x 1 1/4"

$

$

Not available

54

Simplicity 2118065SM

OIL, Worm Gear, 1 Qt Worm Gear Oil

$11.99

$

Usually ships in 2-12 days

0
