990086 - Simplicity Wonderboy Rear-Engine Riding Mower POWER TAKE-OFF DRIVE AND ENGINE PULLEY Parts Diagram

Wonderboy Rear-Engine Riding Mower

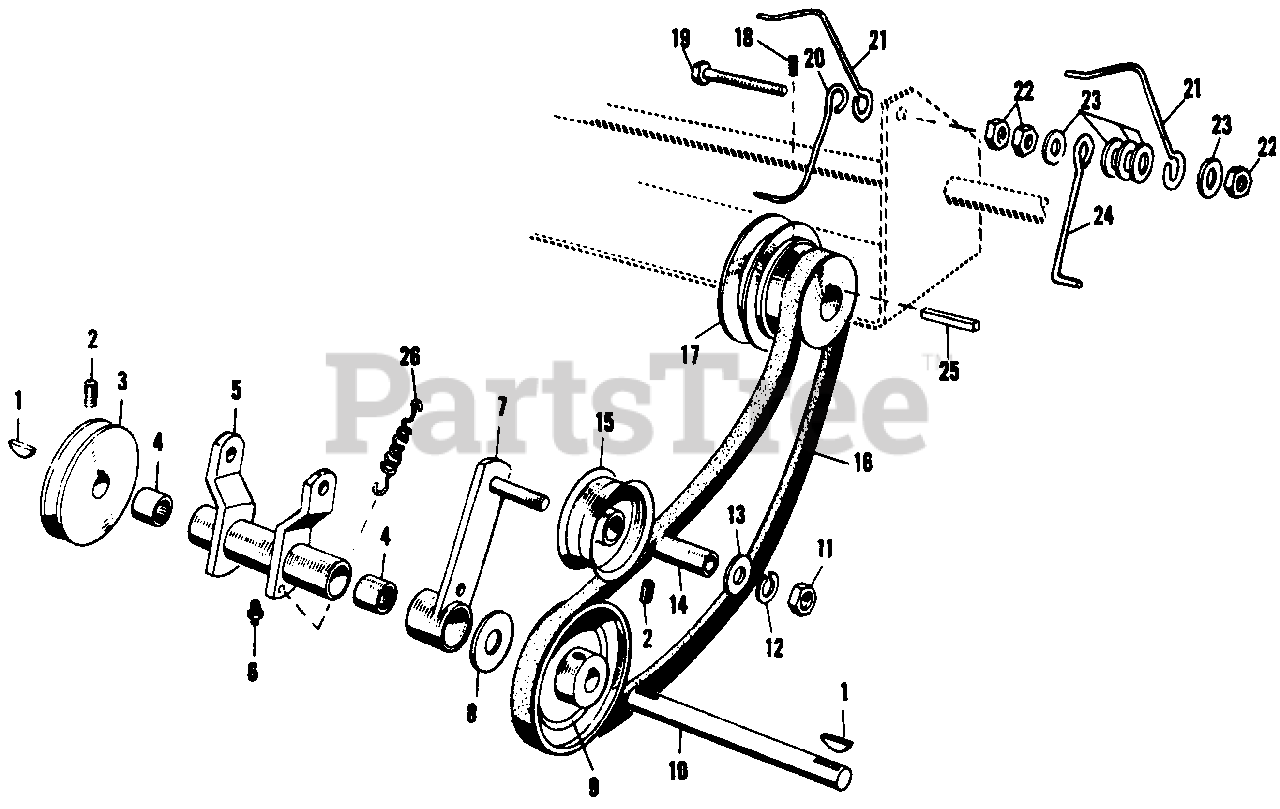

POWER TAKE-OFF DRIVE AND ENGINE PULLEY Parts Diagram

  • Title

1

Key, Woodruff, 3/16" x 3/4"

$

$

Not available

2

Screw, Set, 5/16"-18 x 1/2"

$

$

Not available

3

Simplicity 108025

Puller

$

$

Not available

4

Simplicity 2108054

Bearing, Needle

$

$

Not available

5

Simplicity 121045

Bracket Assembly, Drive

$

$

Not available

6

Grease Fitting, #1641

$

$

Not available

7

Simplicity 121049

Lever, Idler Assembly

$

$

Not available

8

Simplicity 2116001

Washer

$

$

Not available

9

Simplicity 109052

Pulley

$

$

Not available

10

Simplicity 108014

Shaft, Idler

$

$

Not available

11

Nut, Hex Full, 3/8"-16

$

$

Not available

12

Washer, Lock, 3/8"

$

$

Not available

13

Washer, Plain, 3/8"

$

$

Not available

14

Simplicity SIL-A73

Race, Inner Bearing

$

$

Not available

15

Simplicity F-AX5

Pulley, Idler

$

$

Not available

16

Simplicity SS-A101

V-Belt, 34" long

$

$

Not available

17

Simplicity 121069

Pulley, Engine

$

$

Not available

18

Screw, Set, Cup, Polnt, 5/16"-18 x 5/16"

$

$

Not available

19

Screw, Hex Head, 3/8"-16 x 2 1/2" (2 1/4" threadHOSE, Fuel, Cut to 12th)

$

$

Not available

20

Simplicity 121074

Stop, Belt

$

$

Not available

21

Simplicity 121112

Stop, Belt

$

$

Not available

22

Nut, Full Hex, 3/8"-16

$

$

Not available

23

Washer, 5/16"

$

$

Not available

24

Simplicity S1A158

Stop, Belt

$

$

Not available

25

Simplicity S3A42

Key, Engine

$

$

Not available

26

Simplicity P-A47

Spring

$

$

Not available
