990086 - Simplicity Wonderboy Rear-Engine Riding Mower TRANSMISSION AND DIFFERENTIAL ASSEMBLIES Parts Diagram

Wonderboy Rear-Engine Riding Mower

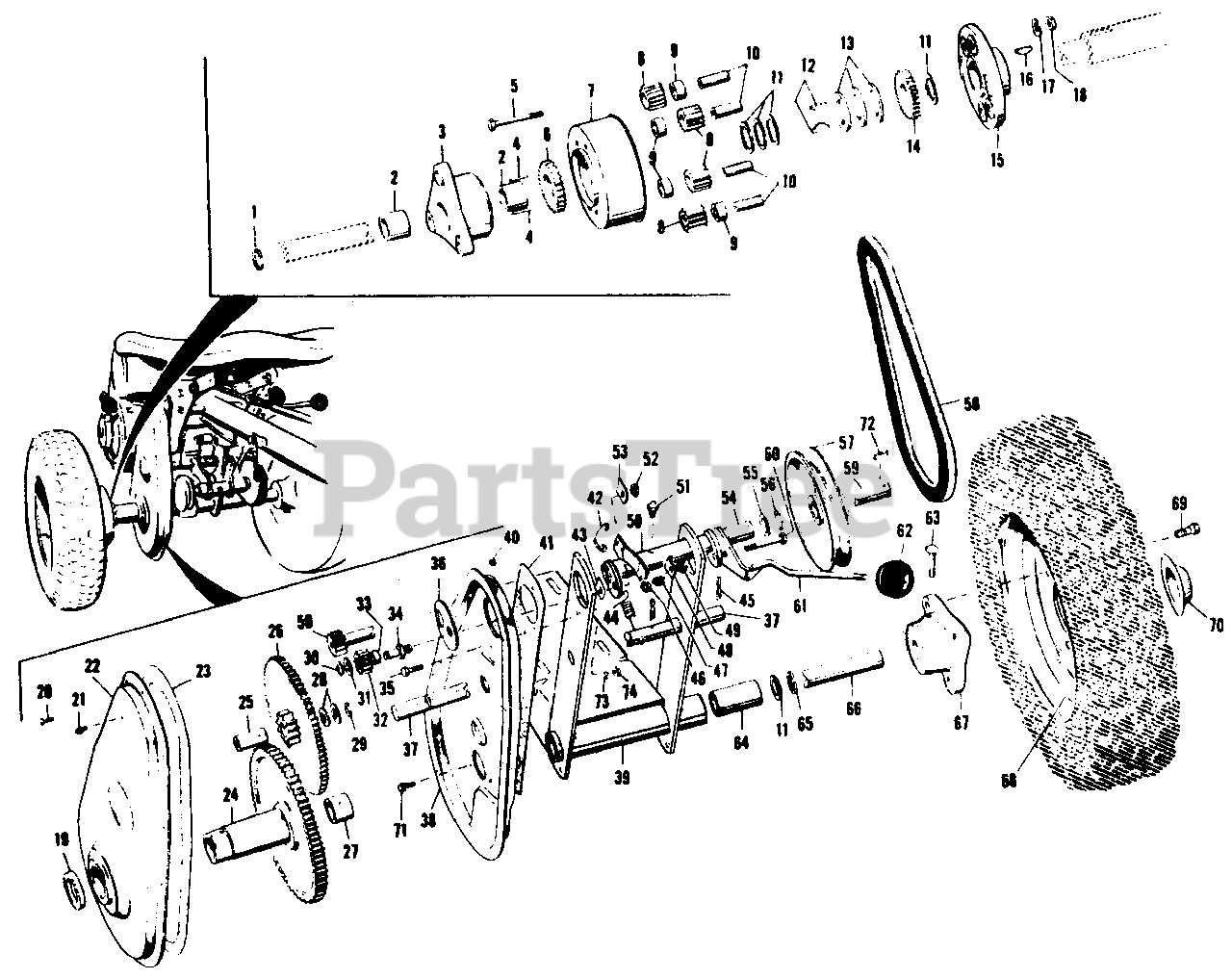

TRANSMISSION AND DIFFERENTIAL ASSEMBLIES Parts Diagram

  • Title

1

Simplicity R-A63

Ring, Retaining

$

$

Not available

2

Simplicity 2153068SM

Bearing

$31.99

$

Usually ships in 2-12 days

0

3

Simplicity 121088

Hub, Wheel. R.H.

$

$

Not available

4

Pin, Roll 7/32 x 1"

$

$

Not available

5

Screw, Hex Cap, 3/8"-16 x 2 1/2"

$

$

Not available

6

Simplicity 121087

Gear, Differential

$

$

Not available

7

Simplicity 121085

Cover, Differential

$

$

Not available

8

Simplicity 121082

Pinion, Differential

$

$

Not available

9

Simplicity 121094

Spacer, Differential

$

$

Not available

10

Simplicity 2121083SM

Spindle, Pinion Differential

$13.99

$

In Stock, only 1 left!

0

11

Simplicity 153088

Washer

$

$

Not available

12

Key, Hi-Pro #HP608

$

$

Not available

13

Simplicity 153077

Washer, Axle

$

$

Not available

14

Simplicity 121086

Gear Differential

$

$

Not available

15

Simplicity 121080

Carrier, Differential

$

$

Not available

16

Simplicity 121081

Key, Hi-Pro

$

$

Not available

17

Washer, Lock 3/8"

$

$

Not available

18

Nut, Full Hex. 3/8"-16

$

$

Not available

19

Simplicity 121064

Seal

$

$

Not available

20

Screw Rd. Hd. Mach. 10-32 x 3/8"

$

$

Not available

21

Grease Fitting, #AD-1051

$

$

Not available

22

Simplicity 121061

Cover Assembly

$

$

Not available

23

Simplicity 153115

Gasket, Case

$

$

Not available

24

Simplicity 121058

Gear Assembly, Drive

$

$

Not available

25

Simplicity 2153078

Bearing, Intermediate Pinion

$

$

Not available

26

Simplicity 121119

Gear Assembly, Intermediate (available only as 2 gears assd.)

$

$

Not available

27

Simplicity 2153068SM

Bearing

$31.99

$

Usually ships in 2-12 days

0

28

Simplicity 2153079

Washer

$

$

Not available

29

Simplicity 2153124SM

Ring, Retaining

$5.99

$

In Stock, Qty 20+

0

30

Simplicity 153125

Ring, Retaining

$

$

Not available

31

Simplicity 2153072

Washer Reverse Pinion

$

$

Not available

32

Simplicity 121117

Plnion Assembly, Reverse with Bearing

$

$

Not available

33

Simplicity 153064

Bearing

$

$

Not available

34

Simplicity 153076

Stud Reverse Pinion

$

$

Not available

35

Screw, Hex Cap 3/8"-16 x 1"

$

$

Not available

36

Simplicity 153094

Shield

$

$

Not available

37

Simplicity 121043

Shaft, Intermediate

$

$

Not available

38

Simplicity 153105

Case Gear

$

$

Not available

39

Simplicity 121055

Housing, Assembly, Axle

$

$

Not available

40

Nut, Hex Lock #10-32

$

$

Not available

41

Simplicity 153114

Gasket, Bearing Housing

$

$

Not available

42

Simplicity 153011

Spring, Extension

$

$

Not available

43

Simplicity 121107

Spacer

$

$

Not available

44

Simplicity 153121

Sring, Reverse Lever

$

$

Not available

45

Cotter Pin 3/16" x 1 1/4"

$

$

Not available

46

Nut, Lock 3/8"-16

$

$

Not available

47

Simplicity S2-A47

Spring

$

$

Not available

48

Simplicity 121042

Plate, Friction

$

$

Not available

49

Nut, Hex Jam, 3/8"-16

$

$

Not available

50

Simplicity 153044

Housing Assembly, Bearing

$

$

Not available

51

Grease Fitting, #1911

$

$

Not available

52

Simplicity 153090

Nut, Hex L.H.

$

$

Not available

53

Simplicity 121139

Plate, Lock

$

$

Not available

54

Simplicity F-A38

Bearing

$

$

Not available

55

Simplicity 2153079

Washer

$

$

Not available

56

Simplicity 2153124SM

Ring, Retaining

$5.99

$

In Stock, Qty 20+

0

57

Simplicity 121124

Pulley, Transmission

$

$

Not available

58

Simplicity 2121078SM

Eng. Drive "V" Belt-A33S Super Combine 35" Long

$26.99

$

Usually ships in 2-12 days

0

59

Simplicity 2121115SM

Pinion and Pulley Shaft Assembly

$90.99

$

Usually ships in 2-12 days

0

60

Screw Hex Cap 3/8"-16 x 1 1 1/4"

$

$

Not available

61

Simplicity 121639

Lever Assembly, Shaft

$

$

Not available

62

Simplicity D-A50

Knob

$

$

Not available

63

Screw, Set, Sq. Hd. 3/8"-16 x 1 1/4"

$

$

Not available

64

Simplicity 153089

Bearing, Axle

$

$

Not available

65

Simplicity 121128

Ring, Retaining

$

$

Not available

66

Simplicity 121079

Axle, Hear

$

$

Not available

67

Simplicity 121089

Hub, Wheel, L.H.

$

$

Not available

68

Simplicity 121109

Wheel, Less Tire and Tube

$

$

Not available

69

Simplicity 2121138

Bolt, Hub

$

$

Not available

70

Simplicity 121137

Cap, Hub, Rear

$

$

Not available

71

Screw, Cap 5/16"-18 x 1/8"

$

$

Not available

72

Key, Woodruff, 3/16" x 1/4"

$

$

Not available

73

Washer Lock 1/8"

$

$

Not available

74

Nut, Hex, Full 1/8"-16

$

$

Not available
