990091 - Simplicity Lawn Roller Lawn Roller Parts Diagram

Lawn Roller

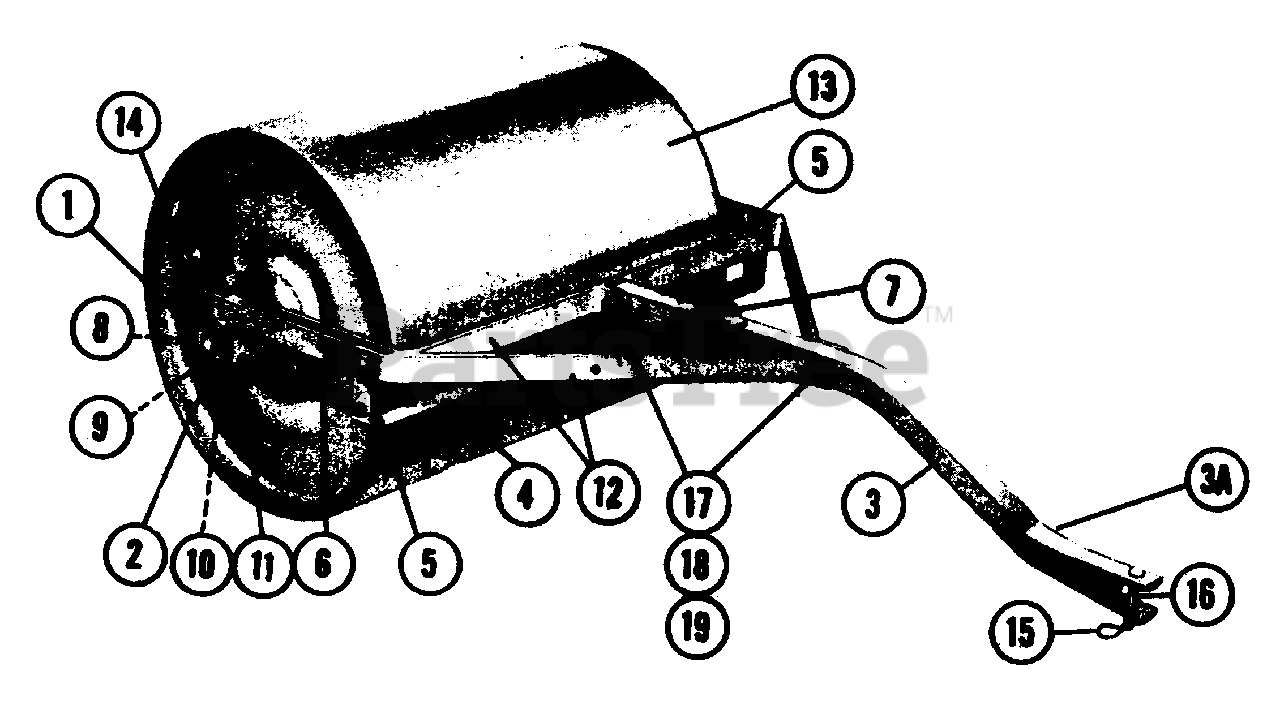

Lawn Roller Parts Diagram

  • Title

1

Simplicity 2719005

Flat Washer 3/4"

$

$

Not available

2

Simplicity 8011204

Pin

$

$

Not available

3

Simplicity 2102037SM

Tongue

$

$

Not available

4

Simplicity 102042

Scraper

$

$

Not available

5

Simplicity 2102004SM

Pivot Pin

$9.49

$

In Stock, only 3 left!

0

6

Simplicity 8011158

Spring

$

$

Not available

7

BOX CATCH CLEVIS ASSEMBLY

$

$

Not available

8

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

9

Simplicity 102034

Nylon Bushing

$

$

Not available

10

Simplicity 102007

Bearing Retainer

$

$

Not available

11

Simplicity 102043

Extension Pin

$

$

Not available

12

Simplicity 2102035SM

Frame Assembly

$

$

Not available

13

Simplicity 102001

Lawn Roller

$

$

Not available

14

Simplicity 2722004

Cotter Pin, 1/8 x 1 1/2"

$

$

Not available

15

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

16

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

17

Simplicity 2705003

Hex Capscrew, 3/8-16 x 2 1/4

$

$

Not available

18

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

19

Simplicity 2717003

Hex Nut. 3/8-16

$

$

Not available
