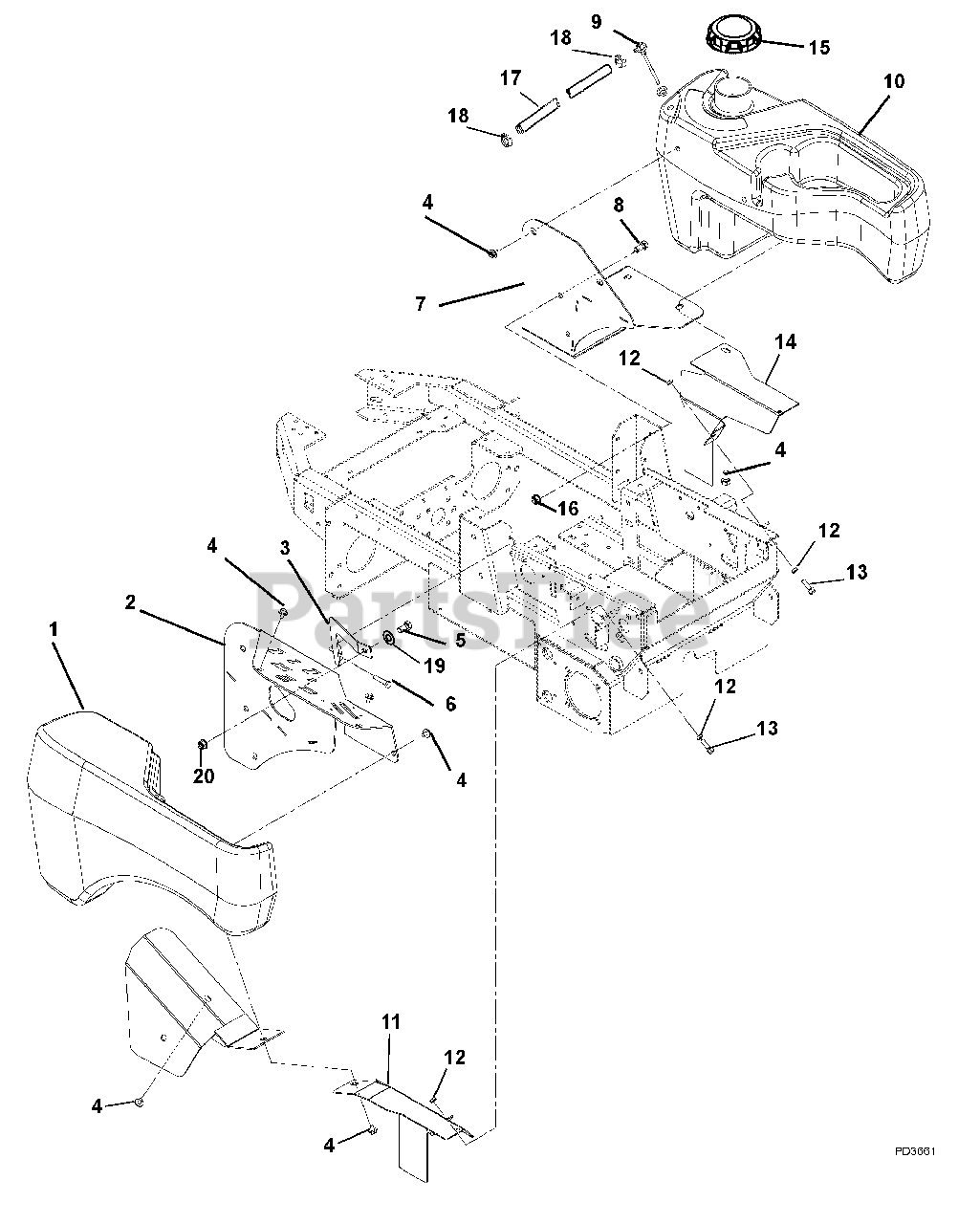

990100 - Gravely Rapid XZ Zero-Turn Mower, 27hp Kohler (SN: 000101 & Above) Fuel Tanks And Hoses Parts Diagram

Rapid XZ Zero-Turn Mower, 27hp Kohler

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 00497400

Fender, Right Hand

$

$

Not available

2

Gravely 00473951

Weldment, Control Panel

$125.99

$

Usually ships in 4-12 days

0

3

Gravely 00616851

Stiffener, Fender

$19.99

$

Usually ships in 4-12 days

0

4

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

6

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

7

Gravely 00588451

Weldment, Fuel Tank Bracket (Outfront)

Note: (Outfront)

$81.99

$

Usually ships in 4-12 days

0

8

Gravely 05947100

Bolt, Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

9

Gravely 00592600

Assembly, Fuel Line and Fitting

$35.99

$

In Stock, only 1 left!

0

10

Gravely 00497500

Tank, Fuel Left Hand Outfront

$

$

Not available

11

Gravely 00672751

Cover, Tire Right Hand

$

$

Not available

12

Gravely 06535900

Nut, Hex-Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 12

0

13

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

14

Gravely 00672651

Cover, Tire Left Hand

$

$

Not available

15

Gravely 00273700

Cap, Fuel
(Superseded to 03859100)

$28.99

$

In Stock, only 2 left!

0

16

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 00924300

Gas Line-Bulk 1/4" I.D.
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06939100

Clamp, Hose Wire .490/.510 x .116

$3.99

$

In Stock, Qty 20+

0

19

Gravely 06435700

Washer, Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

20

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0
