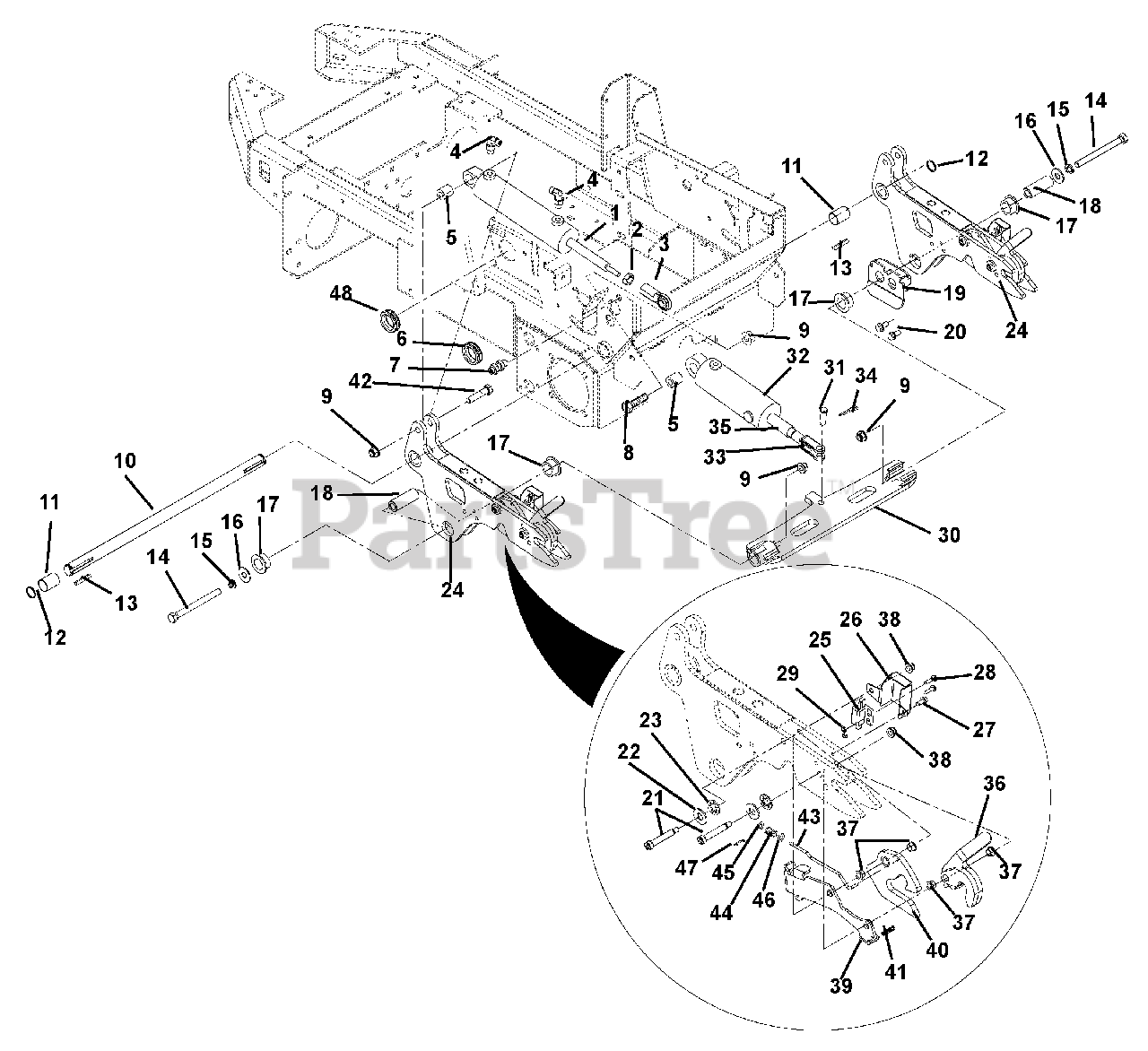

990100 - Gravely Rapid XZ Zero-Turn Mower, 27hp Kohler (SN: 000101 & Above) Weight Transfer Parts Diagram

Rapid XZ Zero-Turn Mower, 27hp Kohler

Weight Transfer Parts Diagram

  • Title

1

Gravely 00585100

CYLINDER, HYD. DECK LIFT

$246.99

$

Usually ships in 4-12 days

0

2

Gravely 06539600

NUT-JAM .625-18 YWZC

$4.99

$

Usually ships in 4-12 days

0

3

Gravely 09221600

ROD END, 5/8 RH - FEMALE

$26.99

$

Usually ships in 4-12 days

0

4

Gravely 07000045

ADPTR,HYD FTG 90 M4F-M6O C5OLO

$18.99

$

Usually ships in 4-12 days

0

5

Gravely 09215200

BUSHING, .516X1.000X1.050 LG

$36.99

$

Usually ships in 4-12 days

0

6

Gravely 07536800

GROMMET 1.25ID X 1.5OD

$14.99

$

Usually ships in 4-12 days

0

7

Gravely 07000044

FTG,HYD BULKHEAD M4F-M4F

$

$

Not available

8

Gravely 05961000

BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 00606500

SHAFT, MAIN ARM PIVOT OUT FRNT

$

$

Not available

11

Gravely 05500034

BSHG,1.00ID X 1.125OD X 1.50LG

$7.49

$

In Stock, Qty 10

0

12

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$3.49

$

In Stock, Qty 9

0

13

Gravely 06601800

KEY-STR .25X1.75X.25

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.49

$

In Stock, Qty 12

0

15

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

17

Gravely 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 20+

0

18

Gravely 00606600

SPACER 1.00 X .562 X 2.720

$

$

Not available

19

Gravely 00678851

STOP, DECK BLOCK BLACK

$79.99

$

Usually ships in 4-12 days

0

20

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 07000105

BLT SKH SHLD .31X18X2.0

$6.49

$

Usually ships in 4-12 days

0

22

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.99

$

In Stock, Qty 20+

0

23

Gravely 06300002

WSHR-LOCK INT .375

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 00601151

WMT, LIFT ARM (OUT FRONT)

$330.99

$

Usually ships in 4-12 days

0

25

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.99

$

In Stock, Qty 18

0

26

Gravely 00679451

GUARD, PTO SAFETY SWITCH MOUNT

$

$

Not available

27

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

29

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 00867100

WDMT, WEIGHT TRANSFER BAR

$

$

Not available

31

Gravely 06814700

PIN-CLEV .50X1.33 YWZC

$6.49

$

Usually ships in 4-12 days

0

32

Gravely 00616700

CYLINDER, HYD 2.5 X 4.0

$

$

Not available

33

Gravely 08797200

YOKE, .50-20 X 3.00

$

$

Not available

34

Gravely 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

35

Gravely 07000107

STUD .5-20X2.0 GR8 FULL THRD

$13.99

$

Usually ships in 4-12 days

0

36

Gravely 00608253

LATCH LEVER

$81.99

$

Usually ships in 4-12 days

0

37

Gravely 05503600

BSHG-FLG .372X.500X.312X.625NY

$2.49

$

In Stock, Qty 20+

0

38

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 00662751

LATCH SUPPORT PLATE

$

$

Not available

40

Gravely 00676200

LATCH, TILT

$96.99

$

Usually ships in 4-12 days

0

41

Gravely 08300032

SPRING, LEVER RETENTION

$

$

Not available

42

Gravely 05966600

BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 1 left!

0

43

Gravely 00676400

ROD, LATCH TENSION

$18.99

$

Usually ships in 4-12 days

0

44

Gravely 08300028

SPRING, COMPRESSION

$5.49

$

In Stock, Qty 20+

0

45

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

46

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

47

Gravely 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, only 4 left!

0

48

Gravely 07500017

GROMMET 1.70ID X 2.0OD

$5.99

$

Usually ships in 4-12 days

0
