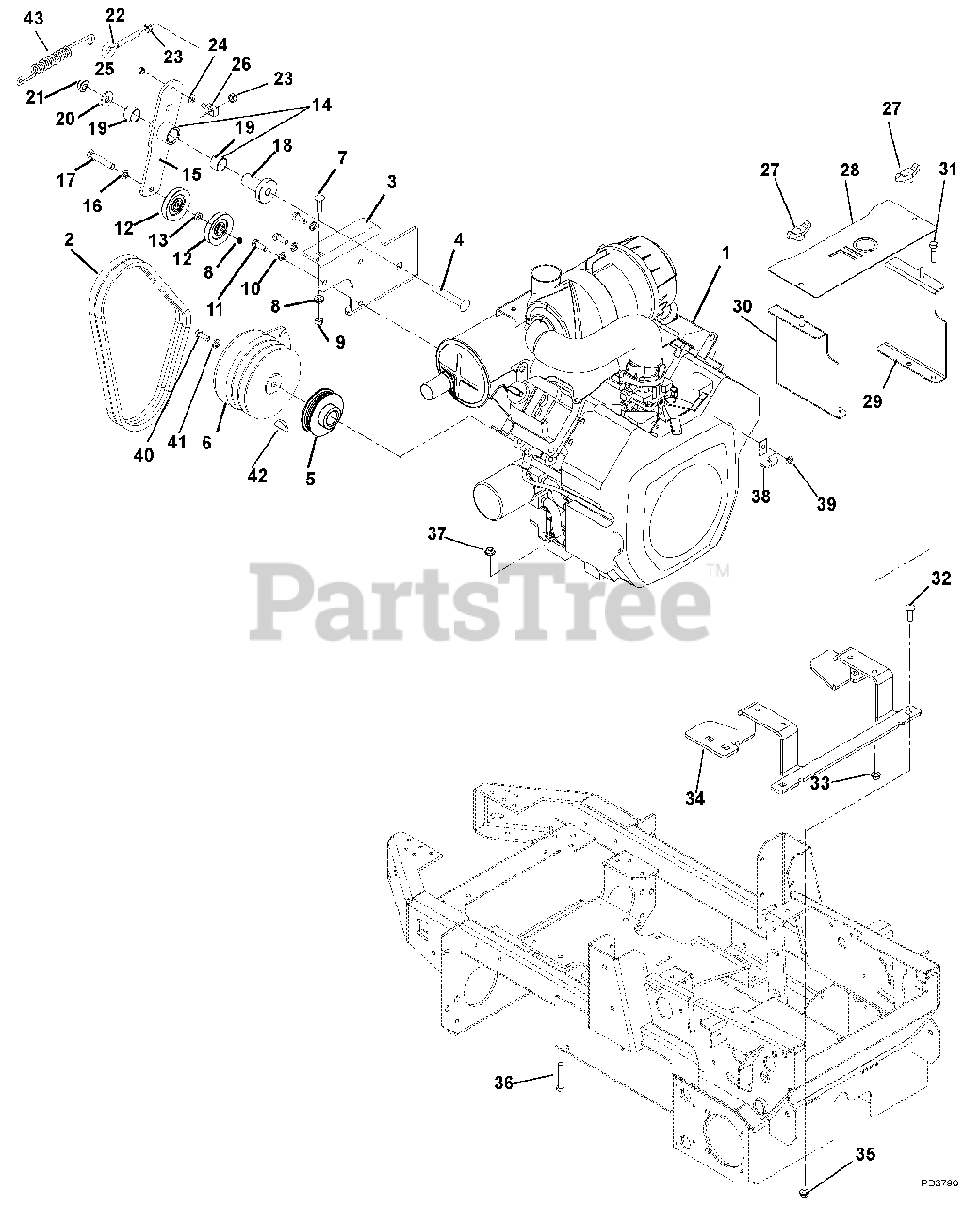

990101 - Gravely Rapid XZ Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Engine And Clutch Parts Diagram

Rapid XZ Zero-Turn Mower, 25hp Kohler

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200132

Engine, 27hp Kohler (990100)

Note: (990100)

$

$

Not available

Gravely 08200118

Engine, 25hp Kohler (990101)

Note: (990101)

$

$

Not available

Gravely 08200145

Engine, 30hp Kohler (990102)

Note: (990102)

$

$

Not available

2

Gravely 07200113

Belt,B 41.313 Matched Set

$80.99

$

In Stock, only 1 left!

0

3

Gravely 00667451

Bracket, PTO Idler Mounting

$42.99

$

Usually ships in 4-12 days

0

4

Gravely 06225000

Bolt, Round Head Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200317)

$6.49

$

In Stock, Qty 20+

0

5

Gravely 07300041

Sheave, Poly-V

$95.99

$

In Stock, only 2 left!

0

6

Gravely 00697900

Clutch, Warner Double Groove

$857.99

$

Usually ships in 4-12 days

0

7

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06529600

Nut, Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$1.49

$

In Stock, Qty 19

0

11

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 07327600

V-Idler, 4.00 x .38

$39.99

$

In Stock, Qty 20+

0

13

Gravely 06400018

Washer, .406 x 1.0 x .38THK

$

$

Not available

14

Gravely 00652700

Assembly, Idler Pivot Assembly (includes items 15 and 19)

Note: (includes items 15 and 19)

$

$

Not available

15

Gravely 00652300

Weldment, PTO Idler Pivot Arm (OFM)

Note: (OFM)

$115.99

$

Usually ships in 4-12 days

0

16

Gravely 06435900

Washer, Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 05957800

Bolt, Hex .38-16 x 3.00 Grade 5
(Superseded to 05901814)

$2.99

$

In Stock, Qty 19

0

18

Gravely 07000031

Bearing, Pedestal

$84.99

$

In Stock, Qty 6

0

19

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.99

$

In Stock, Qty 20+

0

20

Gravely 06430200

Washer, Flat-Steel .531 x 1.250 x .100
(Superseded to 06401128)

$1.49

$

In Stock, only 4 left!

0

21

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 07030000

Bolt, Eye .375-16 x 2.50

$8.49

$

In Stock, Qty 10

0

23

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 09267300

Pin, Pivot

$7.49

$

In Stock, only 2 left!

0

27

Gravely 07531700

Knob, Wing
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

28

Gravely 00865151

Shroud, Cooling

$35.99

$

In Stock, only 1 left!

0

29

Gravely 00866951

Bracket, Tank Shroud Left Hand

$40.99

$

Usually ships in 4-12 days

0

30

Gravely 00867051

Bracket, Tank Shroud Right Hand

$38.99

$

Usually ships in 4-12 days

0

31

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

32

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 1 left!

0

33

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 00682451

Mount, Hydraulic Tank

$

$

Not available

35

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

37

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 06916000

J-Clamp

$2.99

$

Usually ships in 4-12 days

0

39

Gravely 06437300

Washer, Flat-STL.281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

40

Gravely 05900040

Bolt, Hex .44-20 x 2.25 Grade 5 EP80

$7.49

$

Usually ships in 4-12 days

0

41

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, Qty 6

0

42

Gravely 06603400

Key

$3.99

$

In Stock, Qty 8

0

43

Gravely 08321200

Spring-Tension .135X.69X5.75

$22.99

$

Usually ships in 4-12 days

0
