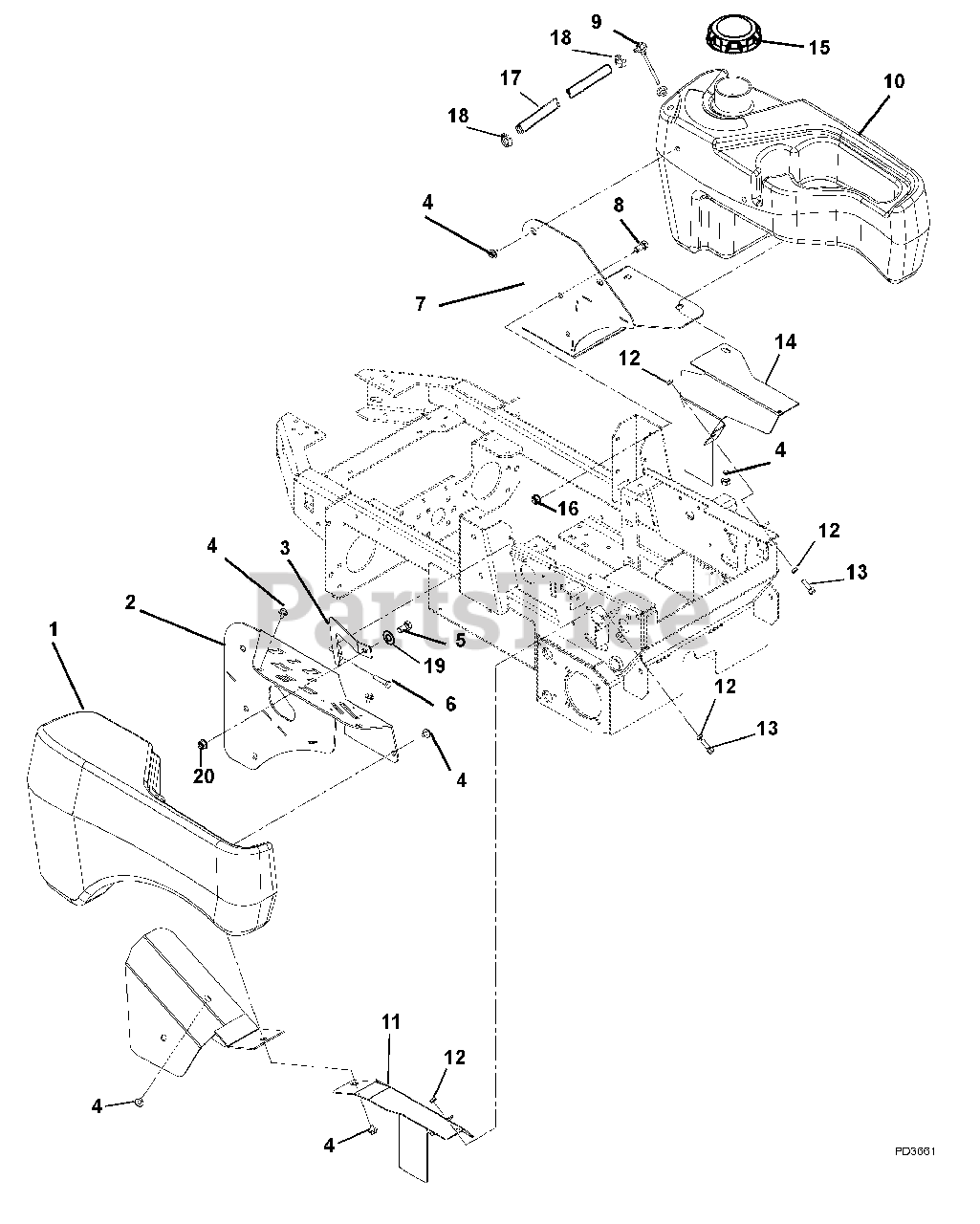

990101 - Gravely Rapid XZ Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Fuel Tanks And Hoses Parts Diagram

Rapid XZ Zero-Turn Mower, 25hp Kohler

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 00497400

FENDER, (RH) OUTFRONT

$

$

Not available

2

Gravely 00473951

PANEL, CONTROL

$128.99

$

Usually ships in 4-12 days

0

3

Gravely 00616851

STIFFENER, FENDER

$

$

Not available

4

Gravely 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

5

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

6

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 00588451

BRKT, LH FUEL TANK (OUTFRONT)

Note: (Outfront)

$83.99

$

Usually ships in 4-12 days

0

8

Gravely 05947100

BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.99

$

In Stock, only 2 left!

0

9

Gravely 00592600

ASSM, FUEL LINE & FITTING

$37.99

$

In Stock, only 1 left!

0

10

Gravely 00497500

TANK, FUEL (LH) OUTFRONT

$

$

Not available

11

Gravely 00672751

COVER, TIRE RH

$

$

Not available

12

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 8

0

14

Gravely 00672651

COVER, TIRE LH

$

$

Not available

15

Gravely 00273700

CAP - FUEL
(Superseded to 03859100)

$29.99

$

In Stock, Qty 15

0

16

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

19

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+
