990101 - Gravely Rapid XZ Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

Rapid XZ Zero-Turn Mower, 25hp Kohler

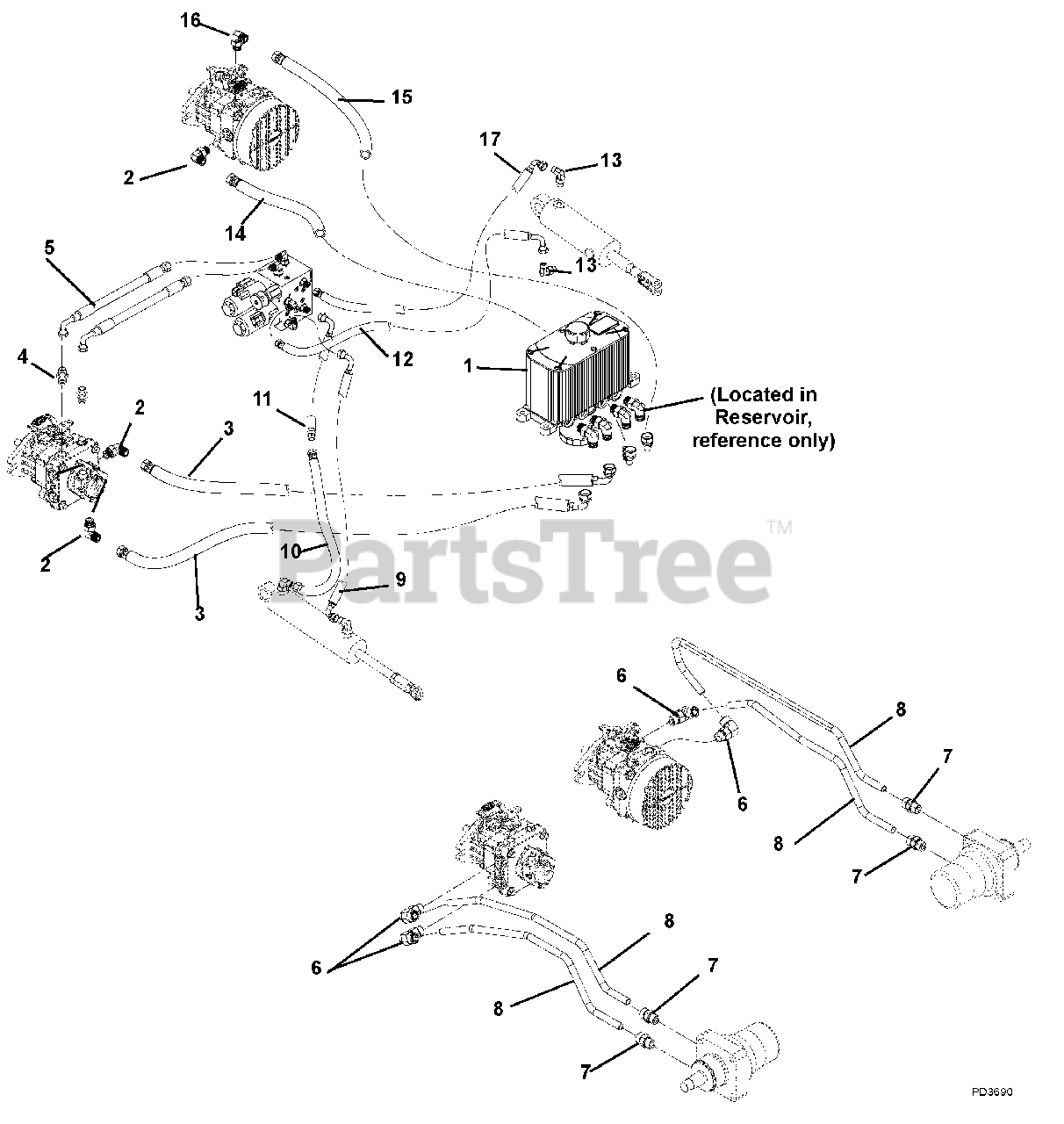

Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

  • Title

1

Gravely 00585500

TANK, HYD RESERVOIR/FILTER

$

$

Not available

NS

Gravely 21543400

FILTER, HYD. TANK OIL

$23.99

$

Usually ships in 4-12 days

0

2

Gravely 07069600

FTG. HYD. 90 EL M8F-M8O

$35.99

$

Usually ships in 4-12 days

0

3

Gravely 00601700

HOSE,HYD .50-15-0K F08F0-F08F9

$107.99

$

Usually ships in 4-12 days

0

4

Gravely 07064100

FITTING, HYD STR M40-M6F

$

$

Not available

5

Gravely 01967900

HOSE,HYD .37-30-2K F06F0-F06F9

$

$

Not available

6

Gravely 07000043

FTG,HYD 90 M10F-M8O

$31.99

$

Usually ships in 4-12 days

0

7

Gravely 07000042

FTG,HYD STR M10O-M10F

$

$

Not available

8

Gravely 00669000

HOSE,HYD .50-25-2K F10F0-F10F0

$

$

Not available

9

Gravely 00608900

HOSE,HYD .25-39-2K F04F0-F04F0

$43.99

$

Usually ships in 4-12 days

0

10

Gravely 00609000

HOSE,HYD .25-16-2K F04F0-F04F9

$48.99

$

Usually ships in 4-12 days

0

11

Gravely 00608700

HOSE,HYD .25-20-2K F04F9-F04F9

$

$

Not available

12

Gravely 00608600

HOSE,HYD .25-21-2K F04F0-F04F9

$

$

Not available

13

Gravely 07000045

ADPTR,HYD FTG 90 M4F-M6O C5OLO

$18.99

$

Usually ships in 4-12 days

0

14

Gravely 00959700

HOSE,HYD .5-17.25-0K F8F9-F8F9

$64.99

$

Usually ships in 4-12 days

0

15

Gravely 00960100

HOSE,HYD .5-17.25-0K F8F9-F8F9

$68.99

$

Usually ships in 4-12 days

0

16

Gravely 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

$9.99

$

Usually ships in 4-12 days

0

17

Gravely 00698400

HOSE,HYD .25-16-2K F04F9-F04F0

$

$

Not available
