Electric Starter 12 Volt System

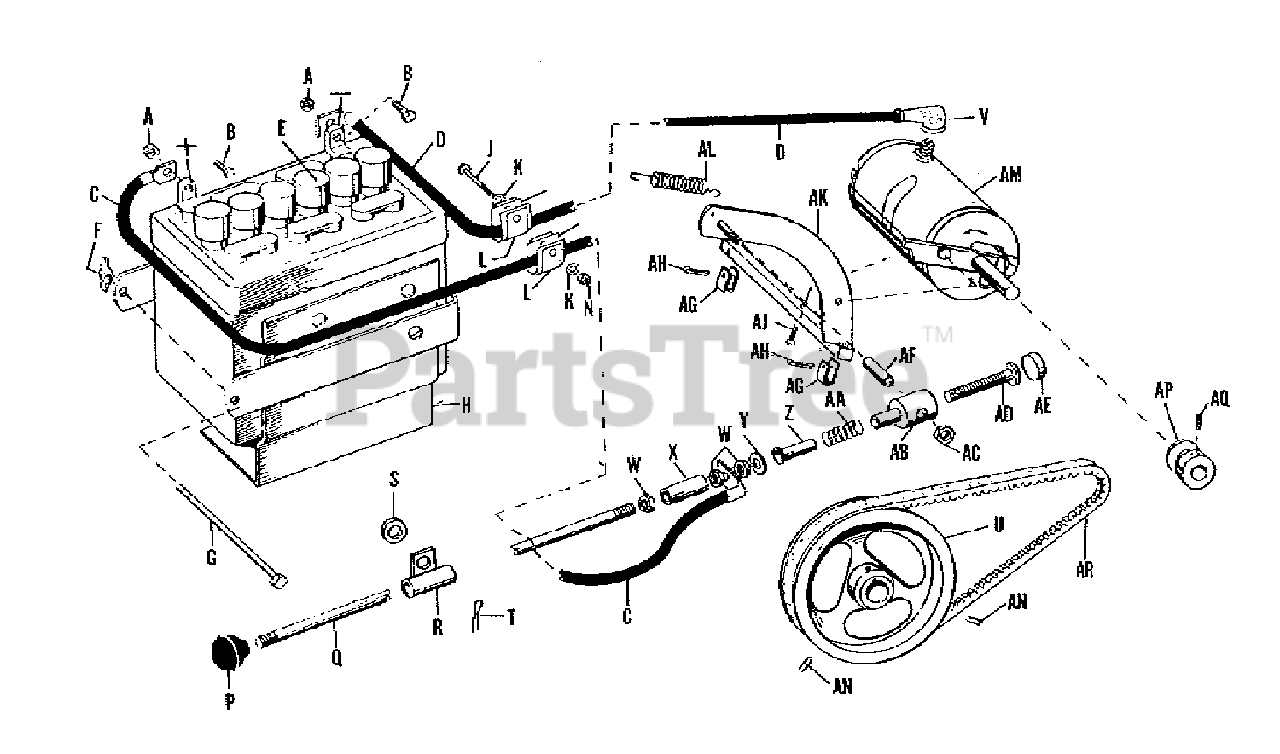

Electric Starter Group - 12 Volt System (3575I01) Parts Diagram

  • Title

A

Simplicity 718004

NUT, Hex, Full, 1/4"-20 N.C. Reg.

$

$

Not available

B

Simplicity 715010

SCREW, Hex Head Cap, 1/4"-20 NC x 5/8 Large

$186.99

$

Usually ships in 2-12 days

0

C

Simplicity 122004

CABLE

$

$

Not available

D

Simplicity 122029

CABLE ASSEMBLY

$

$

Not available

E

Simplicity 122001

BATTERY (PURCHASE FROM BAT. Mfg.)

$

$

Not available

F

Simplicity 718007

NUT, Wing Lock, 1/4" 20NC

$

$

Not available

G

Simplicity 701002

BOLT, Machine, 1/4" 20NC x 6" Large

$

$

Not available

H

Simplicity 122030

BRACKET ASSEMBLY, Battery

$

$

Not available

J

Simplicity 710001

SCREW, Round Head Machine, #10-24 X 1 1/2" Large

$

$

Not available

K

Simplicity 2719007

WASHER, Plain, 3/16 Standard

$

$

Not available

L

Simplicity 122024

CLIP, Cable

$

$

Not available

M

Simplicity 122025

LINING, Clip

$

$

Not available

N

Simplicity 718002

NUT, Hex Lock, #10-24

$

$

Not available

P

Simplicity 2122005SM

KNOB, Starter

$14.99

$

In Stock, only 1 left!

0

Q

Simplicity 122031

ROD, Starter

$

$

Not available

R

Simplicity 122032

GUIDE ASSEMBLY, Rod

$

$

Not available

S

Simplicity 2719001

WASHER, Plain, 3/8" Standard

$

$

Not available

T

Simplicity 2722006

PIN, Cotter

$

$

Not available

U

Simplicity 122038

PULLEY, Engine

$

$

Not available

V

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, only 3 left!

0

W

Simplicity 2717011

NUT, Hex. Jam, 5/16"-18NC Reg.

$

$

Not available

X

Simplicity 122009

INSULATOR

$

$

Not available

Y

Simplicity 2719002

WASHER, Plain, 5/16" Standard

$

$

Not available

Z

Simplicity 122013

SPACER

$

$

Not available

AA

Simplicity 122015

SPRING

$

$

Not available

AB

Simplicity 122010

BODY, Switch

$

$

Not available

AC

Simplicity 2717511

NUT, Hex. Lock Full, 5/16-18NC Reg.

$

$

Not available

AD

Simplicity 122012

BOLT, Contact

$

$

Not available

AE

Simplicity 122011

PLUG, Switch Body

$

$

Not available

AF

Simplicity 122014

CONTACT

$

$

Not available

AG

Simplicity 122019

STRAP, Motor Support

$

$

Not available

AH

Simplicity 722013

PIN, Cotter

$

$

Not available

AJ

Simplicity 715003

SCREW, Socket, 3/4"-20NC x 3/4" Large

$31.99

$

Usually ships in 2-12 days

0

AK

Simplicity 122034

LEVER ASSEMBLY, Belt Tension

$

$

Not available

AL

Simplicity 122064

SPRING

$

$

Not available

AM

Simplicity 122026

MOTOR, Starter (See Note)

$

$

Not available

AN

Simplicity 2713501

SCREW, Hex. Socket Cup Point Set, 5/16"-18 NC x 1/2" Large

$

$

Not available

AP

Simplicity 122020

PULLEY, Motor

$

$

Not available

AQ

Simplicity 2713505

SCREW, Hex Socket Cup Point Set, 1/4"-20 NC x 5/16" Large

$

$

Not available

AR

Simplicity 122039

V" BELT, Starter 24" Large Cog Type`

$

$

Not available
