990103 - Simplicity 28" Tiller Attachment Tiller Group - 28" (3587I01) Parts Diagram

28" Tiller Attachment

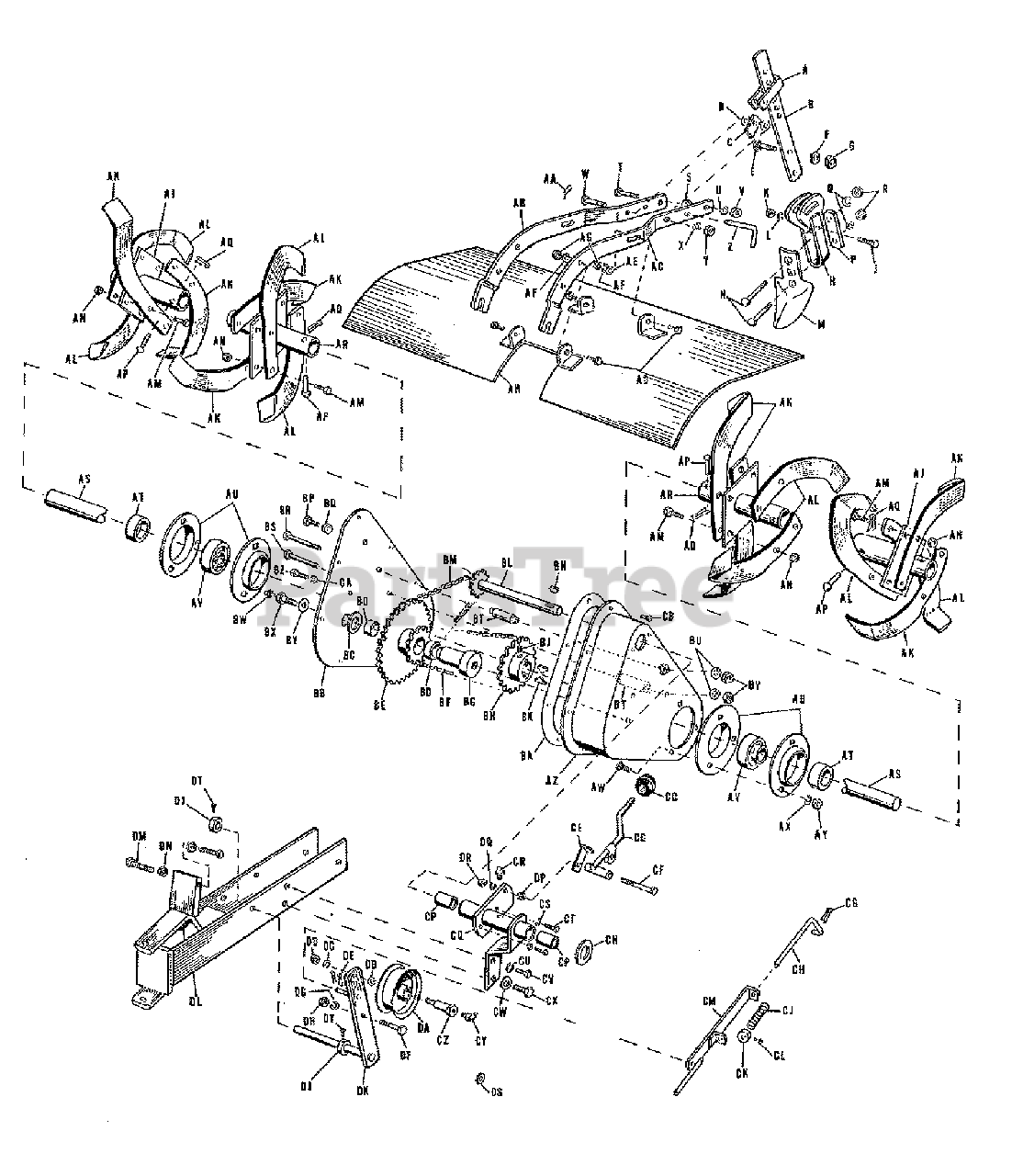

Tiller Group - 28" (3587I01) Parts Diagram

  • Title

A

Simplicity 105091

GUIDE

$

$

Not available

B

Simplicity 105092

BAR, Depth

$

$

Not available

C

Simplicity 105090

LUG, Stop

$

$

Not available

D

WASHER, Plain, 7/16"

$

$

Not available

E

BOLT, Carriage, 3/8-16 x 1-3/4 w/Short Square Neck

$

$

Not available

F

WASHER, Plain, 3/8"

$

$

Not available

G

NUT, Hex, Full, 3/8-16

$

$

Not available

H

Simplicity 105107

HOLDER ASSEMBLY, Tool

$

$

Not available

J

SCREW, Hex Head Cap, 3/8-16 x 1-1/2"

$

$

Not available

K

NUT, Hex, Full, 3/8-16

$

$

Not available

L

WASHER, Lock, 3/8" Regular

$

$

Not available

M

Simplicity 105093

SHOE, Depth

$

$

Not available

N

BOLT, Plow, 3/8-16 x 2-1/4"

$

$

Not available

P

Simplicity 105110

STRAP, Shoe

$

$

Not available

Q

WASHER, Lock, 3/8" Regular

$

$

Not available

R

NUT, Hex, Full, 3/8-16

$

$

Not available

S

Simplicity 105006

SPACER

$

$

Not available

T

SCREW, Hex Head Cap, 1/2-13 x 2"

$

$

Not available

U

WASHER, Lock, 1/2" Regular

$

$

Not available

V

NUT, Hex, Full, 1/2-13

$

$

Not available

W

SCREW, Hex Head Cap, 1/2-13 x 2-1/4"

$

$

Not available

X

WASHER, Lock, 1/2" Regular

$

$

Not available

Y

NUT, Hex, Full, 1/2-13

$

$

Not available

Z

Simplicity 105004

PIN

$

$

Not available

AA

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

AB

Simplicity 105095

BEAM, Depth Guage, R.H.

$

$

Not available

AC

Simplicity 105094

BEAM, Depth Guage, L.H.

$

$

Not available

AD

SCREW, Hex Head Cap, 3/8-16 x 1"

$

$

Not available

AE

WASHER, Plain, 3/8"

$

$

Not available

AF

WASHER, Lock, 3/8" Regular

$

$

Not available

AG

NUT, Hex, Full, 3/8-16

$

$

Not available

AH

Simplicity 105096

DEFLECTOR ASSEMBLY

$

$

Not available

AJ

Simplicity 118046

PLATE ASSEMBLY, Tine, Outer

$

$

Not available

AK

Simplicity 1729272SM

BLADE, R.H. Tine

$28.99

$

Usually ships in 2-12 days

0

AL

Simplicity 1729271SM

BLADE, L.H. Tine

$

$

Not available

AM

SCREW, Hex Head Cap, 7/16-20 x 1-1/4"

$

$

Not available

AN

NUT, Hex, Full Lock, 7/16-20 Gripco

$

$

Not available

AP

Simplicity 2118053SM

PIN, Tine Shaft
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

AQ

PIN, Cotter, 1/8" x 3/4"

$

$

Not available

AR

Simplicity 105104

PLATE ASSEMBLY, Tine Inner

$

$

Not available

AS

Simplicity 105084

SHAFT, Tine

$

$

Not available

AT

Simplicity 1729269

COLLAR, Bearing, Fafnir #S-1102

$

$

Not available

AU

Simplicity 8151072

FLANGE, Bearing, Fafnir #62MS

$

$

Not available

AV

Simplicity 1729268SM

BEARING, Fafnir #RA102PPB

$55.99

$

Usually ships in 2-12 days

0

AW

BOLT, Carriage, 3/8-16 X 3/4"

$

$

Not available

AX

WASHER, Lock, 3/8" Regular

$

$

Not available

AY

NUT, Hex, Full, 3/8-16

$

$

Not available

AZ

Simplicity 105086

GUARD ASSEMBLY, Chain

$

$

Not available

BA

Snapper 2105016SM

GASKET

$

$

Not available

BB

Simplicity 105078

PLATE ASSEMBLY, Side

$

$

Not available

BC

Simplicity 2105083

WASHER

$

$

Not available

BD

Simplicity 2105058SM

BUSHING

$3.99

$

Usually ships in 2-12 days

0

BE

Simplicity 103032

SPROCKET ASSEMBLY

$

$

Not available

BF

Simplicity 2178174SM

CHAIN, Rotor

$86.99

$

Usually ships in 2-12 days

0

BG

Simplicity 105082

SPACER, Intermediate

$

$

Not available

BH

Simplicity 8151022

SPROCKET, Driven

$

$

Not available

BJ

Simplicity 2713503

SCREW, Hex Socket, Cup Point Set, 5/16-18 x 5/16"

$

$

Not available

BK

Simplicity 2725503

KEY, #HP-708 "HI-PRO"

$

$

Not available

BL

Simplicity 105080

SHAFT ASSEMBLY, Drive

$

$

Not available

BM

Simplicity 105055

CHAIN, Drive

$

$

Not available

BN

Simplicity 2725003

KEY, Woodruff #9, 3/16 x 3/4"

$

$

Not available

BP

Simplicity 715013

SCREW, Square Head, Oval Point Set, 3/8-24 x 3/4"

$

$

Not available

BQ

Simplicity 2717014

NUT, Hex Jam, 3/8-24

$

$

Not available

BR

Simplicity 705033

SCREW, Hex Head Cap, 7/16-14 x 4-1/2"
(Superseded to 709771)

$7.49

$

In Stock, Qty 20+

0

BS

Simplicity 705034

SCREW, Hex Head Cap, 7/16-14 x 3-3/4"

$6.49

$

Usually ships in 2-12 days

0

BT

Simplicity 105085

SPACER, Guard

$

$

Not available

BU

WASHER, Lock, 7/16" Internal Shakeproof

$

$

Not available

BV

NUT, Hex, Full, 7/16-14

$

$

Not available

BW

Simplicity 2727002

FITTING, Grease, Alemite #1641

$

$

Not available

BX

Simplicity 105054

BOLT

$

$

Not available

BY

Simplicity 2719003

WASHER, Plain, 7/16"

$

$

Not available

BZ

Simplicity 2705004

SCREW, Hex Head Cap, 3/8-16 x 3/4"

$

$

Not available

CA

Simplicity 2720002

WASHER, Lock, 3/8" Regular

$

$

Not available

CB

Simplicity 708004

SCREW, 1/4-20 x 3/8" Hex Head Sems w/External Lockwasher
(Superseded to 709762)

$16.99

$

Usually ships in 2-12 days

0

CC

Simplicity 1729255SM

BALL, Clutch Lever

$12.99

$

In Stock, only 1 left!

0

CD

Simplicity 8021507

CLUTCH LEVER ASSEMBLY, R.H.

$

$

Not available

CE

Simplicity 8021121

STOP, Lever

$

$

Not available

CF

SCREW, Hex Head Cap, 5/16-18 x 2-1/2"

$

$

Not available

CG

PIN, Cotter, 3/32" x 3/4"

$

$

Not available

CH

Simplicity 8151050

ROD, Idler Clutch

$

$

Not available

CJ

Simplicity 1729277SM

SPRING

$6.99

$

Usually ships in 2-12 days

0

CK

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

CL

SCREW, Square Head, Cup Point Set, 1/4-20 x 3/8"

$

$

Not available

CM

Simplicity 105118

GUIDE ASSEMBLY, Rod

$

$

Not available

CN

Simplicity 1960061SM

WASHER

$7.99

$

Usually ships in 2-12 days

0

CP

Simplicity 8191044

BUSHING

$

$

Not available

CQ

Simplicity 105074

SUPPORT ASSEMBLY, Housing

$

$

Not available

CR

FITTING, Grease, Alemite #1792

$

$

Not available

CS

WASHER, Lock, 5/16" Regular

$

$

Not available

CT

SCREW, Hex Head Cap, 5/16-18 x 3/4"

$

$

Not available

CU

WASHER, Lock, 3/8" Internal Shakeproof

$

$

Not available

CV

SCREW, Hex Head Cap, 3/8-16 x 7/8"

$

$

Not available

CW

WASHER, Plain, 7/16"

$

$

Not available

CX

SCREW, Hex Head Cap, 1/2-20 x 1-3/4"

$

$

Not available

CY

FITTING, Grease, Alemite #1911-90 Degrees

$

$

Not available

CZ

Simplicity 2156064SM

PIN, Idler Pulley

$22.99

$

Usually ships in 2-12 days

0

DA

Simplicity 2156124SM

PULLEY ASSEMBLY, Idler

$

$

Not available

DB

Simplicity 2153072

WASHER

$

$

Not available

DC

WASHER, Lock, 1/2" Internal Shakeproof

$

$

Not available

DD

NUT, Hex Jam, 1/2-20

$

$

Not available

DE

PIN, Cotter, 1/8 x 1"

$

$

Not available

DF

SCREW, Hex Head Cap, 3/8-16 x 1-1/2"

$

$

Not available

DG

WASHER, Lock, 3/8" Regular

$

$

Not available

DH

NUT, Hex, Full, 3/8-16

$

$

Not available

DJ

Simplicity 1729258SM

SET, Collar
(Superseded to 5010477YP)

$8.99

$

Usually ships in 2-12 days

0

DK

Simplicity 105099

LEVER ASSEMBLY, Idler

$

$

Not available

DL

Simplicity 105069

FRAME ASSEMBLY

$

$

Not available

DM

SCREW, Hex Head, Cap, 7/16-20 NF x 1-1/2"

$

$

Not available

DN

NUT, Hex, Full, 7/16-20 NF

$

$

Not available

DP

NUT, Hex, Jam, 5/16-18 NC

$

$

Not available

DQ

WASHER, Lock, 5/16" Regular

$

$

Not available

DR

NUT, Hex, Full, 5/16-18

$

$

Not available

DS

WASHER, Plain,"

$

$

Not available

DT

SET SCREW, 5/16-18 x 3/8" Square Head Cup Point

$

$

Not available
