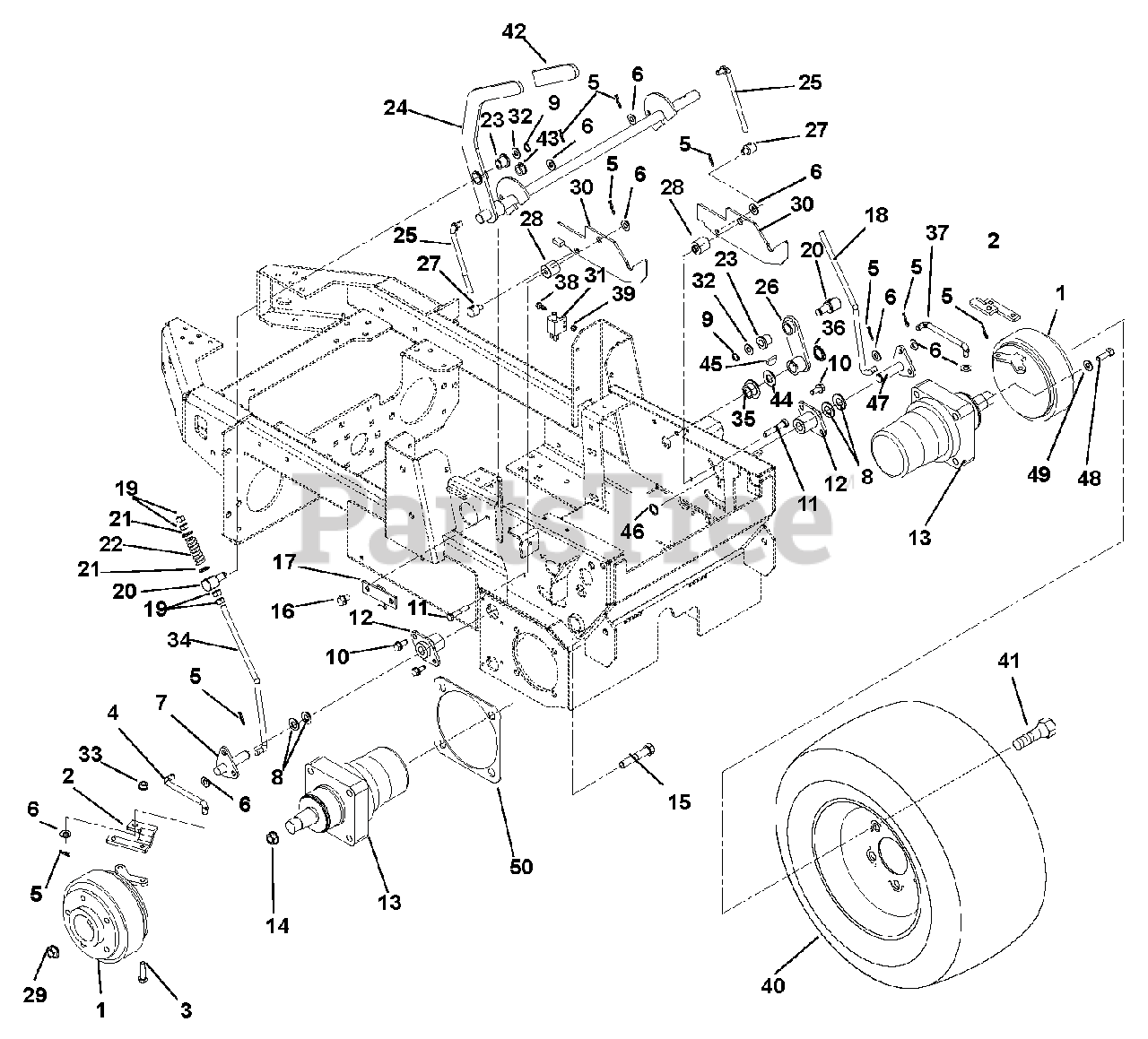

990106 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Brake Linkage Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

Brake Linkage Parts Diagram

  • Title

1

Gravely 00602500

ASSEMBLY, BRAKE

$732.99

$

Usually ships in 4-12 days

0

2

Gravely 00668251

EXTENSION-BRAKE

$27.99

$

Usually ships in 4-12 days

0

3

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

4

Gravely 00619400

ROD, PARKING BRAKE SET (RH)

$82.99

$

Usually ships in 4-12 days

0

5

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

6

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 00962800

WMT, PARKING BRAKE PIVOT, RH

$

$

Not available

8

Gravely 06430300

WSHR-FL-STL .656X1.250X.10 YZC

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0

11

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

12

Gravely 05534700

BUSHING, FLANGED

$21.99

$

Usually ships in 4-12 days

0

13

Gravely 04073900

MOTOR, PARKER TF0360LS080AAWN

$

$

Not available

14

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07067200

BOLT, WHEEL MOTOR 1/2-13X2.75

$17.99

$

In Stock, only 3 left!

0

16

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

17

Gravely 00497851

WMT, PARKING BRAKE HOLD DOWN

$8.49

$

Usually ships in 4-12 days

0

18

Gravely 00604800

ROD, O.C. LH BRAKE

$77.99

$

Usually ships in 4-12 days

0

19

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

20

Gravely 00698600

TRUNNION, PIVOT .38

$90.99

$

Usually ships in 4-12 days

0

21

Gravely 05500041

BUSHING-FLG .39X.53X.38X1.00

$

$

Not available

22

Gravely 08300105

SPRING, COMPRESSION

$9.49

$

Usually ships in 4-12 days

0

23

Gravely 05503100

BSHG-FLG.500X.750X.750X1.000BR

$9.99

$

In Stock, only 4 left!

0

24

Gravely 00491900

WMT, PARKING BRAKE

$155.99

$

Usually ships in 4-12 days

0

25

Gravely 00679500

ROD, BRAKE LINK .375-24 UNF

$10.99

$

Usually ships in 4-12 days

0

26

Gravely 00504900

WMT, BRAKE LEVER-LH

$

$

Not available

27

Gravely 00679600

TRUNNION, .375-24 UNF

$21.99

$

Usually ships in 4-12 days

0

28

Gravely 00476300

SPCR, FLG .32X.49X.192X1.00

$16.99

$

Usually ships in 4-12 days

0

29

Gravely 06536900

NUT-JAM CTRLK .75-16 YWZC

$5.99

$

In Stock, Qty 8

0

30

Gravely 00596500

LATCH, BRAKE LOCK

$32.99

$

Usually ships in 4-12 days

0

31

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$15.99

$

In Stock, only 4 left!

0

32

Gravely 06418100

WSHR-HDND-STL-THR.515X.97X.062

$3.99

$

In Stock, only 4 left!

0

33

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 19

0

34

Gravely 00594200

ROD, O.C. RH BRAKE

$40.99

$

Usually ships in 4-12 days

0

35

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

36

Gravely 07000036

NUT, PUSH -.75" SHAFT

$1.99

$

Usually ships in 4-12 days

0

37

Gravely 00616900

ROD, PARKING BRAKE SET (LH)

$71.99

$

Usually ships in 4-12 days

0

38

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

Usually ships in 4-12 days

0

39

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

40

Gravely 07100329

TIRE/WHL ASM,RH BAR24X12.00-12
(Superseded to 59101100)

$

$

Not available

Gravely 07100328

TIRE/WHL ASM,LH BAR24X12.00-12
(Superseded to 59101200)

$

$

Not available

41

Gravely 07000143

BLT-LUG .50-20X1.38 YWZC

$3.49

$

In Stock, Qty 20+

0

42

Gravely 07523000

GRIP,HANDLE

$5.99

$

Usually ships in 4-12 days

0

43

Gravely 05500112

BUSHING, SPLIT .75X.81X.20THK

$5.99

$

Usually ships in 4-12 days

0

44

Gravely 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

45

Gravely 06608700

KEY-WDRF .19X.75 HRD #9

$1.49

$

In Stock, Qty 20+

0

46

Gravely 05709200

RG-RTNG-EXT .625X.050

$2.49

$

Usually ships in 4-12 days

0

47

Gravely 00962700

WMT, PARKING BRAKE PIVOT, LH

$90.99

$

Usually ships in 4-12 days

0

48

Gravely 05981600

BLT-HEX .31-18X1.50 GR8YZ EP30

$3.49

$

In Stock, Qty 6

0

49

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

50

Gravely 04296751

SPACER,WHEEL MOTOR - BLK

$6.49

$

Usually ships in 4-12 days

0
