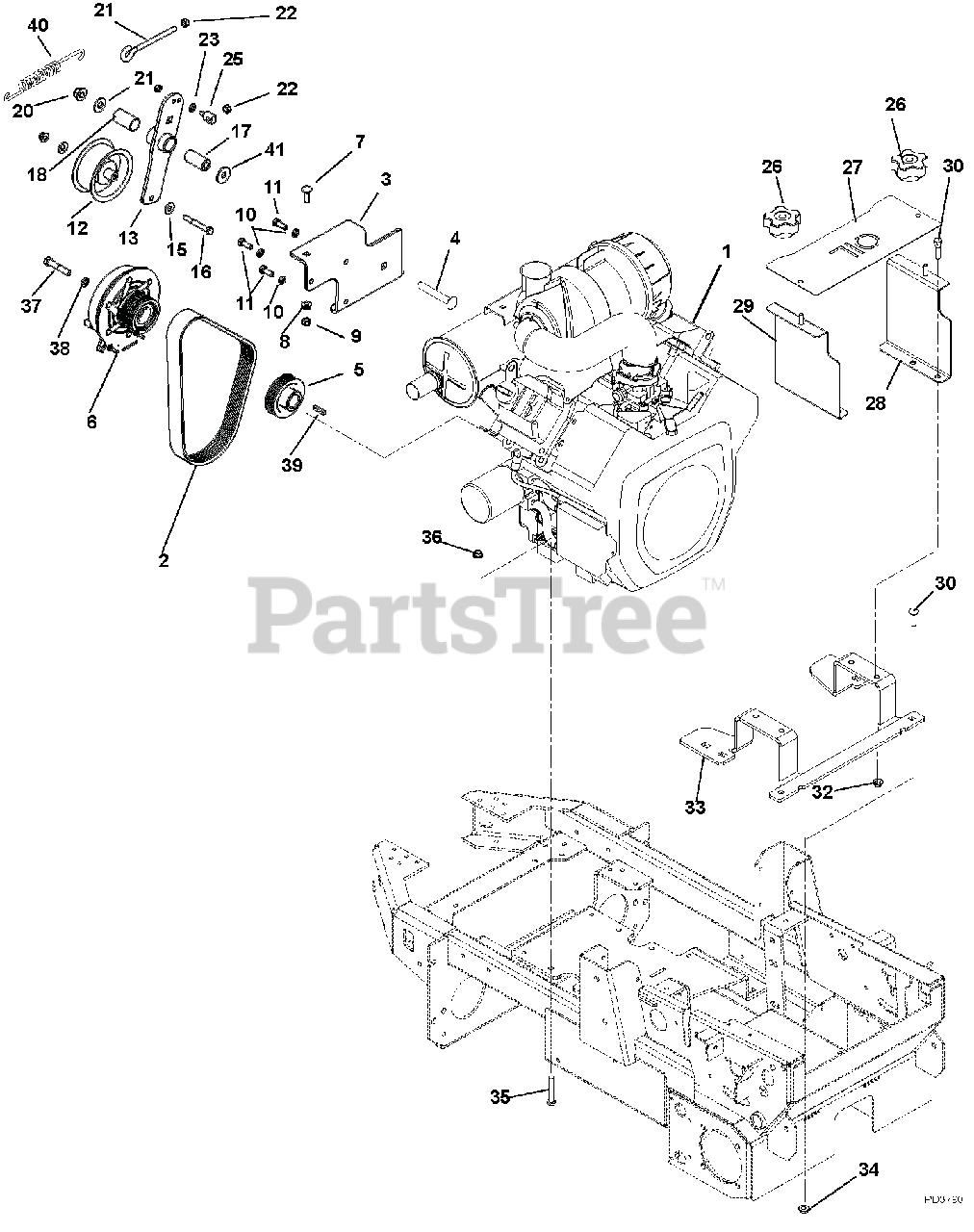

990106 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Engine and Clutch Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

Engine and Clutch Parts Diagram

  • Title

1

Gravely 08200145

ENGINE KOHLER 30 HP HORZ

$

$

Not available

2

Gravely 07200602

BELT,8 RIB POLY V,L-SECTION

$97.99

$

Usually ships in 4-12 days

0

3

Gravely 00667451

BRKT, PTO IDLER MTG.

$42.99

$

Usually ships in 4-12 days

0

4

Gravely 06225000

@BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$6.49

$

In Stock, Qty 6

0

5

Gravely 07300041

SHEAVE - POLY-V 1.127 X 3.275

$95.99

$

In Stock, only 2 left!

0

6

Gravely 04312000

CLUTCH,8 GRV POLY V,L-SECTION

$989.99

$

Usually ships in 4-12 days

0

7

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, only 3 left!

0

11

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 07327800

IDLER-FLAT 4.00X.38 (2.00 W)

Note: (2.00 wide)

$91.99

$

In Stock, Qty 20+

0

13

Gravely 00652700

ASM, IDLER PIVOT ASM

$

$

Not available

14

Gravely 00652300

WMT,PTO IDLER PIVOT ARM (OFM)

Note: (included in item 14)

$115.99

$

Usually ships in 4-12 days

0

15

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 13

0

16

Gravely 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

17

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

18

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

Note: (included in item 14)

$11.99

$

In Stock, Qty 20+

0

19

Gravely 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$1.49

$

In Stock, Qty 6

0

20

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 07001701

BOLT,EYE .38-16X4.50,.75"EYE

$14.99

$

Usually ships in 4-12 days

0

22

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 18

0

23

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 09267300

PIN, PIVOT/TRUNNION

$7.49

$

In Stock, only 3 left!

0

26

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

27

Gravely 00865151

SHROUD, COOLING

$35.99

$

In Stock, only 1 left!

0

28

Gravely 00866951

BRACKET, TANK SHROUD (LH)

$40.99

$

Usually ships in 4-12 days

0

29

Gravely 00867051

BRACKET, TANK SHROUD (RH)

$38.99

$

Usually ships in 4-12 days

0

30

Gravely 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, only 4 left!

0

31

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, only 2 left!

0

32

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 00682451

MOUNT, HYDRAULIC TANK

$

$

Not available

34

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 10

0

36

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

Usually ships in 4-12 days

0

37

Gravely 05900040

BLT-HEX .44-20X2.25 G5 YZ EP80

$7.49

$

Usually ships in 4-12 days

0

38

Gravely 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

39

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 5

0

40

Gravely 08321200

SG-TENS .135X.69X5.75 WLD 150

$22.99

$

Usually ships in 4-12 days

0

41

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0
