990106 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Fuel Tanks and Hoses Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

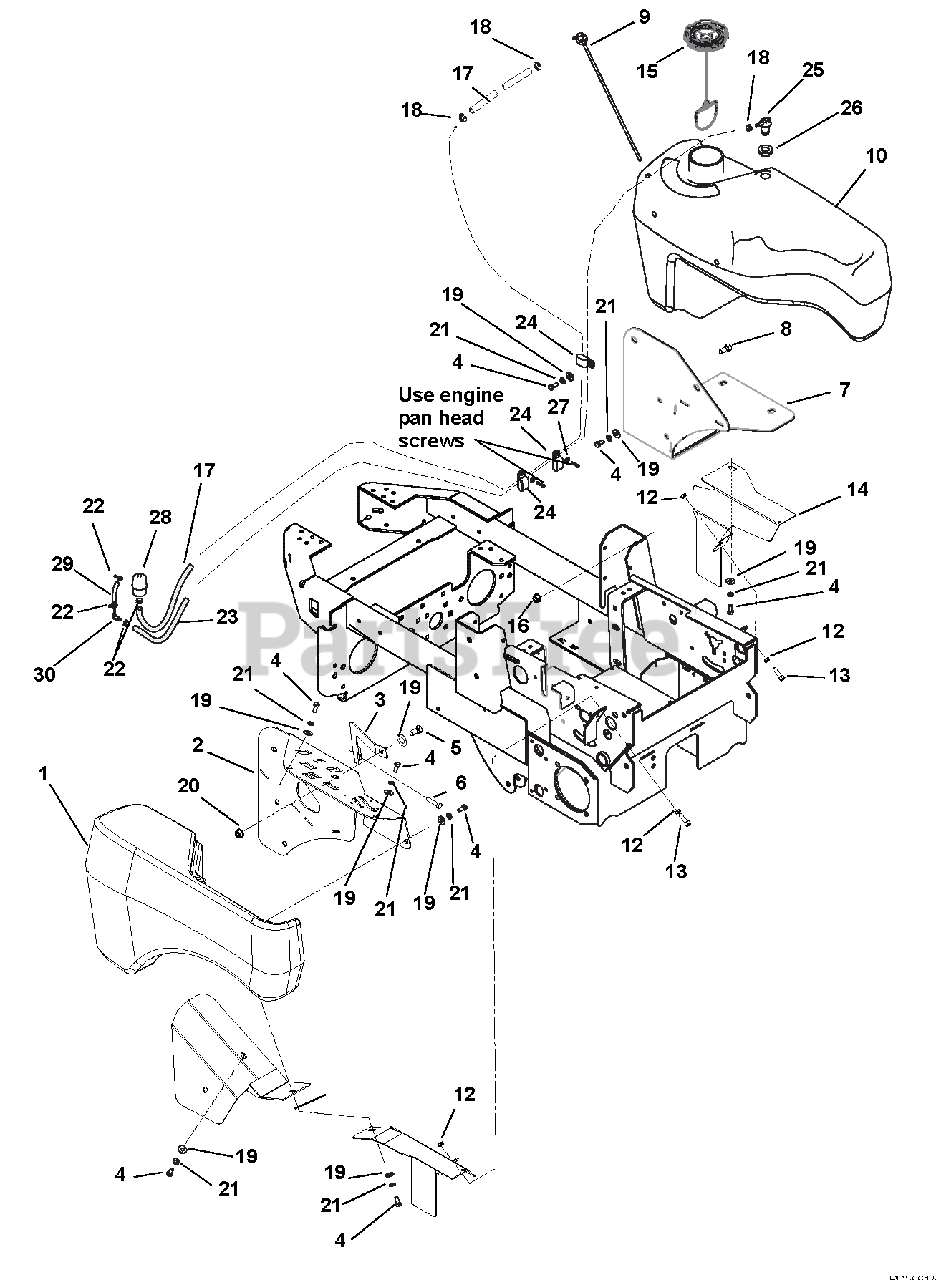

Fuel Tanks and Hoses Parts Diagram

  • Title

1

Gravely 00497400

FENDER, (RH) OUTFRONT

$

$

Not available

2

Gravely 00473951

PANEL, CONTROL

$125.99

$

Usually ships in 4-12 days

0

3

Gravely 00616851

STIFFENER, FENDER

$19.99

$

Usually ships in 4-12 days

0

4

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

5

Gravely 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

6

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

7

Gravely 00588451

BRKT, LH FUEL TANK (OUTFRONT)

Note: (Outfront)

$81.99

$

Usually ships in 4-12 days

0

8

Gravely 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

9

Gravely 04315600

ASSY,FUEL LINE W/90 DEG FTG

$21.99

$

Usually ships in 4-12 days

0

10

Gravely 04245800

TANK, LH RAPID XZ FUEL
(Superseded to 04341100)

$339.99

$

Usually ships in 4-12 days

0

11

Gravely 00672751

COVER, TIRE RH

$

$

Not available

12

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 9

0

13

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

14

Gravely 00672651

COVER, TIRE LH

$

$

Not available

15

Gravely 04237300

CAP,3.50" VENT-IN RATCHET FUEL
(Superseded to 09190300)

$33.99

$

Usually ships in 4-12 days

0

16

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 20+

0

18

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 8

0

19

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

20

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

21

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

23

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06900437

CLAMP, 5/8 INSUL TUBE YWZC

$3.49

$

Usually ships in 4-12 days

0

25

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$13.99

$

In Stock, only 2 left!

0

26

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

27

Gravely 06442300

@WSHR-FL-STL.250X.56X.049 YWZC

$1.99

$

In Stock, only 2 left!

0

28

Gravely 21539500

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

29

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$3.49

$

Usually ships in 4-12 days

0

30

Gravely 04097000

FITTING-3/16X1/4 90DEGREE VAC

$14.99

$

Usually ships in 4-12 days

0
