990106 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Hood Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

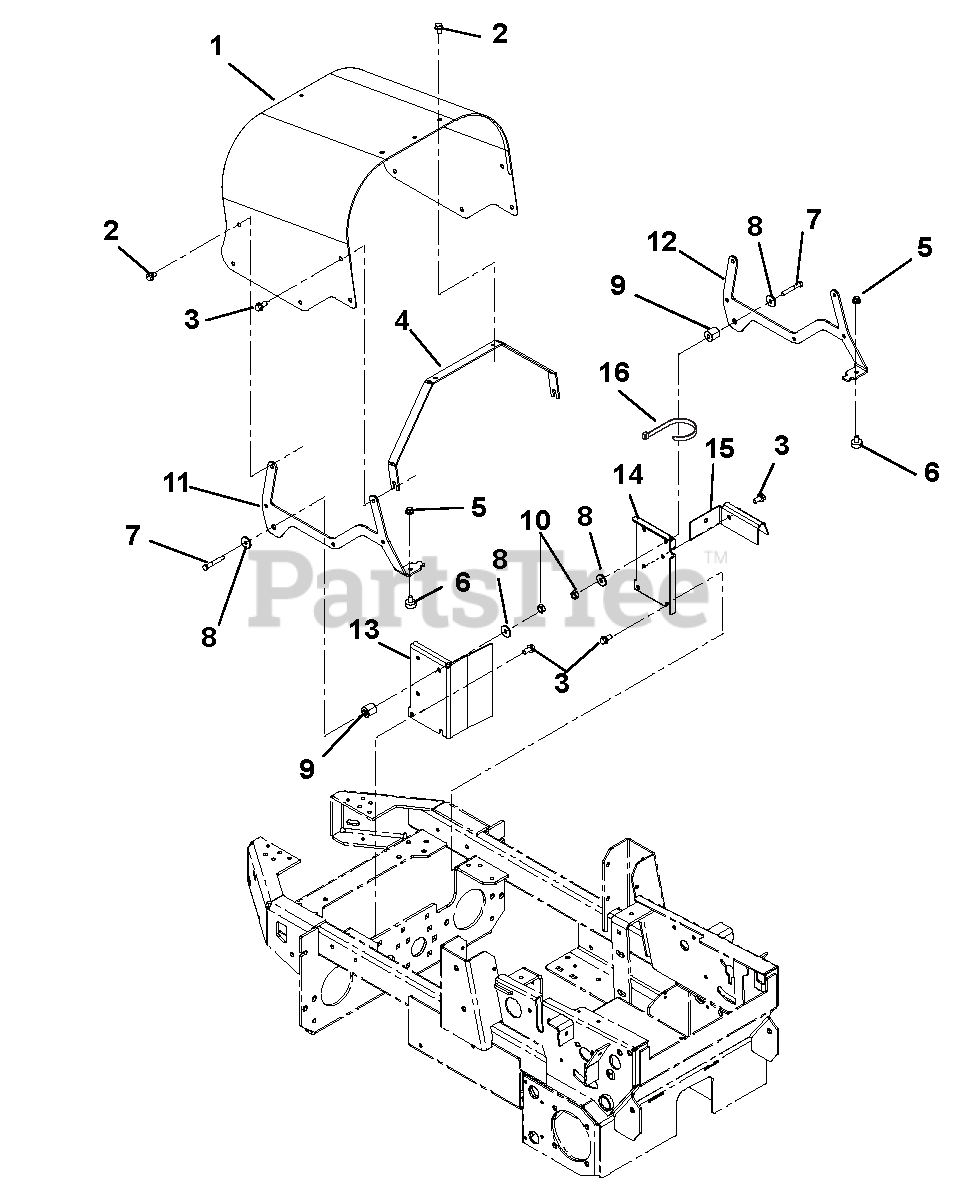

Hood Parts Diagram

  • Title

1

Gravely 00497353

HOOD, OUTFRONT

$193.99

$

Usually ships in 4-12 days

0

2

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00667553

SUPPORT, LATERAL HOOD

$28.99

$

Usually ships in 4-12 days

0

5

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

6

Gravely 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

7

Gravely 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 5

0

8

Gravely 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.99

$

In Stock, Qty 6

0

9

Gravely 00476300

SPCR, FLG .32X.49X.192X1.00

$16.99

$

Usually ships in 4-12 days

0

10

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00595653

BRACKET, LH HOOD

$50.99

$

Usually ships in 4-12 days

0

12

Gravely 00595753

BRACKET, RH HOOD

$50.99

$

Usually ships in 4-12 days

0

13

Gravely 00664151

BRACKET, HOOD SUPPORT #2 (OFM)

$16.99

$

Usually ships in 4-12 days

0

14

Gravely 00664051

BRACKET, HOOD SUPPORT #1 (OFM)

$32.99

$

Usually ships in 4-12 days

0

15

Gravely 00676851

COVER, WIRE

$6.49

$

Usually ships in 4-12 days

0

16

Gravely 07517300

CABLE TIE LG 5-1/2

Note: (Clutch wire to wire cover)

$

$

Not available
