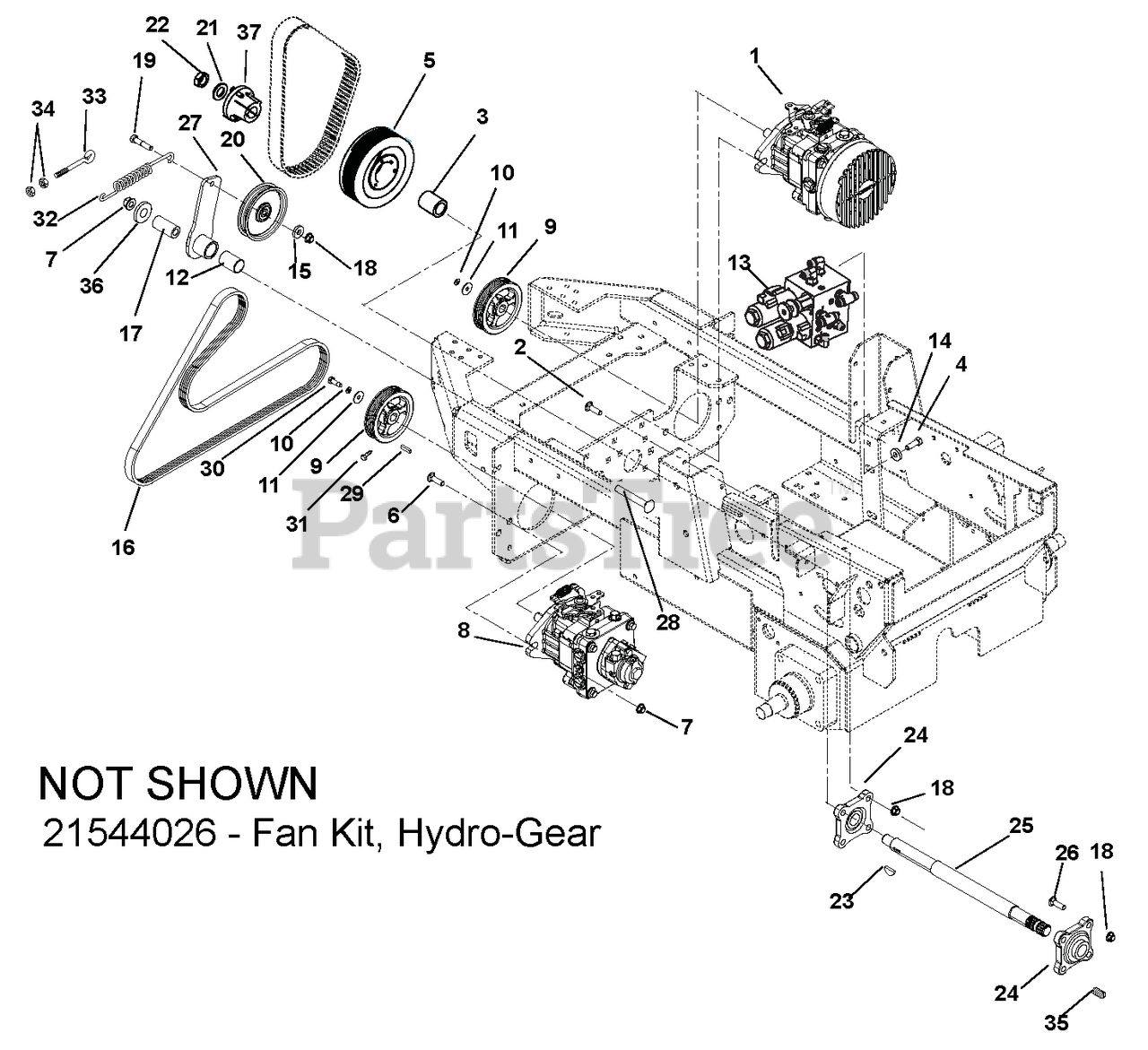

990106 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Hydrostatic Pumps and Idlers Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

Hydrostatic Pumps and Idlers Parts Diagram

  • Title

1

Gravely 00587200

PUMP, HYD. BDP-21L -LH RAPIDXZ

$1066.99

$

Usually ships in 4-12 days

0

2

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 00677100

SPCR, 1.0ID X 1.5OD X 1.81 LNG

$37.99

$

Usually ships in 4-12 days

0

4

Gravely 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

5

Gravely 07336000

PULLEY,8G POLY V,L-SECT,6.4"OD

$

$

Not available

6

Gravely 06223100

BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

7

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 00587300

PUMP,HYD.BDP21L RH/AUX RAPIDXZ

$1025.99

$

Usually ships in 4-12 days

0

9

Gravely 07300037

SHEAVE - POLY-V .671 X 4.125

$77.99

$

In Stock, only 2 left!

0

10

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

11

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, only 2 left!

0

12

Gravely 05500123

BSHG, 1.00 X 1.125 X 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 7

0

13

Gravely 00608100

VALVE,2 SPOOL MAINIFOLD BLOCK

$

$

Not available

14

Gravely 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.99

$

In Stock, Qty 6

0

15

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 07243700

POLY V-BELT, K-5 RIBS

Note: (5 RIBS)

$46.99

$

Usually ships in 4-12 days

0

17

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 15

0

18

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

20

Gravely 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$62.99

$

In Stock, Qty 16

0

21

Gravely 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 15

0

22

Gravely 06536900

NUT-JAM CTRLK .75-16 YWZC

$5.99

$

In Stock, Qty 8

0

23

Gravely 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, only 4 left!

0

24

Gravely 05400015

BEARING, 1"ID 4BOLT-TRASH SEAL

$41.99

$

Usually ships in 4-12 days

0

25

Gravely 00887700

SHAFT, PTO JACK SHAFT RAPIDXZ

$213.99

$

In Stock, only 1 left!

0

26

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

27

Gravely 00349100

ASM, IDLER PIVOT ARM

$63.99

$

In Stock, only 1 left!

0

28

Gravely 06225000

@BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$5.99

$

In Stock, only 1 left!

0

29

Gravely 06611300

KEY, SQ 5 X 5 X 30MM PLAIN

$2.49

$

In Stock, Qty 8

0

30

Gravely 05975900

@BLT-HEX M6-1X16 YWZC
(Superseded to 05902026)

$0.99

$

In Stock, only 2 left!

0

31

Gravely 05980100

SCR-SKH .25-20 X .50 PH & OIL
(Superseded to 05900127)

$3.99

$

In Stock, only 2 left!

0

32

Gravely 08321200

SG-TENS .135X.69X5.75 WLD 150

$21.99

$

Usually ships in 4-12 days

0

33

Gravely 07030000

BLT-EYE .375-16X2.50 YWZC

$7.99

$

In Stock, only 1 left!

0

34

Gravely 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

35

Gravely 06000003

SCREW, SET .25-28X.38

$3.49

$

Usually ships in 4-12 days

0

36

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 14

0

37

Gravely 07336100

BUSHING,TAPER, 1" SHAFT

$113.99

$

Usually ships in 4-12 days

0

38

Gravely 21544026

FAN KIT HYDRO-GEAR 71287

Note: NOT SHOWN

$32.99

$

Usually ships in 4-12 days

0
