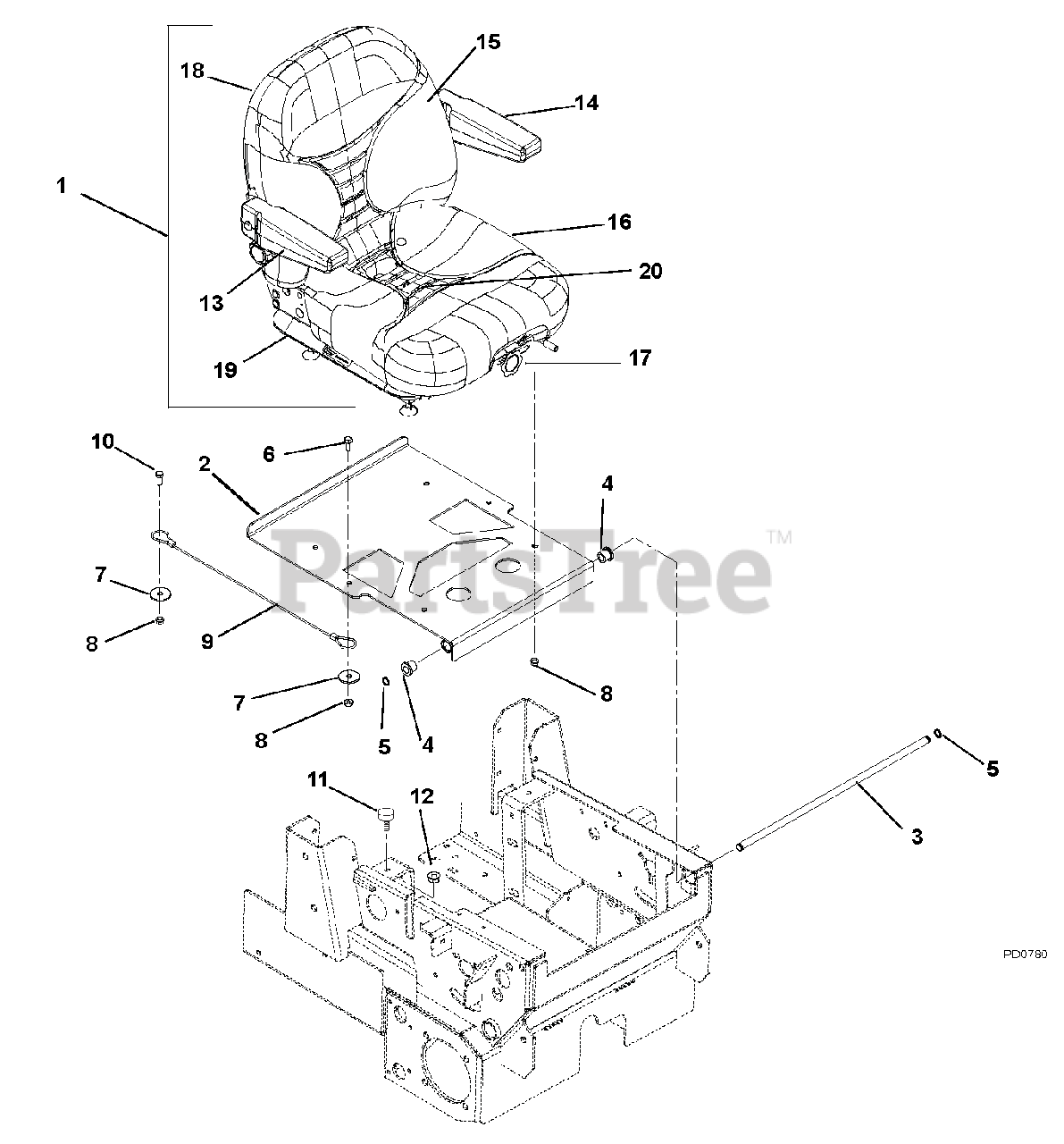

990106 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Seat Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

Seat Parts Diagram

  • Title

1

Gravely 03947200

SEAT-SUSP-LT GRY-SEAT BLT BUSH

Note: (Includes items 13 - 20)

$905.99

$

Usually ships in 4-12 days

0

2

Gravely 00474151

WMT, SEAT PIVOT PLATE

$

$

Not available

3

Gravely 00587700

ROD, SEAT PIVOT (OUTFRONT)

Note: (Outfront)

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, Qty 9

0

5

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

7

Gravely 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.99

$

In Stock, Qty 6

0

8

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

9

Gravely 06900010

CABLE, SEAT PROP.

$50.99

$

Usually ships in 4-12 days

0

10

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

11

Gravely 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

12

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

13

Gravely 59210400

KIT-RH ARMREST ASSEMBLY REPLAC

$129.99

$

Usually ships in 4-12 days

0

14

Gravely 59210500

KIT-LH ARMREST ASSEMBLY REPLAC

$129.99

$

Usually ships in 4-12 days

0

15

Gravely 59208800

KIT-BACK CUSHION-LIGHT GRAY

$423.99

$

Usually ships in 4-12 days

0

16

Gravely 59208900

KIT-SEAT CUSHION-LIGHT GRAY

$258.99

$

In Stock, only 3 left!

0

17

Gravely 59208000

KIT-SEAT KNOB

$33.99

$

Usually ships in 4-12 days

0

18

Gravely 59208100

KIT-SEAT BACK PANEL

$175.99

$

Usually ships in 4-12 days

0

19

Gravely 59207900

KIT-SEAT SLIDE

$

$

Not available

20

Gravely 59207800

KIT-SPRING AND SADDLE

$175.99

$

In Stock, only 1 left!

0
