990106 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Steering Levers and Linkages Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

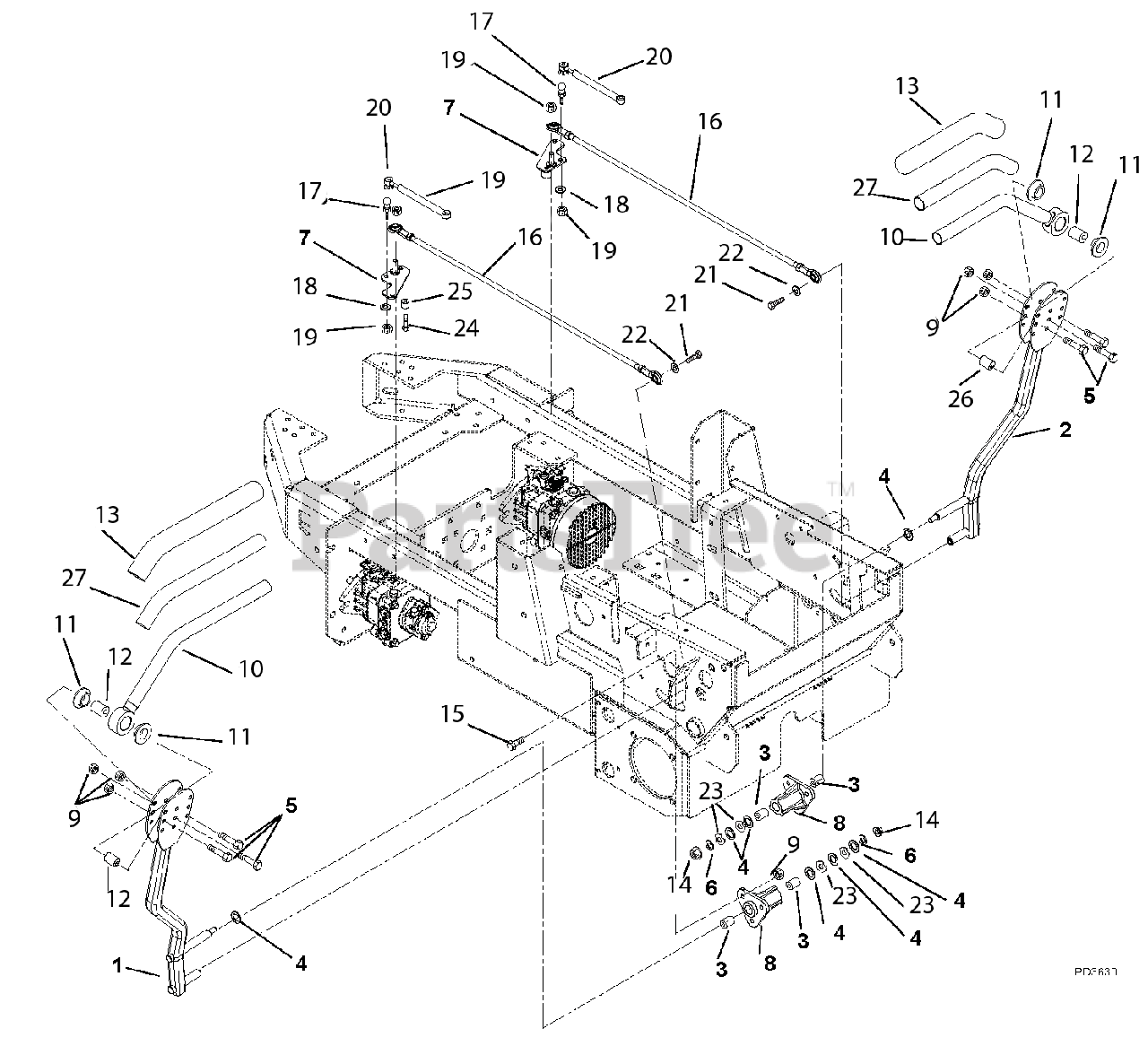

Steering Levers and Linkages Parts Diagram

  • Title

1

Gravely 00585051

WMT, BENT STEERING ARM-RH

$136.99

$

Usually ships in 4-12 days

0

2

Gravely 00472951

WMT, BENT STEERING ARM-LH

$135.99

$

Usually ships in 4-12 days

0

3

Gravely 05436800

BSHG .625X.750X.500

$9.99

$

In Stock, only 4 left!

0

4

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

6

Gravely 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

7

Gravely 00492400

WMT, RTN/DAMPER/STEERING (OF)

$82.99

$

Usually ships in 4-12 days

0

8

Gravely 09294600

BUSHING, FLANGE

$34.99

$

Usually ships in 4-12 days

0

9

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

10

Gravely 09235500

HANDLE WLDMT LH

$83.99

$

In Stock, Qty 5

0

Gravely 09235600

WLDMT, RH HANDLE

$90.99

$

In Stock, only 1 left!

0

11

Gravely 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 09235400

SPACER .328 X .76 X 1.01

$20.99

$

In Stock, only 1 left!

0

13

Gravely 03929100

GRIP, HANDLEBAR 1.00X1.38X11.3

$15.99

$

In Stock, only 2 left!

0

14

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

16

Gravely 00587500

ASSY, STEERING ROD .38 ROD

$41.99

$

Usually ships in 4-12 days

0

17

Gravely 03652200

STUD- BALL

$3.49

$

In Stock, Qty 7

0

18

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

20

Gravely 09273400

DAMPER, CONTROL

$64.99

$

In Stock, Qty 13

0

21

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 17

0

22

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 03704900

WAVE WASHER .640X.875X.125FH

$2.49

$

In Stock, only 4 left!

0

24

Gravely 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

25

Gravely 03101900

SPACER .318X.430X.375

$5.99

$

Usually ships in 4-12 days

0

26

Gravely 05500932

BSHG, ECCENTRIC .328X.750X.970

$1.49

$

In Stock, Qty 20+

0

27

Gravely 03988300

TUBE, .88ID X 1.00OD X 10.25

$14.99

$

In Stock, only 2 left!

0
