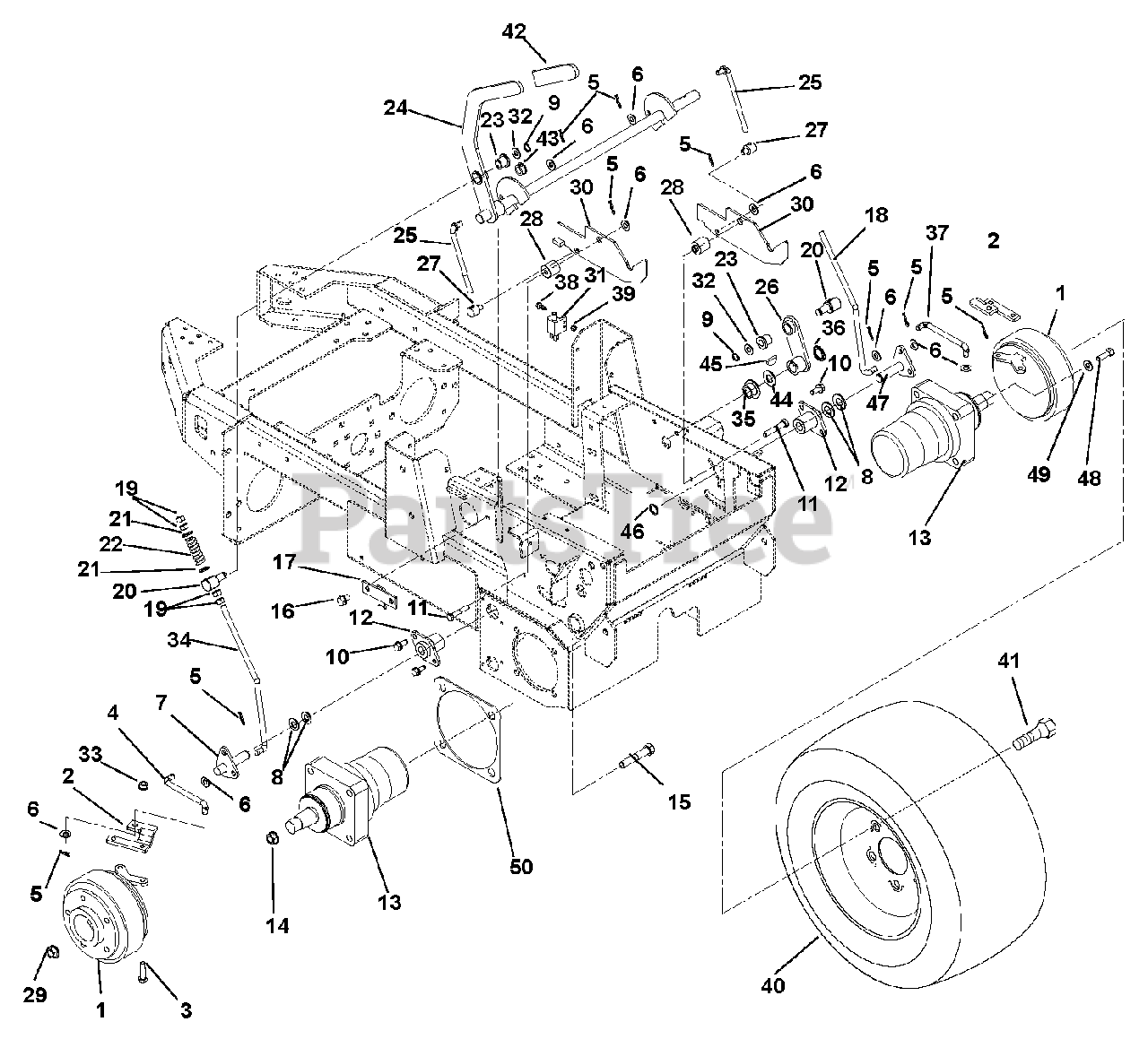

990107 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Brake Linkage Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

Brake Linkage Parts Diagram

  • Title

1

Gravely 00602500

Assembly, Brake

$732.99

$

Usually ships in 4-12 days

0

2

Gravely 00668251

Extension, Brake

$27.99

$

Usually ships in 4-12 days

0

3

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

4

Gravely 00619400

Rod, Parking Brake Set Right Ha

$82.99

$

Usually ships in 4-12 days

0

5

Gravely 06714800

Pin, Hair, ENDRIES #25
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

6

Gravely 06436200

Washer, Flat Steel .406 x .812 x .0
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 00962800

Weldment, Pivot RH

$

$

Not available

8

Gravely 06430300

Washer, Flat Steel .656 x 1.250 x

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05717100

Ring, Retaining External .500 x .0

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 07414400

Screw, Tapping .31-18 x .75 Hex Washer Head Thread
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0

11

Gravely 05957400

Bolt, Hex .31-18X1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

12

Gravely 05534700

Bushing, Flang

$21.99

$

Usually ships in 4-12 days

0

13

Gravely 04073900

Motor, Parker TF0360LS080AAWN

$

$

Not available

14

Gravely 06543600

Nut, Nyloc Flange .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07067200

Bolt, Wheel Motor .50-13 x 2.75

$17.99

$

In Stock, only 3 left!

0

16

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread Rolli
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

17

Gravely 00497851

Weldment, Parking Brake Hold Down

$8.49

$

Usually ships in 4-12 days

0

18

Gravely 00604800

Rod, O.C. Left Hand Brake

$77.99

$

Usually ships in 4-12 days

0

19

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

20

Gravely 00698600

Trunnion, Pivot

$90.99

$

Usually ships in 4-12 days

0

21

Gravely 05500041

Bushing, Flange .39 x .53 x .38 x 1.00

$

$

Not available

22

Gravely 08300105

Spring, Compressi

$9.49

$

Usually ships in 4-12 days

0

23

Gravely 05503100

Bushing, Flange .500 x .750 x .750 x 1.000 Bracket

$9.99

$

In Stock, only 4 left!

0

24

Gravely 00491900

Weldment, Parking Brake

$155.99

$

Usually ships in 4-12 days

0

25

Gravely 00679500

Rod, Brake Link .375-24 UNF

$10.99

$

Usually ships in 4-12 days

0

26

Gravely 00504900

Weldment, Brake Lever - Left H

$

$

Not available

27

Gravely 00679600

Trunnion, .375-24 UNF

$21.99

$

Usually ships in 4-12 days

0

28

Gravely 00476300

Spacer, Neutral Latch

$16.99

$

Usually ships in 4-12 days

0

29

Gravely 06536900

Nut, Jam Center Lock .75-16

$5.99

$

In Stock, Qty 8

0

30

Gravely 00596500

Latch, Brake Lock

$32.99

$

Usually ships in 4-12 days

0

31

Gravely 03606600

Switch, Double Pole N.O./N.O.

$15.99

$

Usually ships in 4-12 days

0

32

Gravely 06418100

Washer, Hardened Steel THR.515 x .97 x .062

$3.99

$

In Stock, only 4 left!

0

33

Gravely 06545400

Nut, .31-18 Nyloc Flang
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 00594200

Rod, O.C. Right Hand Brak

$40.99

$

Usually ships in 4-12 days

0

35

Gravely 05518400

Bushing, Flange .762 x 1.0 x .580 x 1.48 Nylo

$4.99

$

In Stock, Qty 20+

0

36

Gravely 07000036

Push Nut, .745 Shaft

$1.99

$

Usually ships in 4-12 days

0

37

Gravely 00616900

Rod, Parking Brake Set Left Han

$71.99

$

Usually ships in 4-12 days

0

38

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 1 left!

0

39

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

40

Gravely 07100329

Right Hand Bar Tire, 24 x 12-12
(Superseded to 59101100)

$

$

Not available

Gravely 07100328

Left Hand Bar Tire, 24 x 12-12
(Superseded to 59101200)

$

$

Not available

41

Gravely 07000143

Bolt, Lug Grade 8; .50-20 UNF x 1.38 YWZC

$3.49

$

In Stock, Qty 20+

0

42

Gravely 07523000

Grip, Handl

$5.99

$

Usually ships in 4-12 days

0

43

Gravely 05500112

Bushing, Split .75 x .81 x .20 THK

$5.99

$

Usually ships in 4-12 days

0

44

Gravely 06413400

Washer, Hardened Thrust .758 x 1.23 x .031

$3.49

$

In Stock, only 2 left!

0

45

Gravely 06608700

Key, Woodruff .19 x .75 HRD#9

$1.49

$

In Stock, Qty 20+

0

46

Gravely 05709200

Ring, Retaining External .625 x .0

$2.49

$

Usually ships in 4-12 days

0

47

Gravely 00962700

Weldment, Pivot LH

$90.99

$

Usually ships in 4-12 days

0

48

Gravely 05981600

Bolt, Hex .31-18 x 1.50 Grade 8 EP30

$3.49

$

In Stock, Qty 6

0

49

Gravely 06308600

Washer, Lock .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

50

Gravely 04296751

Spacer, Wheel Motor Black

$6.49

$

Usually ships in 4-12 days

0
