990107 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Frame Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

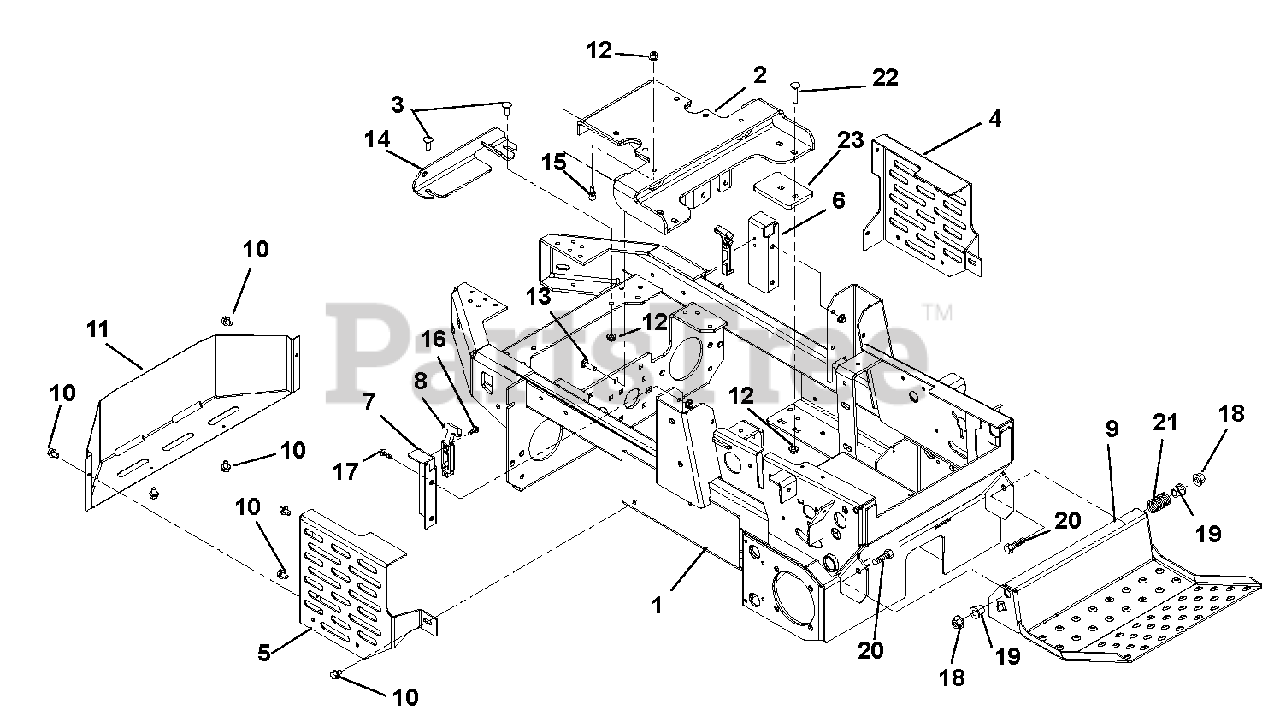

Frame Parts Diagram

  • Title

1

Gravely 04258253

Weldment, Frame

$3224.99

$

Usually ships in 4-12 days

0

2

Gravely 00601451

Plate, Kohler Engine Mounting

$238.99

$

Usually ships in 4-12 days

0

3

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 00668151

Guard, Hose Fitting - Left Hand

$43.99

$

Usually ships in 4-12 days

0

5

Gravely 00666451

Guard, Hose Fitting - Right Hand

$43.99

$

Usually ships in 4-12 days

0

6

Gravely 00664951

Bracket, Left Hand Hood Mounting

$

$

Not available

7

Gravely 00665051

Bracket, Right Hand Hood Mounting

$25.99

$

Usually ships in 4-12 days

0

8

Gravely 09079500

Latch, Rubber

$34.99

$

In Stock, only 1 left!

0

9

Gravely 00589153

Weldment, Foot Plate

$102.99

$

Usually ships in 4-12 days

0

10

Gravely 00589153

Screw, Tapping .38-16 x .75 Hex Washer Head

$102.99

$

Usually ships in 4-12 days

0

11

Gravely 07415400

Guard, Pump Belt
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 04304851

Nut, .38-16 Nyloc Flange

$36.99

$

Usually ships in 4-12 days

0

13

Gravely 06545500

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 00390951

Weldment, Clutch Stop

$90.99

$

Usually ships in 4-12 days

0

15

Gravely 03652200

Stud, Ball

$3.49

$

In Stock, Qty 10

0

16

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

18

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05527200

Bushing, Flange .515 x .746 x 1.290 x 1.000

$28.99

$

Usually ships in 4-12 days

0

20

Gravely 05961000

Bolt, Hex .50-13 x 2.25 Grade 5
(Superseded to 05901835)

$3.49

$

In Stock, Qty 9

0

21

Gravely 08329100

Spring, Compression .085 x .80 x 1.00 WLD36

$13.99

$

In Stock, only 2 left!

0

22

Gravely 06223800

Bolt, Round Head Square Neck .38-16 x 1.75 Grade 5
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

23

Gravely 00606051

Strap, Engine Mounting Support

$12.99

$

Usually ships in 4-12 days

0
