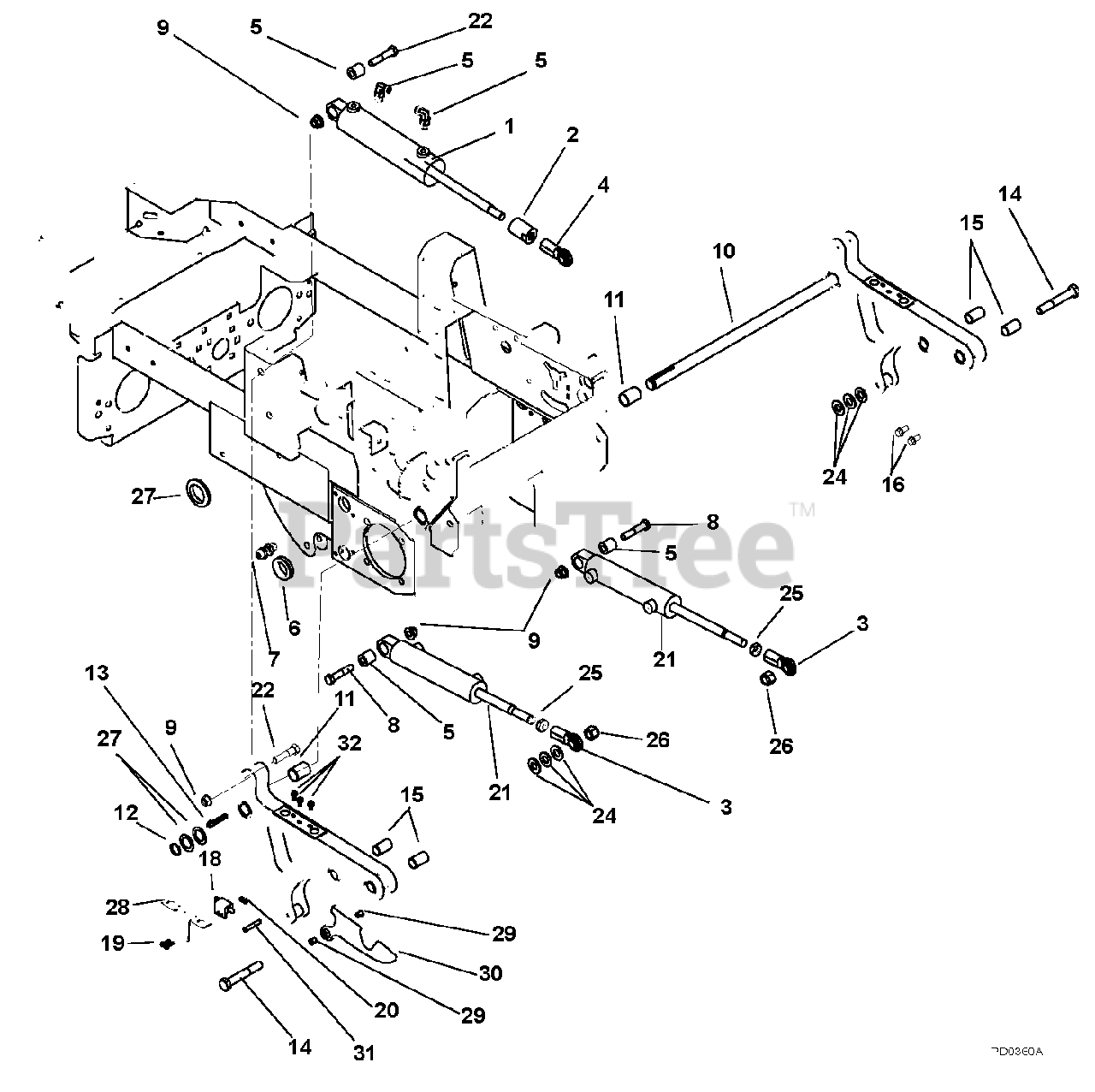

990107 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Weight Transfer Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

Weight Transfer Parts Diagram

  • Title

1

Gravely 00585100

Cylinder, Hydraulic Deck Lift

$242.99

$

Usually ships in 4-12 days

0

2

Gravely 04319700

Spacer, Cylinder Stop 1.50 x 2.00

$37.99

$

Usually ships in 4-12 days

0

3

Gravely 09221600

Rod End, 5/8 Right Hand - Female

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 07000045

Adapter, Hydraulic Fitting 90 M4F-M6O

$17.99

$

Usually ships in 4-12 days

0

5

Gravely 09215200

Bushing, .516 x 1.000 x 1.050

$34.99

$

Usually ships in 4-12 days

0

6

Gravely 07536800

Grommet, 1.25

$12.99

$

Usually ships in 4-12 days

0

7

Gravely 07000044

Fitting, Hydraulic Bulkhead M4F-M4F

$

$

Not available

8

Gravely 05961000

Bolt, Hex .50-13 x 2.25 Grade 5
(Superseded to 05901835)

$3.49

$

In Stock, Qty 9

0

9

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 04263600

Weldment, Main Arm Assembly w/Shaft

$358.99

$

Usually ships in 4-12 days

0

11

Gravely 05500034

Bushing, 1.00 ID x 1.125 OD x 1.50

$6.99

$

In Stock, only 3 left!

0

12

Gravely 05707300

Ring, Retaining External 1.00 x .078

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 00512500

Key, Straight .25 x 1.50

$

$

Not available

14

Gravely 05901501

Bolt, Hex .62-11 x 4.0 Grade 5 YWZC

$

$

Not available

15

Gravely 05400717

Bearing, .75 x .875 x 1.50

$

$

Not available

16

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head Thread Rolli
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 04272000

Weldment, Lift Arm

Note: NOT SHOWN

$315.99

$

Usually ships in 4-12 days

0

18

Gravely 03657100

Switch, Single Pole N.O.

$9.49

$

In Stock, Qty 8

0

19

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 1 left!

0

20

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

21

Gravely 09264800

Cylinder, Hydraulic Lift
(Superseded to 04864700)

$516.99

$

Usually ships in 4-12 days

0

22

Gravely 05966600

Bolt, Hex .50-13 x 2.50 Grade 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

23

Gravely 07500017

Grommet, 2.00"

$5.49

$

Usually ships in 4-12 days

0

24

Gravely 06442800

Washer, Flat Steel .656 x 1.31 x .095 YWZ
(Superseded to 06401118)

$2.49

$

In Stock, Qty 20+

0

25

Gravely 06539600

Nut, Jam .625-18

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 06540700

Nut, Nyloc .625-11 YWZC

$3.99

$

In Stock, Qty 16

0

27

Gravely 06435300

Washer, Hardened Thrust 1.00 x 1.55 x .03

$4.99

$

In Stock, only 4 left!

0

28

Gravely 04229753

Bracket, Switch

$

$

Not available

29

Gravely 05501040

Bushing, Flange Split Nylon

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 04228153

Weldment, Rocker Arm Switch

$

$

Not available

31

Gravely 05800206

Pin, Roll 5/16 x 7/8

$

$

Not available

32

Gravely 07400034

Screw, Tapping Hex Washer HD .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
