990107 - Simplicity Roticul Deluxe Tiller, 3hp DELUX ROTICUL MFR. NO. 107 Parts Diagram

Roticul Deluxe Tiller, 3hp

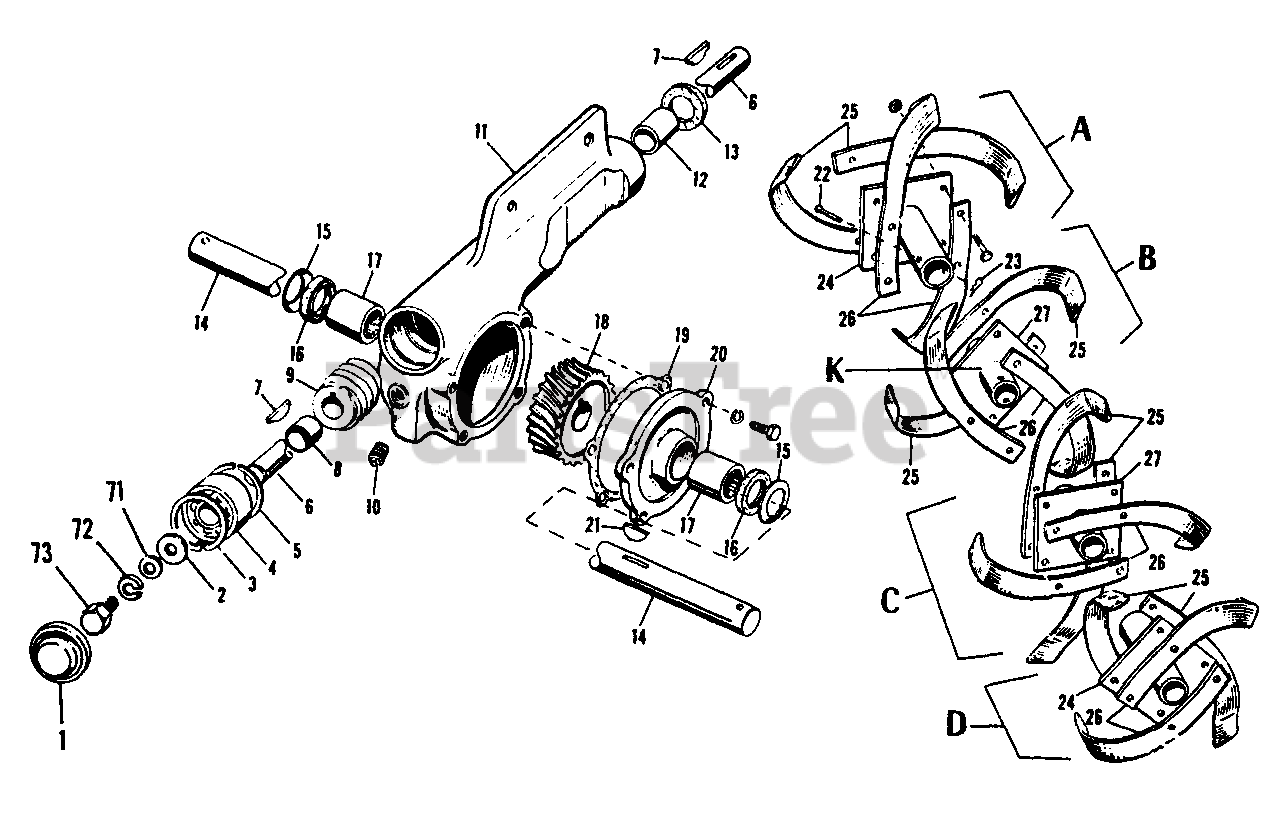

DELUX ROTICUL MFR. NO. 107 Parts Diagram

  • Title

1

Simplicity 1181-79

Cup

$

$

Not available

2

Simplicity 1181-78

Washer

$

$

Not available

3

Simplicity 1180-61

Retaining Ring

$

$

Not available

4

Simplicity 2118011SM

Ball Bearing

$

$

Not available

5

Simplicity 1180-94

Snap Ring

$

$

Not available

6

Simplicity 118177

Worm Shaft

$

$

Not available

7

Simplicity 725502

Key, Hi-Pro #706

$

$

Not available

8

Simplicity 1180-60

Spacer

$

$

Not available

9

Simplicity 118016

Worm

$

$

Not available

10

Simplicity 2726003

Pipe Plug, 3/8" Std.

$

$

Not available

11

Simplicity 118069

Worm Drive Housing

$

$

Not available

12

Simplicity 118072

Bushing

$

$

Not available

13

Simplicity 2118117SM

Oil Seal

$13.99

$

Usually ships in 2-12 days

0

14

Simplicity 118021

Worm Gear Shaft

$

$

Not available

15

Simplicity 2118082SM

Washer

$2.99

$

Usually ships in 2-12 days

0

16

Simplicity 2118118SM

Oil Seal

$10.99

$

In Stock, only 1 left!

0

17

Simplicity 2118020SM

Needle Bearing

$31.99

$

Usually ships in 2-12 days

0

18

Simplicity 2118022SM

Worm Gear

$286.99

$

Usually ships in 2-12 days

0

19

Simplicity 2118024SM

Gasket

$12.99

$

In Stock, only 1 left!

0

20

Simplicity 118070

Cover

$

$

Not available

21

Simplicity 2725005

Key, Woodruff, 1/4" x 3/4"

$

$

Not available

22

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

23

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

24

Simplicity 118046

Plate Assembly, Tine Outer

$

$

Not available

25

Simplicity 1729271SM

Blade, L. H. Tine

$

$

Not available

26

Simplicity 1729272SM

Blade, R.H. Tine

$28.99

$

Usually ships in 2-12 days

0

27

Simplicity 118084

Plate Assembly, Tine Inner

$

$

Not available

71

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

72

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

73

Simplicity 2715004

Capscrew, Hex Head, 3/8-16 x 3/4"

$

$

Not available
