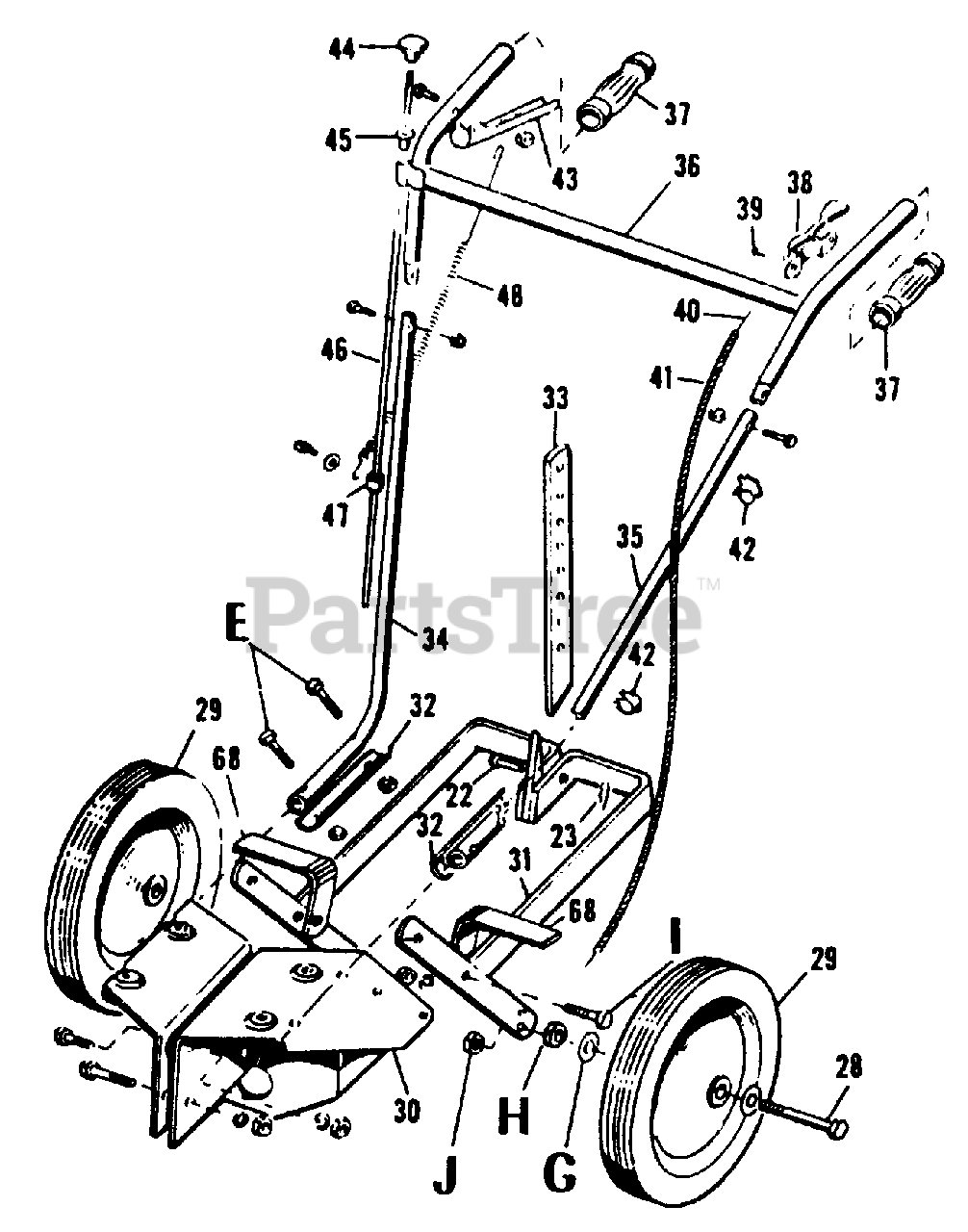

990107 - Simplicity Roticul Deluxe Tiller, 3hp DELUX ROTICUL MFR. NO. 107 - Diagram 2 Parts Diagram

Roticul Deluxe Tiller, 3hp

DELUX ROTICUL MFR. NO. 107 - Diagram 2 Parts Diagram

  • Title

28

Simplicity 2705037

Capscrew, Hex Head, 1/2-13 NC x 3-1/4" lg.

$

$

Not available

29

Simplicity 118030

Wheel and Tire Assembly

$

$

Not available

30

Simplicity 118076

Bracket Assembly, Engine

$

$

Not available

31

Simplicity 118077

Frame Assembly, Rear

$

$

Not available

32

Simplicity 118119

Support, Handle

$

$

Not available

33

Simplicity 118081

Bar, Depth

$

$

Not available

34

Simplicity 118096

Handle, R.H. Lower

$

$

Not available

35

Simplicity 118097

Handle, L.H. Lower

$

$

Not available

36

Simplicity 118098

Handle Assembly, Upper

$

$

Not available

37

Simplicity 2153043

Grip, Handle

$

$

Not available

38

Simplicity 8061087

Control, Throttle Lever

$

$

Not available

39

Simplicity 714005

Screw, Rd. Hd., Self-Tapping #10-24 x 1/2" lg.

$

$

Not available

40

Simplicity 118115

Throttle Wire

$

$

Not available

41

Simplicity 118114

Throttle Cable

$

$

Not available

42

Simplicity 80611-08

Cable Clip

$

$

Not available

43

Simplicity 1180-56

Clutch Grip

$

$

Not available

44

Simplicity 2118104

Knob, Reverse

$

$

Not available

45

Simplicity 118102

Bushing

$

$

Not available

46

Simplicity 118103

Rod, Reverse

$

$

Not available

47

Simplicity 118129

Collar

$

$

Not available

48

Simplicity 118128

Spring, Clutch Lever

$

$

Not available
