990107 - Simplicity Roticul Deluxe Tiller, 3hp DELUX ROTICUL MFR. NO. 107 - Diagram 3 Parts Diagram

Roticul Deluxe Tiller, 3hp

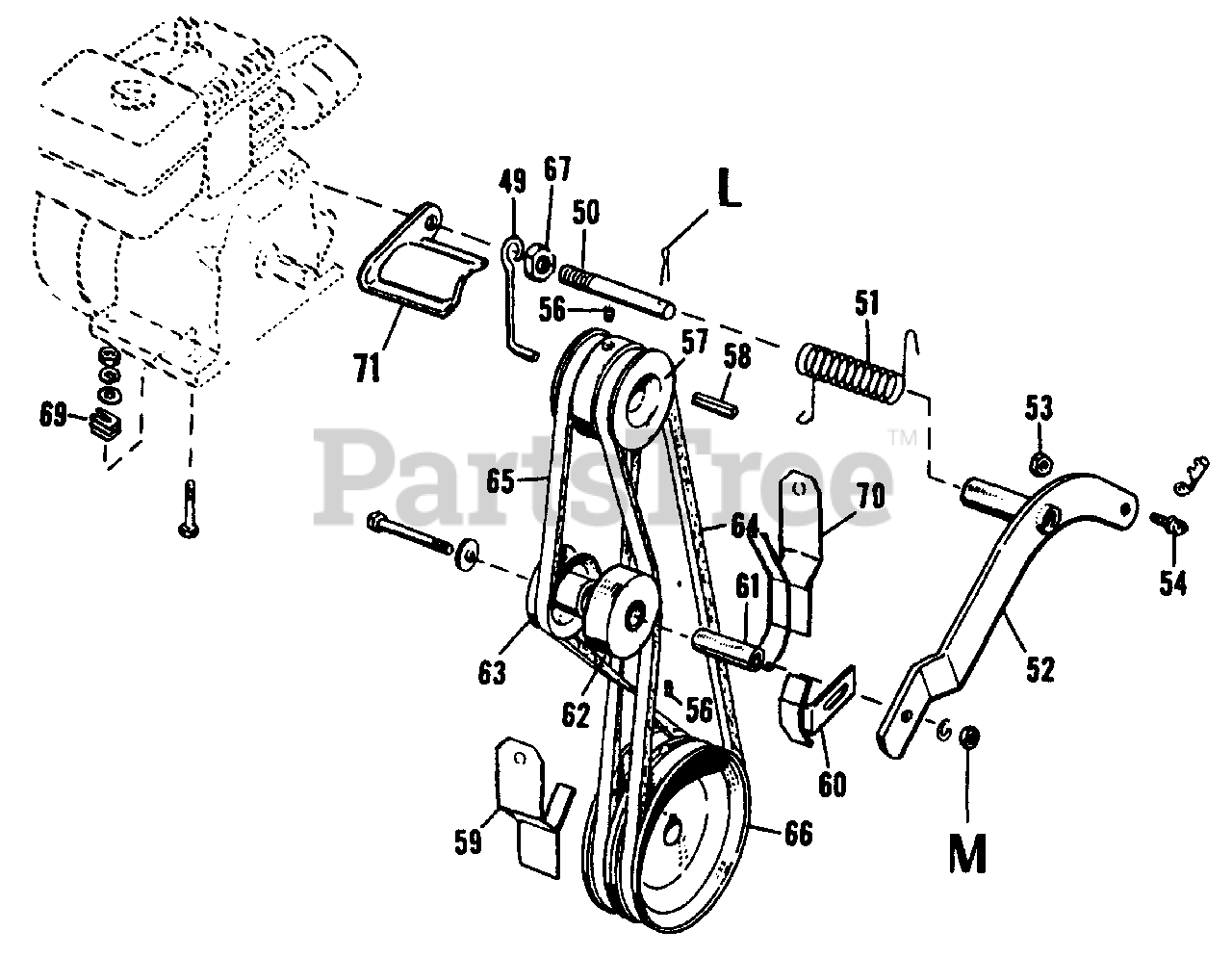

DELUX ROTICUL MFR. NO. 107 - Diagram 3 Parts Diagram

  • Title

49

Simplicity 118036

Belt Stop

$

$

Not available

50

Simplicity 118089

Stud, Engine

$

$

Not available

51

Simplicity 118110

Spring, Idler Lever

$

$

Not available

52

Simplicity 118086

Lever Assembly, Idler

$

$

Not available

53

Simplicity 2717513

Hex Nut, Full Lock, 1/4-20 NC

$

$

Not available

54

Simplicity 118109

Screw, Eye

$

$

Not available

55

Simplicity 118108

Clip, Rod Clevis

$

$

Not available

56

Simplicity 2713503

Set Screw, Hex Socket, Cup Point, 5/16-18

$

$

Not available

57

Simplicity 118095

Drive Pulley

$

$

Not available

58

Simplicity 2805850SM

Key

$2.49

$

Usually ships in 2-12 days

0

59

Simplicity 118191

Belt Guard

$

$

Not available

60

Simplicity 118192

Belt Retainer

$

$

Not available

61

Simplicity 118093

Spacer

$

$

Not available

62

Simplicity 101002

Pulley Assembly, Idler

$

$

Not available

63

Simplicity 118090

Pulley Assembly, Idler Reverse

$

$

Not available

64

Simplicity 2118068

"V" Belt, Forward

$

$

Not available

65

Simplicity 2118116

"V" Belt, Reverse

$

$

Not available

66

Simplicity 118112

Pulley, Driven

$

$

Not available

67

Simplicity 2717016

Hex Nut, Jam, 1/2-20 NF

$

$

Not available

68

Simplicity 118135

Scraper

$

$

Not available

69

Simplicity 2118130

Shim

$

$

Not available

70

Simplicity 118190

Guard Assembly, Reverse Belt

$

$

Not available

71

Simplicity 118180

Guard Belt

$

$

Not available
