990117 - Simplicity 30" Reel Mower Attachment Reel Mower Group (3584I01) Parts Diagram

30" Reel Mower Attachment

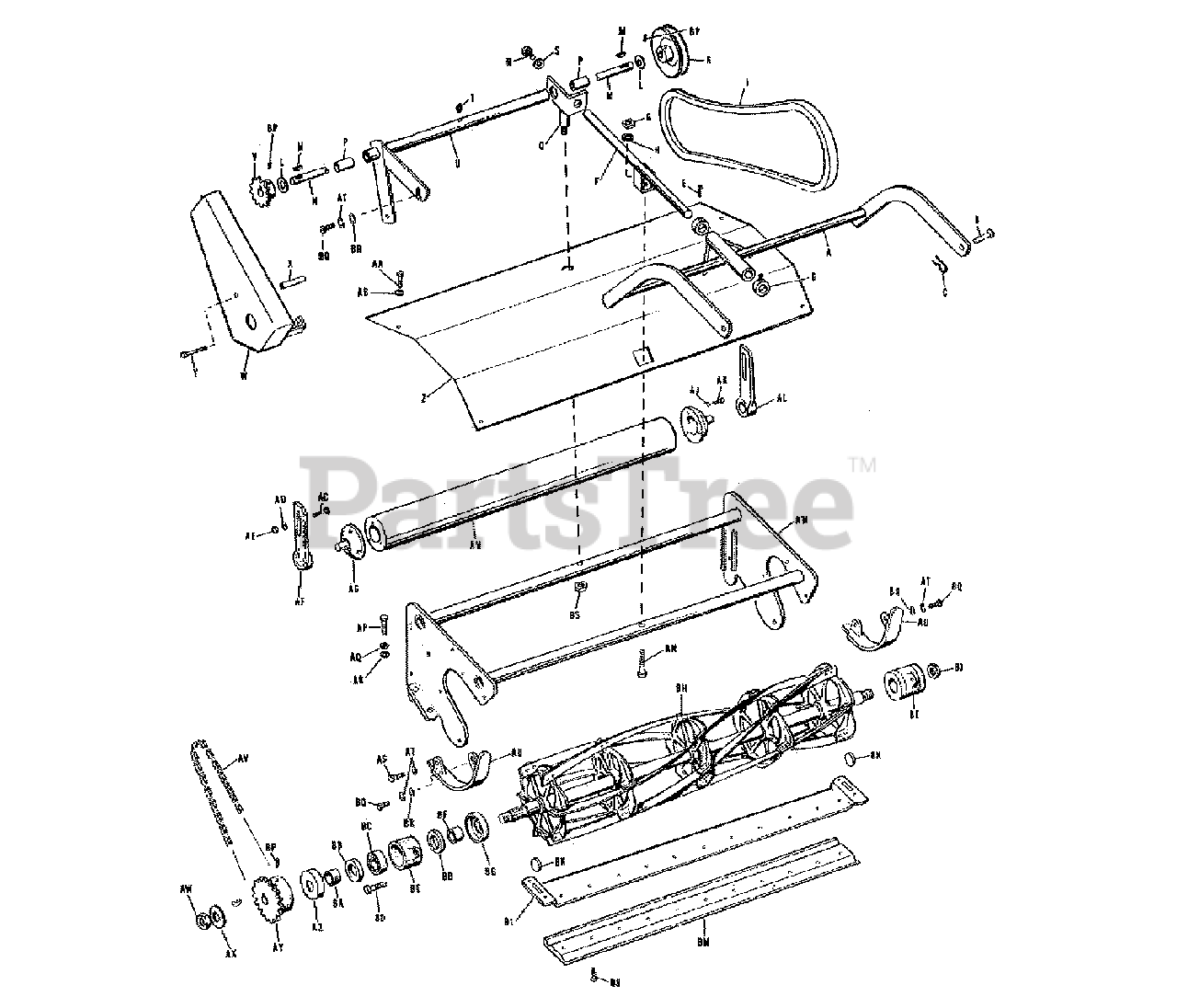

Reel Mower Group (3584I01) Parts Diagram

  • Title

A

Simplicity 109040

HITCH ASSEMBLY

$

$

Not available

B

Simplicity 100028

PIN

$18.99

$

Usually ships in 2-12 days

0

C

Simplicity S1-A45A

CLIP, Spring

$

$

Not available

D

Simplicity S2E-A5

COLLAR, Set

$

$

Not available

E

Simplicity 2713006

SET SCREW, Square Head, 5/16-18 x 1/2"

$

$

Not available

F

Simplicity 47230

PIVOT ASSEMBLY

$

$

Not available

G

Simplicity 32-107-4

SQUARE NUT, 3/8" NC

$

$

Not available

H

Simplicity 32-53-5

LOCKWASHER, 3/8"

$

$

Not available

J

Simplicity 109061

V" BELT, 28" Long`

$

$

Not available

K

Simplicity 109060

PULLEY

$

$

Not available

L

Simplicity 2153079

WASHER

$

$

Not available

M

Simplicity 2725003

WOODRUFF KEY, 3/16 x 3/4, No.9

$

$

Not available

N

Simplicity 109051

SHAFT, Pulley

$

$

Not available

P

Simplicity 47280

BUSHING

$

$

Not available

Q

Simplicity 47110

SUPPORT ASSEMBLY

$

$

Not available

R

Simplicity 32-5-2

CAPSCREW

$

$

Not available

S

Simplicity 32-53-7

LOCKWASHER, 3/8"

$

$

Not available

T

Simplicity 30-2-32

ZERK FITTING

$

$

Not available

U

Simplicity 15709

JACKSHAFT HOUSING & BAIRING ASSEMBLY

$

$

Not available

V

Simplicity PA-2

SPROCKET

$

$

Not available

W

Simplicity 47220

CHAIN GUARD ASSEMBLY

$

$

Not available

X

Simplicity 47050

SPACER
(Superseded to 7047050YP)

$44.99

$

Usually ships in 2-12 days

0

Y

Simplicity 705029

CAPSCREW, 3/8-16 x 3-1/4"

$8.99

$

Usually ships in 2-12 days

0

Z

Simplicity 47060

SHIELD, Grass
(Superseded to 7047060YP)

$106.99

$

Usually ships in 2-12 days

0

AA

Simplicity 2705005

CAPSCREW, 3/4-28 x 1/2"

$

$

Not available

AB

Simplicity 2720003

LOCKWASHER, 1/4"

$

$

Not available

AC

Simplicity 2703002

CARRIAGE BOLT, 3/8-16 x 1-1/4"

$

$

Not available

AD

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

AE

Simplicity 2717510

NUT, Full Hex, 3/8-16

$

$

Not available

AF

Simplicity QK-445

ROLLER BRACKET ASSEMBLY, R.

$

$

Not available

AG

Simplicity Q-213

SHAFT, Ring

$

$

Not available

AH

Simplicity QK-427

ROLLER ASSEMBLY

$

$

Not available

AJ

Simplicity 32-53-16

LOCKWASHER

$

$

Not available

AK

Simplicity 32-73-18

SCREW, Socket Head

$

$

Not available

AL

Simplicity QK-447

ROLLER BRACKET ASSEMBLY, L.

$

$

Not available

AM

Simplicity 47010

FRAME ASSEMBLY

$

$

Not available

AN

Simplicity 2705006

CAPSCREW, 3/8-16 x 2"

$

$

Not available

AP

Simplicity 706014

CAPSCREW, 7/16-20 x 1 3/4"

$3181.99

$

Usually ships in 2-12 days

0

AQ

Simplicity PL-135

WASHER, Upper

$

$

Not available

AR

Simplicity LU-91

WASHER, Lower

$

$

Not available

AS

Simplicity 32-10-4

CAPSCREW

$

$

Not available

AT

Simplicity 2720001

LOCKWASHER, 5/16"

$

$

Not available

AU

Simplicity Q-188B

GUARD, Reel

$

$

Not available

AV

Simplicity 47180

CHAIN, Drive, w/Link

$

$

Not available

AW

Simplicity 32-20-6

NUT, Jam

$

$

Not available

AX

Simplicity 32-56-7

WASHER, Cut

$

$

Not available

AY

Simplicity 47040

SPROCKET

$

$

Not available

AZ

Simplicity 5P-19

SLINGER, Outer

$

$

Not available

BA

Simplicity 5P-17A

SPACER, Outer

$

$

Not available

BB

Simplicity 25-3-1

SEAL, Grease

$

$

Not available

BC

Simplicity 25-1-11

BEARING, Ball

$

$

Not available

BD

Simplicity K-208

BOLT, Bearing Housing

$

$

Not available

BE

Simplicity 5P-14

HOUSING, Bearing

$

$

Not available

BF

Simplicity 5P-16A

SPACER, Innter

$

$

Not available

BG

Simplicity 5P-18

SLINGER, Inner

$

$

Not available

BH

Simplicity QK-512

REEL ASSEMBLY, 6 Blade

$

$

Not available

BJ

Simplicity 32-20-7

NUT, Jam

$

$

Not available

BK

Simplicity 5P-24

DISC, Pivot

$

$

Not available

BL

Simplicity Q-200

BED BAR ASSEMBLY

$

$

Not available

BM

Simplicity CU-109A

KNIFE, Bed

$

$

Not available

BN

Simplicity CU-110B

SCREW, Knife

$

$

Not available

BP

Simplicity 2713503

SET SCREW, Socket Head, 5/16-18 x 5/16

$

$

Not available

BQ

Simplicity 32-10-2

CAPSCREW, 5/16-24 x 3/8"

$

$

Not available

BR

Simplicity 2719006

WASHER, 1/4 S.A.E.

$

$

Not available

BS

Simplicity 32-96-19

LOCKNUT

$

$

Not available
