990120 - Simplicity Wonderboy Rear-Engine Riding Mower, 4hp POWER TAKE-OFF AND ENGINE PULLEY Parts Diagram

Wonderboy Rear-Engine Riding Mower, 4hp

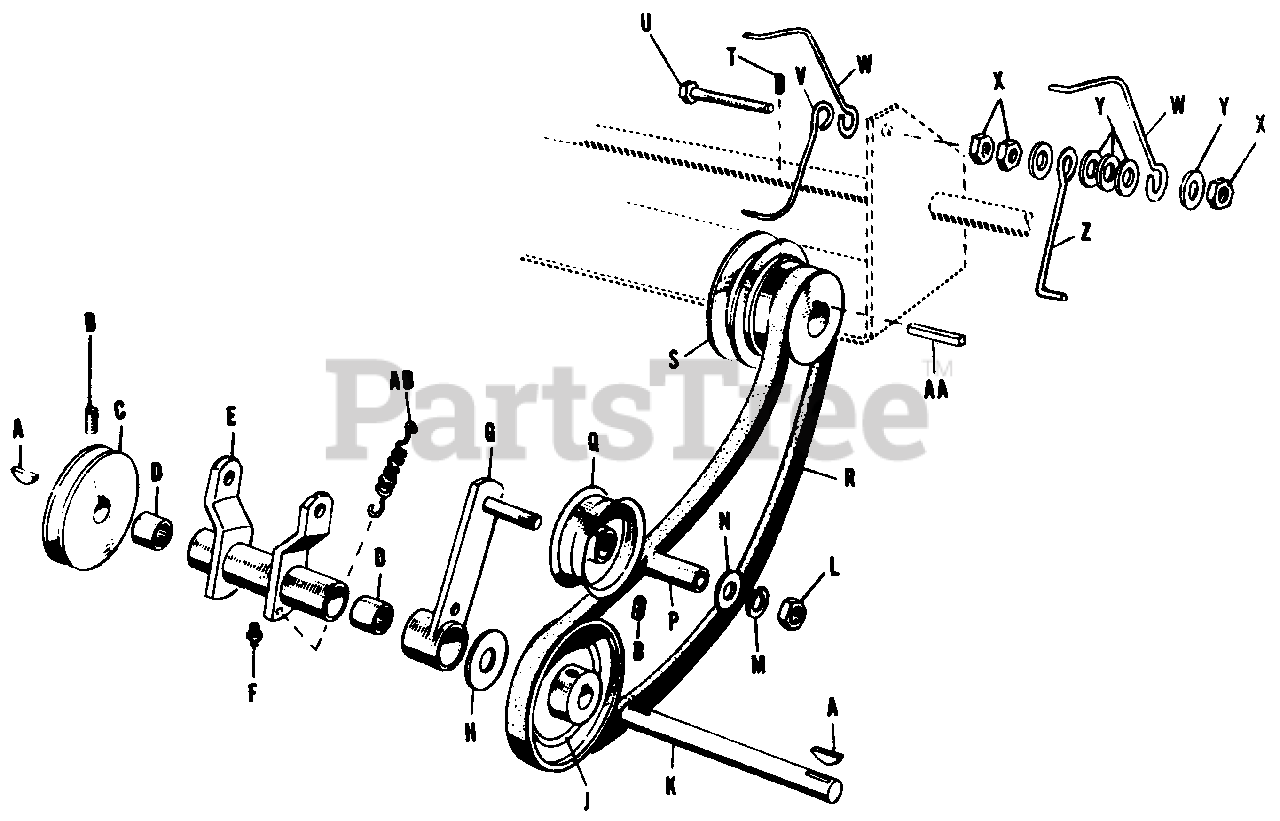

POWER TAKE-OFF AND ENGINE PULLEY Parts Diagram

  • Title

A

Simplicity 2725003

Key, Woodruff, 3/16 x 3/4"

$

$

Not available

B

Simplicity 2713501

Screw, Set 5/16-18 x 1/2

$

$

Not available

C

Simplicity 10802S

Pulley

$

$

Not available

D

Simplicity 1080S4

Bearing, Needle

$

$

Not available

E

Simplicity 121045

Bracket Assembly, Drive

$

$

Not available

F

Simplicity 2727002

Grease Writting No. 1641

$

$

Not available

G

Simplicity 121049

Lever, Idler Assembly

$

$

Not available

H

Simplicity 2116001

Washer

$

$

Not available

J

Simplicity 109052

Pulley

$

$

Not available

K

Simplicity 108014

Shaft, Idler

$

$

Not available

L

Simplicity 2717003

Nut, Full Hex, 3/8-16

$

$

Not available

M

Simplicity 2720002

Washer Lock, 3/8"

$

$

Not available

N

Simplicity 2719001

Washer Plain 3/8"

$

$

Not available

P

Simplicity S11-A73

Race, Inner Bearing

$

$

Not available

Q

Simplicity F-AX5

Pulley Idler

$

$

Not available

R

Simplicity 2118068

V-Belt 34" Long

$

$

Not available

S

Simplicity 121069

Pulley, Englne

$

$

Not available

T

Simplicity 2713503

Screw, Set Cup Point 5/16-18 x 5/16"

$

$

Not available

U

Simplicity 715008

Screw, Hex Hd. 3/8-16x2 1/2" (2 1/4" ThreadHOSE, Fuel, Cut to 12th)

$186.99

$

Usually ships in 2-12 days

0

V

Simplicity 121074

Stop Belt

$

$

Not available

W

Simplicity 121112

Stop Belt

$

$

Not available

X

Simplicity 2717003

Nut, Full Hex 3/8-16

$

$

Not available

Y

Simplicity 2719002

Washer, 5/16

$

$

Not available

Z

Simplicity S1A158

Stop, Belt

$

$

Not available

AA

Simplicity S3A42

Key, Engine

$

$

Not available

AB

Simplicity P-A47

Spring

$

$

Not available
