990120 - Simplicity Wonderboy Rear-Engine Riding Mower, 4hp SEAT, HOOD, AND DRAWBAR ASSEMBLY Parts Diagram

Wonderboy Rear-Engine Riding Mower, 4hp

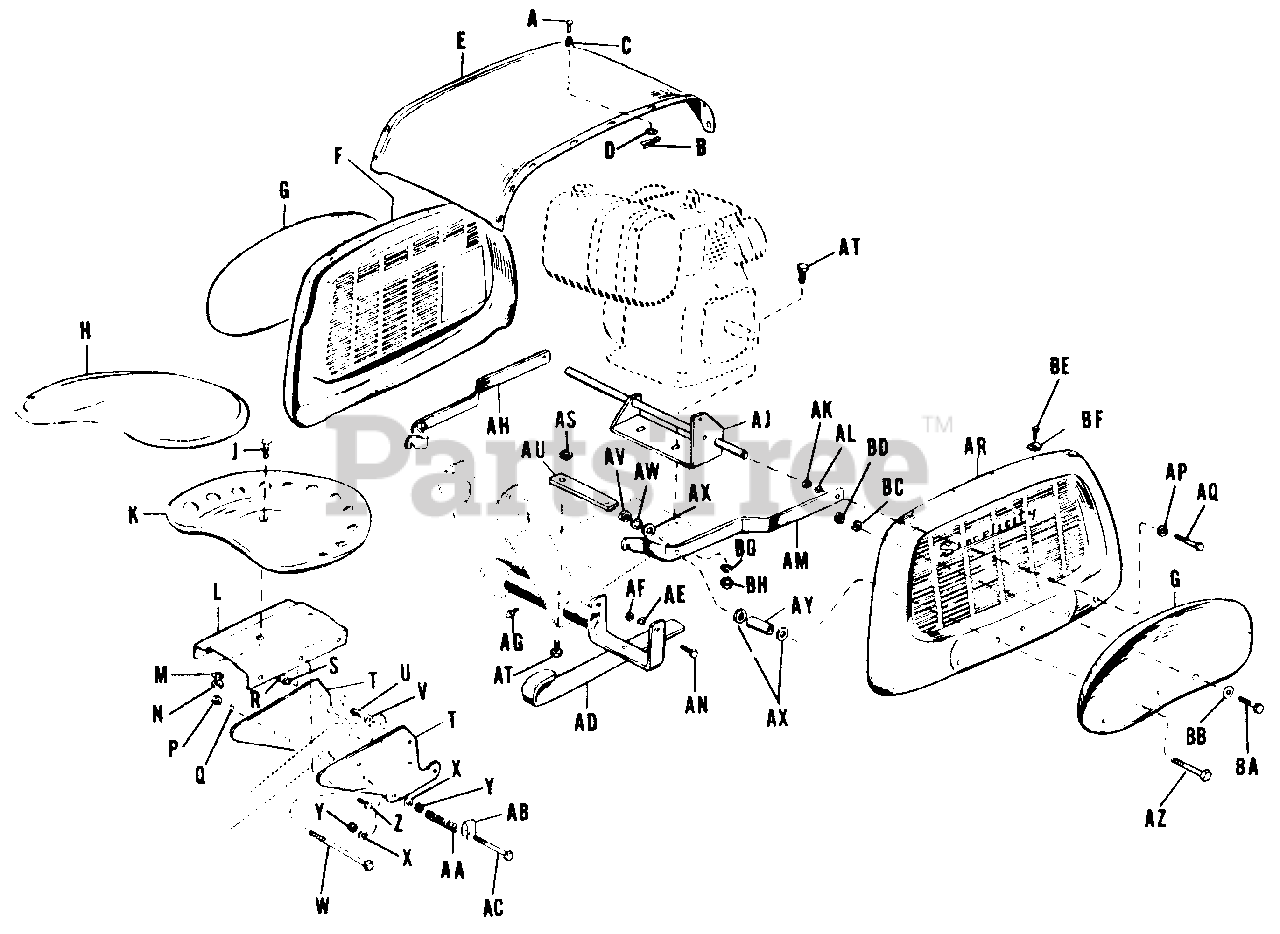

SEAT, HOOD, AND DRAWBAR ASSEMBLY Parts Diagram

  • Title

A

Simplicity 121183

Pin, Engine Stop

$

$

Not available

B

Simplicity 2722002

Pin, Cotter 3/32 x 1

$

$

Not available

C

Simplicity 2153010SM

Spring

$9.49

$

Usually ships in 2-12 days

0

D

Simplicity 2719007

Washer, Plain 3/16

$

$

Not available

E

Simplicity 121091

Panel, Top

$

$

Not available

F

Simplicity 121141

Panel, Side, RH

$

$

Not available

G

Simplicity 121103

Fender

$

$

Not available

H

Simplicity 121114

Pad Seat

$

$

Not available

J

Simplicity 702010

Bolt Carriage 1/2-13 x 1 1/4"

$

$

Not available

K

Simplicity 121029

Seat

$

$

Not available

L

Simplicity 121028

Bracket Seat

$

$

Not available

M

Simplicity 2719004

Washer 1/2"

$

$

Not available

N

Simplicity 2717006

Nut, Full Hex, 1/2-13

$

$

Not available

P

Simplicity 2717003

Nut, Full Hex, 3/8-16

$

$

Not available

Q

Simplicity 2720002

Washer, Lock 3/8"

$

$

Not available

R

Simplicity 2717003

Nut, Full Hex 3/8-16

$

$

Not available

S

Simplicity 120002

Washer, Lock 3/8"

$

$

Not available

T

Simplicity 121027

Plate, Side

$

$

Not available

U

Simplicity 706011

Screw, Hex Cap 7/16-20 x 3/8"

$157.99

$

Usually ships in 2-12 days

0

V

Simplicity 721504

Washer, Lack, 7/16"

$

$

Not available

W

Simplicity 701001

Bolt, Sq. Hd. Mach. 3/8-16 x 6"

$

$

Not available

X

Simplicity 2719001

Washer, Plain 3/8"

$

$

Not available

Y

Simplicity 717010

Nut, Full Hex, 3/8-24

$

$

Not available

Z

Simplicity 2705005

Screw, Hex. Cap 3/8-16 x 1"

$

$

Not available

AA

Simplicity 121105

Spring, Latch

$

$

Not available

AB

Simplicity 121098

Latch

$

$

Not available

AC

Simplicity 715009

Screw, Hex. Cap 3/8-24 x 4 3/4"

$242.99

$

Usually ships in 2-12 days

0

AD

Simplicity 121099

Draw Bar Assembly

$

$

Not available

AE

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

AF

Simplicity 2717003

Nut, Full Hex, 3/8-16

$

$

Not available

AG

Simplicity 2727006

Grease Fitting No. 1637

$

$

Not available

AH

Simplicity 121180

Latch, Hood, R.H

$

$

Not available

AJ

Simplicity 121179

Bracket, Pivot Assembly

$

$

Not available

AK

Simplicity 2717003

Nut, Full Hex, 3/8-16

$

$

Not available

AL

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

AM

Simplicity 121181

Latch, Hood, L.H.

$

$

Not available

AN

Simplicity 2705005

Screw, Hex Cap, 3/8-16 x 1

$

$

Not available

AP

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AQ

Simplicity 2705009

Screw, Hex Cap, 3/8-16 x 1 1/2"

$

$

Not available

AR

Simplicity 121090

Panel, Side, L.H.

$

$

Not available

AS

Simplicity 717019

Nut, Sq., 3/8-16

$

$

Not available

AT

Simplicity 2705016

Screw, Hex Cap, 3/8-16 x 1 1/4"

$

$

Not available

AU

Simplicity 121068

Spacer, Engine

$

$

Not available

AV

Simplicity 2717003

Nut, Full Hex, 3/8-16

$

$

Not available

AW

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

AX

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AY

Simplicity 2121121

Spacer, Latch

$

$

Not available

AZ

Simplicity 2705006

Screw, Hex Cap, 3/8-16 x 2"

$

$

Not available

BA

Simplicity 2705011

Screw, Hex Cap, 3/8-16 x 5/8

$

$

Not available

BB

Simplicity 2719001

Washer Plain, 3/8"

$

$

Not available

BC

Simplicity 2720002

Washers Lock, 3/8"

$

$

Not available

BD

Simplicity 2717003

Nut, Full Hex, 3/8-16

$

$

Not available

BE

Simplicity 2714003

Screw, No. 10 x 1/2"

$

$

Not available

BF

Simplicity 718009

Nut, Type "E"

$

$

Not available

BG

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

BH

Simplicity 2717003

Nut, Full Hex, 3/8-16

$

$

Not available
