990147 - Simplicity Lawn Roller With Seat And Scraper Lawn Roller Group - w/ Seat and Scraper (990147) Parts Diagram

Lawn Roller With Seat And Scraper

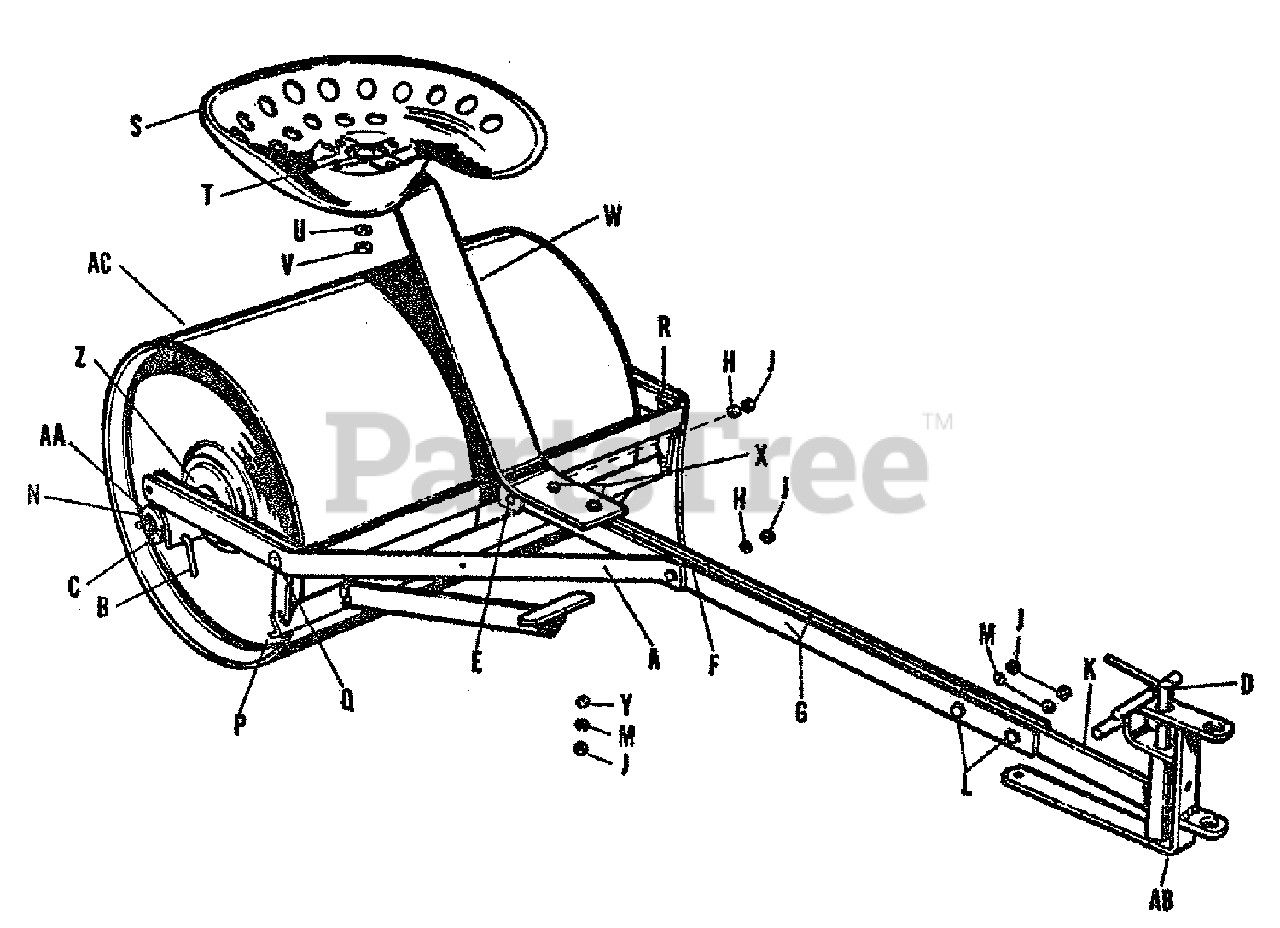

Lawn Roller Group - w/ Seat and Scraper (990147) Parts Diagram

  • Title

A

Simplicity 2102035SM

FRAME ASSEMBLY

$

$

Not available

B

Simplicity C-A204

PIN

$

$

Not available

C

Simplicity 61-A45A

CLIP SPRING

$

$

Not available

D

Simplicity 100035

HITCH PIN ASSEMBLY

$155.99

$

Usually ships in 2-12 days

0

E

Simplicity 2705006

SCREW, Hexagon Head Cap 3/8"-16 N.C. x 2" Large

$

$

Not available

F

Simplicity 2719004

WASHER, Plain 1,2"

$

$

Not available

G

Simplicity 102053

TONGUE

$

$

Not available

H

Simplicity 2720002

WASHER, Plain 1,2"

$

$

Not available

J

Simplicity 2717003

NUT, Hexagon Full 3/8"-16 N.C.

$

$

Not available

K

Simplicity 102054

PIVOT ASSEMBLY

$

$

Not available

L

Simplicity 2705009

SCREW, Hexagon Head Cap 3/8"-16 N.C. x 1-1/2" Large

$

$

Not available

M

Simplicity 2720002

WASHER, Lock 3/8" Regular

$

$

Not available

N

Simplicity 2722004

PIN, Cotter

$

$

Not available

P

Simplicity 102057

BRAKE ASSEMBLY

$

$

Not available

Q

Simplicity 2102004SM

PIN, Pivot

$9.49

$

In Stock, only 3 left!

0

R

Simplicity 2722006

PIN, Cotter

$

$

Not available

S

Simplicity 121029

SEAT, Pan

$

$

Not available

T

Simplicity 702010

BOLT, Carriage 1/2"-13 N.C X 1" Large Short Neck

$

$

Not available

U

Simplicity 2720004

WASHER, Lock 1/2" Regular

$

$

Not available

V

Simplicity 2717006

NUT, Hexagon Full 1/2"-13 N.C.

$

$

Not available

W

Simplicity 102059

SUPPORT SEAT

$

$

Not available

X

Simplicity 2705016

SCREW, Hexagon Head Cap 3/8"-16 N.C. x 2-1/4" Large

$

$

Not available

Y

Simplicity 2719001

WASHER, Plain 3/8" Regular

$

$

Not available

Z

Simplicity 919005

WASHER, Plain

$

$

Not available

AA

Simplicity 102008

ROLLER BEARING ASSEMBLY

$

$

Not available

AB

Simplicity 100033

FRAME EXTENSION ASSEMBLY
(Superseded to 100033R)

$20.99

$

Usually ships in 2-12 days

0

AC

Simplicity 102001

LAWN ROLLER

$

$

Not available
