990151 - Simplicity 26" Rotary Snow Plow Attachment Snow Plow Group - 26" (3579I01) Parts Diagram

26" Rotary Snow Plow Attachment

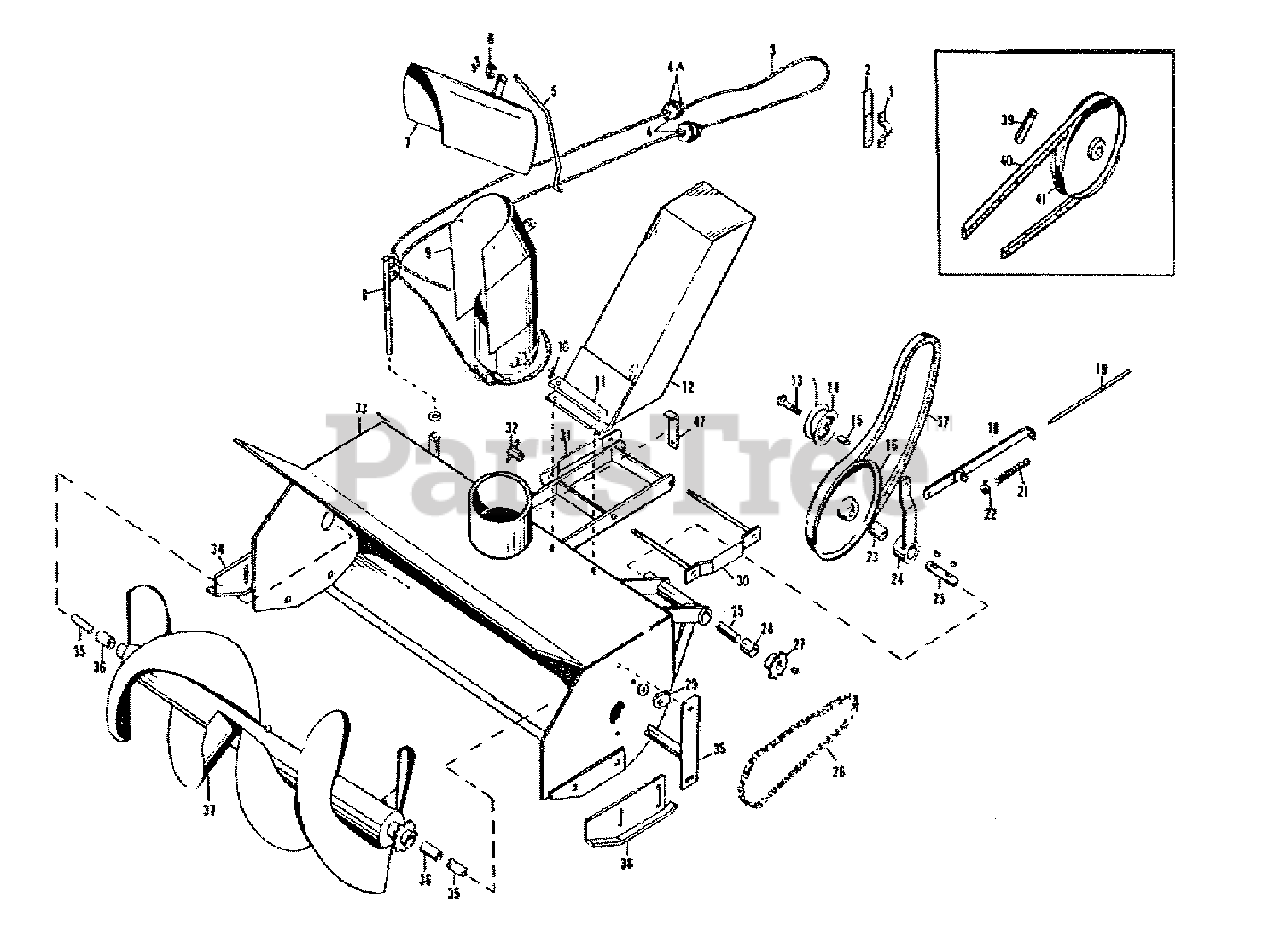

Snow Plow Group - 26" (3579I01) Parts Diagram

  • Title

1

Simplicity 8081036

STRAP, Handle

$

$

Not available

2

Simplicity 106024

STRAP, Cord

$

$

Not available

3

Simplicity 106025

CORD, Spout

$

$

Not available

4

Simplicity 8051044

BALL

$

$

Not available

4A

Simplicity 106027

WASHER

$

$

Not available

5

Simplicity 106020

ROD, Spout Ext. Adjustment

$

$

Not available

6

Simplicity 8161182

CLAMP, Spout Rod

$

$

Not available

7

Simplicity 8082506

EXTENSION, Spout Assembly

$

$

Not available

8

Simplicity 106021

ROD ASSEMBLY, Cord

$

$

Not available

9

Simplicity 106002

SPOUT ASSEMBLY

$

$

Not available

10

Simplicity 8251071

CLAMP, Spout Cord

$

$

Not available

11

Simplicity 8081045

CLAMP, Belt Guard

$

$

Not available

12

Simplicity 8083505

GUARD, Belt Assembly

$

$

Not available

13

Simplicity 8081043

BOLT, Idler Pulley

$

$

Not available

14

Simplicity 8261003

PULLEY, Idler

$

$

Not available

15

Simplicity 1729274SM

RACE, Inner Bearing

$13.99

$

Usually ships in 2-12 days

0

16

Simplicity 8081021

SHEAVE, Drive

$

$

Not available

17

Simplicity 2108099

V" BELT, 44

$

$

Not available

18

Simplicity 1729265SM

GUIDE, Idler Clutch Rod Assembly

$41.99

$

Usually ships in 2-12 days

0

19

Simplicity 8081032

ROD, Idler Clutch

$

$

Not available

20

Simplicity 8061045

CLIP, Spring

$

$

Not available

21

Simplicity 8091045

SPRING

$

$

Not available

22

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

23

Simplicity 8261052

BEARING, Bearing Housing

$

$

Not available

24

Simplicity 106015

LEVE, Idler Assembly

$

$

Not available

25

Simplicity 106029

SHAFT, Drive

$

$

Not available

26

Simplicity 8081024

CHAIN, Rotor

$

$

Not available

27

Simplicity 8111002

SPROCKET

$

$

Not available

28

Simplicity 8261052

BEARING, Bearing Housing

$

$

Not available

29

Simplicity 106006

TIGHTENER, Chain

$

$

Not available

30

Simplicity 8162501

CLAMP, Hitch Assembly

$

$

Not available

31

Simplicity 103001

PLATE, Hitch Side

$

$

Not available

32

Simplicity 8161041

NUT,

$0.99

$

Usually ships in 2-12 days

0

33

Simplicity 106008

BODY AND PUSH ARM ASSEMBLY

$

$

Not available

34

Simplicity 106013

SHOW ASSEMLBY, R.H.

$

$

Not available

35

Simplicity 8081501

SHAFT, Rotor Assembly

$

$

Not available

36

Simplicity 8191044

BEARING, Rotor

$

$

Not available

37

Simplicity 8083504

ROTOR ASSEMBLY

$

$

Not available

38

Simplicity 106012

SHOE ASSEMBLY, L.H.

$

$

Not available

39

Simplicity 8081052

STOP, Transmission Idler Lever

$

$

Not available

40

Simplicity 2166172SM

BELT, A-Sect, 47.30

$30.99

$

Usually ships in 2-12 days

0

41

Snapper 1729273SM

SHEAVE

$76.99

$

In Stock, only 1 left!

0

47

Simplicity 106010

HOLD DOWN, Spout Sleeve

$

$

Not available
