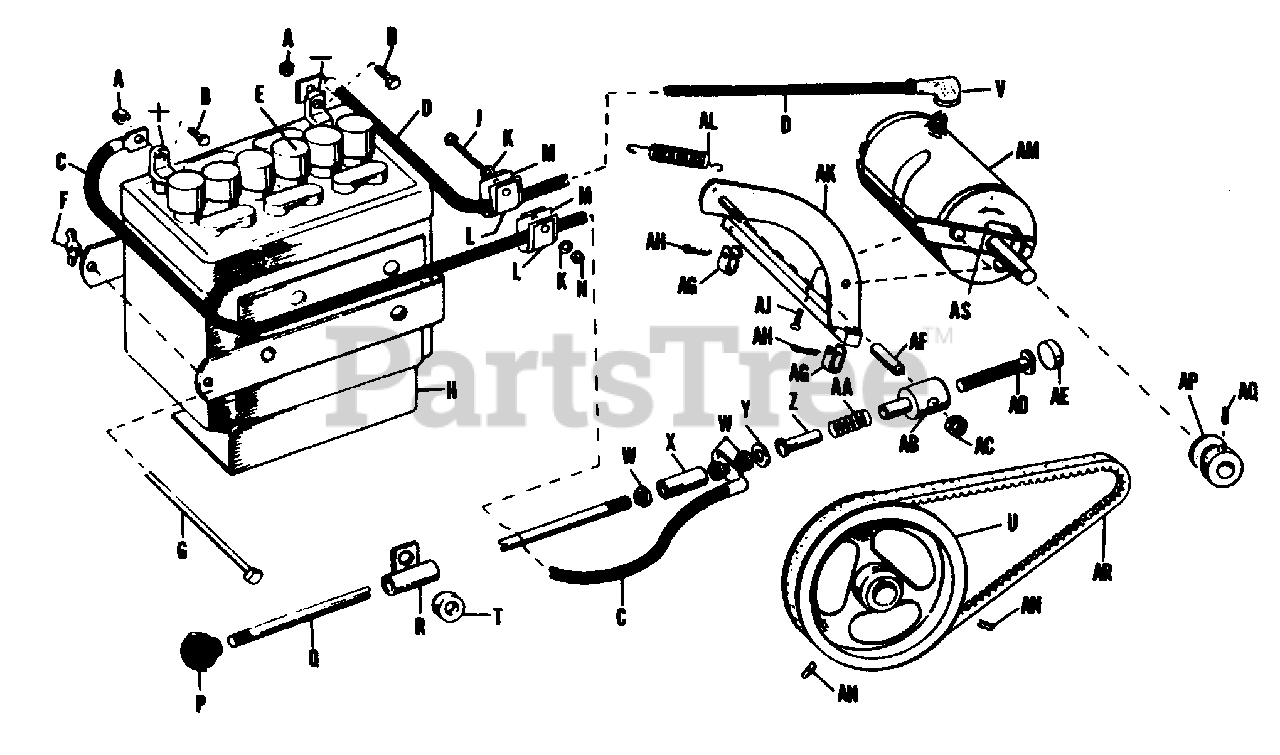

990152 - Simplicity Electric Starter Electric Starter Repair Parts Parts Diagram

Electric Starter

Electric Starter Repair Parts Parts Diagram

  • Title

A

Simplicity 718004

Hex Nut, Full. 1/4"-20 NC

$

$

Not available

B

Simplicity 715010

Capscrew, Hex Hd., 1/4-20 x 5/8

$186.99

$

Usually ships in 2-12 days

0

C

Simplicity 122004

Cable

$

$

Not available

D

Simplicity 122029

Cable Assembly

$

$

Not available

E

Simplicity 122001

Battery (Purchase from Bat.Mfg.

Note: SIMPLICITY does not stock replacement batteries. Obtain locally or from Wisco Division, 1222 18th St., Racine, Wis.

$

$

Not available

F

Simplicity 718007

Wing Nut,Lock, 1/4"-20 NC

$

$

Not available

G

Simplicity 701002

Machine Bolt 1/4"-20 NC x 6" lg

$

$

Not available

H

Simplicity 122030

Bracket Assembly, Battery

$

$

Not available

J

Simplicity 710001

Screw, Rd. Hd. Mach., #10-24 x 1 1/2" lg.

$

$

Not available

K

Simplicity 2719007

Washer, Plain, 3/16" Std.

$

$

Not available

L

Simplicity 122024

Clip, Cable

$

$

Not available

M

Simplicity 122025

Lining, Clip

$

$

Not available

N

Simplicity 2717023

Hex Nut, Lock, #10-24

$

$

Not available

P

Simplicity 2122005SM

Knob, Starter

$14.99

$

In Stock, only 1 left!

0

Q

Simplicity 122031

Rod, Starter

$

$

Not available

R

Simplicity 122032

Guide Assembly, Rod

$

$

Not available

T

Simplicity 122067

Set Collar

$

$

Not available

U

Simplicity 122038

Pulley, Engine

$

$

Not available

V

Simplicity 2122023SM

Cover, Terminal

$5.99

$

In Stock, only 3 left!

0

W

Simplicity 2717011

Hex Nut, Jam, 5/16"-18 NC

$

$

Not available

X

Simplicity 122009

Insulator

$

$

Not available

Y

Simplicity 2719002

Washer, Plain, 5/16" Std.

$

$

Not available

Z

Simplicity 122013

Spacer

$

$

Not available

AA

Simplicity 122015

Spring

$

$

Not available

AB

Simplicity 122010

Body, Switch

$

$

Not available

AC

Simplicity 2717511

Nut, Hex, Full Lock, 5/16"-18

$

$

Not available

AD

Simplicity 122012

Bolt, Contact

$

$

Not available

AE

Simplicity 122011

Plug, Switch Body

$

$

Not available

AF

Simplicity 122014

Contact

$

$

Not available

AG

Simplicity 122019

Strap, Motor Support

$

$

Not available

AH

Simplicity 722013

Pin, Cotter

$

$

Not available

AJ

Simplicity 715003

Socket Screw, 1/4"-20 NC x 3/4

$31.99

$

Usually ships in 2-12 days

0

AK

Simplicity 122034

Lever Assembly, Belt Tension

$

$

Not available

AL

Simplicity 122064

Spring

$

$

Not available

AM

Simplicity 122026

Motor, Starter, (see note)

$

$

Not available

AN

Simplicity 2713501

Screw, Hex. Socket Cup Point Set, 5/16"-18 NC x 1/2" lg.

$

$

Not available

AP

Simplicity 122020

Pulley, Motor

$

$

Not available

AQ

Simplicity 2713505

Screw, Hex. Socket Cup Point Set, 1/4-20 NC x 5/16" lg.

$

$

Not available

AR

Simplicity 122039

"V" Belt, Starter 24" lg. Cog type 2

$

$

Not available

AS

Simplicity 122061

Belt Stop Assembly

$

$

Not available
