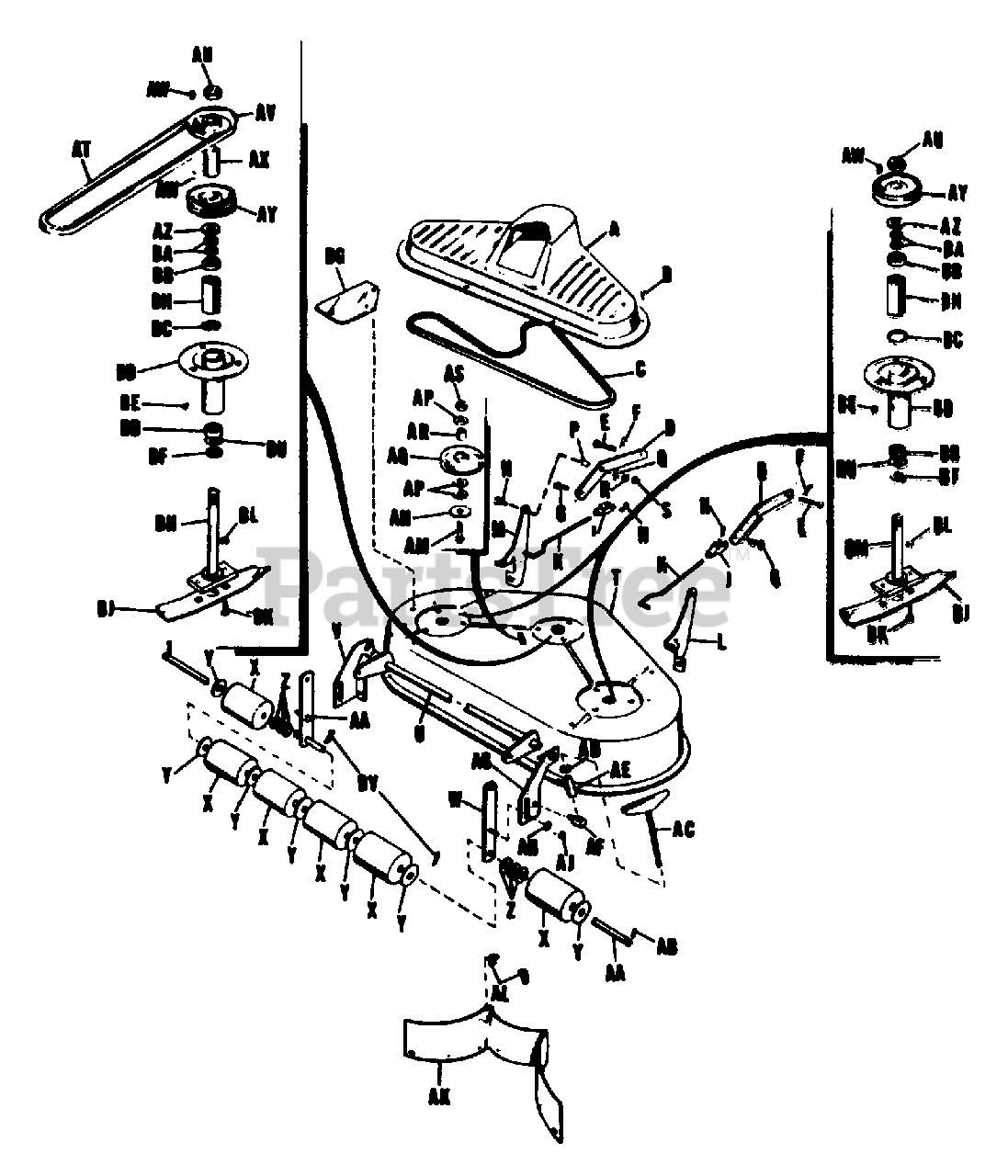

990153 - Simplicity 32" Mower Deck 32" Rotary Mower Parts Diagram

32" Mower Deck

32" Rotary Mower Parts Diagram

  • Title

A

Simplicity 108152

Cover, Housing

$

$

Not available

B

Simplicity 2714007

Screw, Self-Tapping, Hex Hd., 1/4-20 x 3/8

$

$

Not available

C

Simplicity 2108151

V-Belt, Mower Spindle Drive

$

$

Not available

D

Simplicity 108155

Lever, Front

$

$

Not available

E

Simplicity 100028

Pin

$18.99

$

Usually ships in 2-12 days

0

F

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

G

Simplicity 2108158

Pin, Clevis

$

$

Not available

H

Simplicity 2722001

Pin, Cotter-3/32 x 3/4

$

$

Not available

J

Simplicity 2108157SM

Clevis, Adj.

$24.99

$

Usually ships in 2-12 days

0

K

Simplicity 108156

Rod, Height Adj.

$

$

Not available

L

Simplicity 108153

Bracket, Front, R.H.

$

$

Not available

M

Simplicity 108154

Bracket, Front, L.H.

$

$

Not available

N

Simplicity 2705005

Capscrew, Hex Hd., 3/8-16 x 1

$

$

Not available

P

Simplicity 2154177SM

Bushing

$39.99

$

In Stock, only 4 left!

0

Q

Simplicity 2719001

Washer, Plain, 3/8

$

$

Not available

R

Simplicity 2720002

Washer, Lock, 3/8

$

$

Not available

S

Simplicity 2717003

Nut, Full Hex, 3/8-16

$

$

Not available

T

Simplicity 2108147

Housing

$

$

Not available

U

Simplicity 108160

Lever, Assy., Rear

$

$

Not available

V

Simplicity 108163

Bracket, Roller, L.H.

$

$

Not available

W

Simplicity 2108256

Bar Assy., Roller

$

$

Not available

X

Simplicity 2108178

Roller

$

$

Not available

Y

Simplicity 2116001

Washer

$

$

Not available

Z

Simplicity 2860164SM

Washer

$4.49

$

In Stock, Qty 5

0

AA

Simplicity 108254

Bar & Shaft Assy.

$

$

Not available

AB

Simplicity 2722011

Pin, Cotter

$

$

Not available

AC

Simplicity 2108169

Screw, Assy. Adj.

$

$

Not available

AD

Simplicity 2719001

Washer, Plain

$

$

Not available

AE

Simplicity 2108166SM

Socket, Assy. Crank

$30.99

$

Usually ships in 2-12 days

0

AF

Simplicity 108172

Pivot

$

$

Not available

AG

Simplicity 108159

Bracket, Roller, R.H.

$

$

Not available

AH

Simplicity 2719002

Washer, Plain, 5/16

$

$

Not available

AJ

Simplicity 2717510

Nut, Hex, Full Lock, 3/8

$

$

Not available

AK

Simplicity 108187

Baffle

$

$

Not available

AL

Simplicity 2108186SM

Clip Baffle

$12.99

$

In Stock, only 1 left!

0

AM

Simplicity 2703002

Bolt Carriage, 3/8-16 x 1

$

$

Not available

AN

Simplicity 108150

Washer

$

$

Not available

AP

Simplicity 2719002

Washer, Plain, 5/16

$

$

Not available

AQ

Simplicity 2108149

Pulley Idler

$

$

Not available

AR

Simplicity 2154177SM

pacer

$39.99

$

In Stock, only 4 left!

0

AS

Simplicity 2717510

Nut, Hex, Full Lock, 3/8-16

$

$

Not available

AT

Simplicity 2108175

V-Belt, Cross Drive

$

$

Not available

AU

Simplicity 2717517

Nut Hex Jam, Center Lock 3/4-16

$

$

Not available

AV

Simplicity 2108246SM

Pulley, Cross Drive

$76.99

$

Usually ships in 2-12 days

0

AW

Simplicity 2725006

Woodruff Key, 3/16 x 5/8, #61

$

$

Not available

AX

Simplicity 108145

Spacer

$

$

Not available

AY

Simplicity 2108142

Pulley

$

$

Not available

AZ

Simplicity 2108181

Washer

$

$

Not available

BA

Simplicity 2108139

Flinger

$

$

Not available

BB

Simplicity 2108202SM

Bearing

$11.99

$

In Stock, Qty 20+

0

BC

Simplicity 2108134

Ring, Backing

$

$

Not available

BD

Simplicity 2108203

Tube Assy., Arbor

$

$

Not available

BE

Simplicity 726001

Plug

$

$

Not available

BF

Simplicity 2108181

Washer

$

$

Not available

BG

Simplicity 108193

Deflector

$

$

Not available

BH

Simplicity 2108251

Arbor Assy., Drive

$

$

Not available

BJ

Simplicity 2108297ASM

Blade

$

$

Not available

BK

Simplicity 2715024

Screw

$

$

Not available

BL

Simplicity 2720002

Washer

$

$

Not available

BM

Simplicity 2108250SM

Arbor Assy.

$115.99

$

In Stock, only 1 left!

0

BN

Snapper 2108201SM

Spacer

$19.99

$

In Stock, only 2 left!

0

BU

Simplicity 2108257SM

Washer

$6.99

$

In Stock, only 2 left!

0

BV

Simplicity 2722011

Cotter Pin

$

$

Not available
