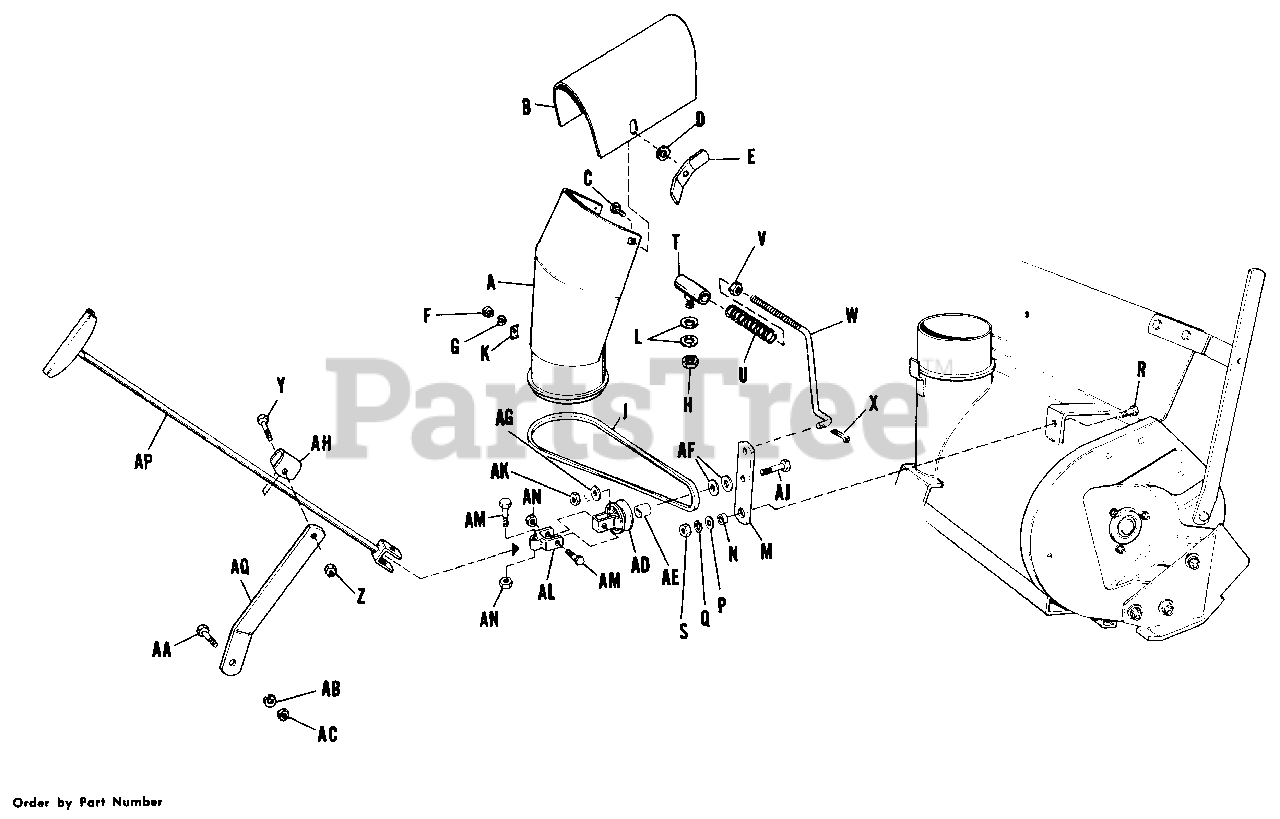

990175 - Simplicity 36" Rotary Snow Thrower Attachment SPOUT GROUP Parts Diagram

36" Rotary Snow Thrower Attachment

SPOUT GROUP Parts Diagram

  • Title

A

Simplicity 106338

Spout Assembly

$

$

Not available

B

Simplicity 106331

Extension, Spout

$

$

Not available

C

Simplicity 2703005

Carriage Bolt, 5/16"-18 NC x 3/4" lg.

$

$

Not available

D

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

E

Simplicity 2106229

NUT, Wing, 5/16-18

$

$

Not available

F

Simplicity 2717001

Nut, Hex, Full, 5/16"-18 NC

$

$

Not available

G

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

H

Simplicity 2717511

Nut, Lock, Full, Hex, 5/16"-18 NC

$

$

Not available

J

Simplicity 2118116

Belt, "V"

$

$

Not available

K

Simplicity 8251071

Clamp, Spout Cord

$

$

Not available

L

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

M

Simplicity 106128

Lever, Idler Pulley

$

$

Not available

N

Simplicity 2153081

Spacer

$

$

Not available

P

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

Q

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

R

Simplicity 2705005

Capscrew, Hex Hd., 3/8"-16 NC x 1" lg.

$

$

Not available

S

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

T

Simplicity 106357

Socket Assembly, Rod

$

$

Not available

U

Simplicity 1729277SM

Spring

$6.99

$

Usually ships in 2-12 days

0

V

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

W

Simplicity 106358

Rod, Belt Tightener

$

$

Not available

X

Simplicity 2722001

Pin, Cotter, 3/32" x 3/4" lg.

$

$

Not available

Y

Simplicity 2705019

Capscrew, 5/16"-18 NC x 1 1/4" lg.

$

$

Not available

Z

Simplicity 2717511

Nut, Hex, Full Lock, 5/16"-18 NC

$

$

Not available

AA

Simplicity 2705005

Capscrew, Hex Hd., 3/8"-16 NC x 1" lg.

$

$

Not available

AB

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

AC

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

AD

Simplicity 106129

Pulley Assembly, Idler

$

$

Not available

AE

Simplicity 8191020

Spacer

$

$

Not available

AF

Simplicity 2121210SM

Washer

$1.99

$

Usually ships in 2-12 days

0

AG

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AH

Simplicity 2152050SM

Guide, Rod

$9.49

$

Usually ships in 2-12 days

0

AJ

Simplicity 2705010

Capscrew, Hex Hd., 3/8"-16 NC x 1 3/4" lg.

$

$

Not available

AK

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

AL

Simplicity 2106131SM

Fork Assembly

$75.99

$

In Stock, only 1 left!

0

AM

Simplicity 2705018

Capscrew, Hex Hd., 5/16"-18 NC x 1 1/2" lg.

$

$

Not available

AN

Simplicity 2717511

Nut, Hex, Full Lock, 5/16"-18 NC

$

$

Not available

AP

Simplicity 106133

Handle Assembly

$

$

Not available

AQ

Simplicity 106135

Support, Rod Guide

$

$

Not available
