990190 - Simplicity 42" Mower Deck for Model 725 Mowers BAIL ASSEMBLY Parts Diagram

42" Mower Deck for Model 725 Mowers

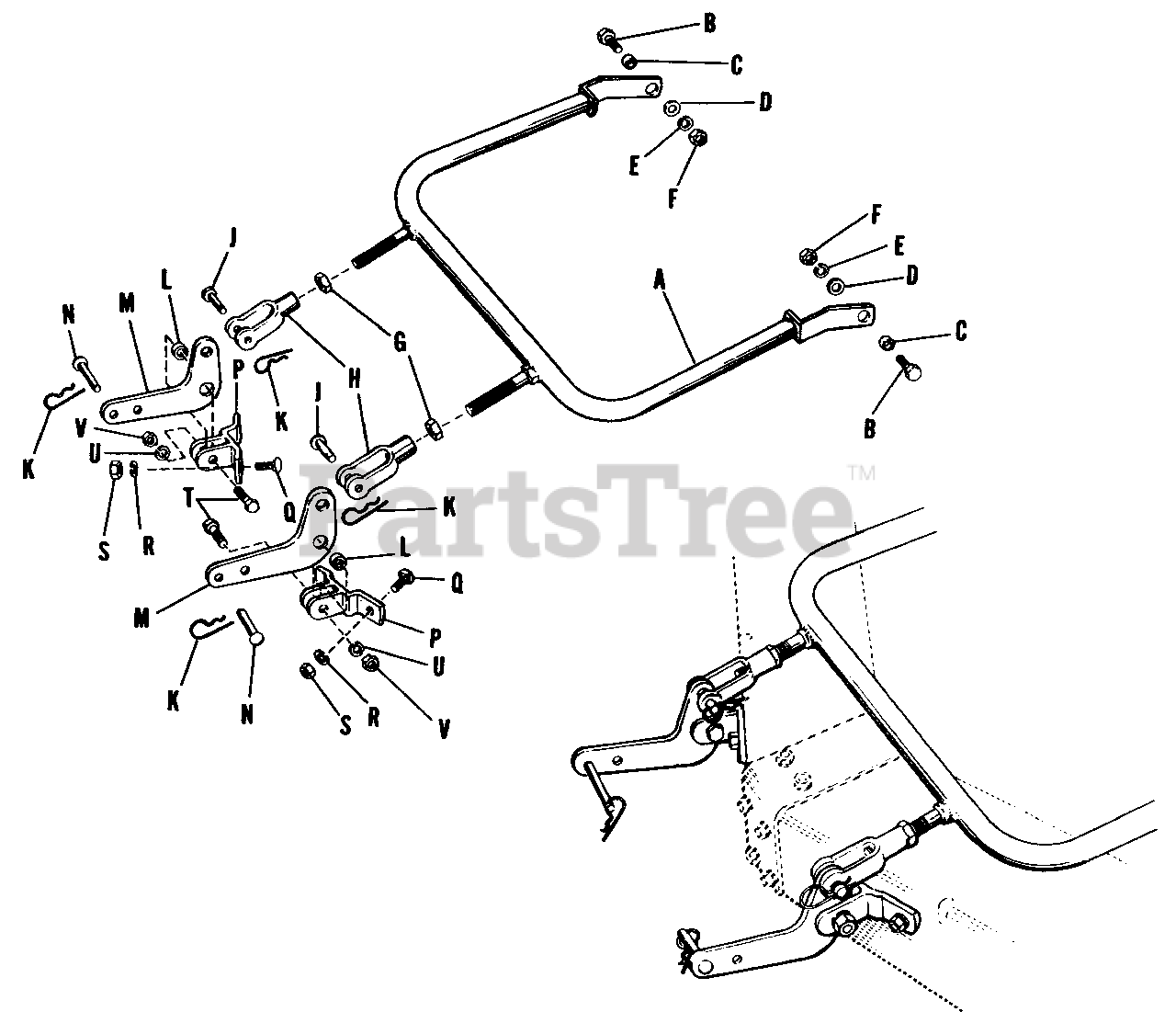

BAIL ASSEMBLY Parts Diagram

  • Title

A

Simplicity 108229

Bail Assembly

$

$

Not available

B

Simplicity 2705049

Capscrew, Hex Hd., 1/2"-13 NC x 1-1/4" lg.

$

$

Not available

C

Simplicity 2105051

Spacer

$

$

Not available

D

Simplicity 2719004

Washer, Plain, 1/2"

$

$

Not available

E

Simplicity 2720004

Washer, Lock, 1/2"

$

$

Not available

F

Simplicity 2717006

Nut, Hex, Full, 1/2"-13 NC

$

$

Not available

G

Simplicity 2717016

Nut, Hex, Jam, 1/2"-20 NF

$

$

Not available

H

Simplicity 2154304SM

Yoke End, Adjusting

$67.99

$

Usually ships in 2-12 days

0

J

Simplicity 2154305

Yoke Pin

$

$

Not available

K

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 5

0

L

Simplicity 2105051

Spacer

$

$

Not available

M

Simplicity 2108228

Rocker Arm

$

$

Not available

N

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

P

Simplicity 2108219SM

Bracket Assembly, Front
(Superseded to 2108219ASM)

$62.99

$

Usually ships in 2-12 days

0

Q

Simplicity 2702002

Bolt, Carriage,3/8"-16 NC x 1"

$

$

Not available

R

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

S

Simplicity 2717003

Nut Hex, Full, 3/8"-16 NC

$

$

Not available

T

Simplicity 2705049

Capscrew, Hex, 1/2"-13 NC x 1-1/4"

$

$

Not available

U

Simplicity 2720004

Washer, Lock, 1/2"

$

$

Not available

V

Simplicity 2717006

Nut, Hex, Full, 1/2"-13 NC

$

$

Not available
