990190 - Simplicity 42" Mower Deck for Model 725 Mowers DECK ASSEMBLY Parts Diagram

42" Mower Deck for Model 725 Mowers

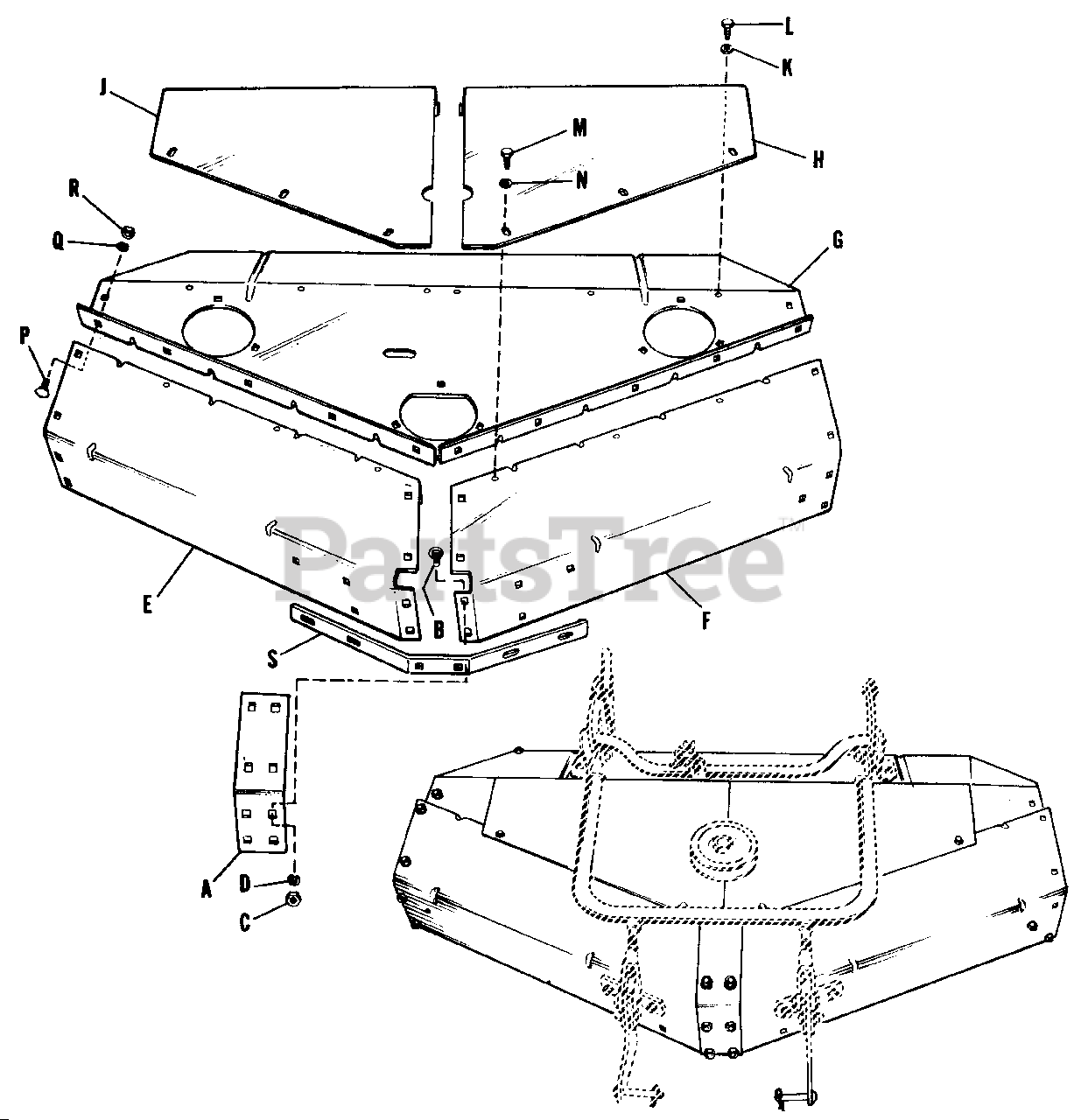

DECK ASSEMBLY Parts Diagram

  • Title

A

Simplicity 108217

Plate, Front

$

$

Not available

B

Simplicity 2702003

Bolt, Carriage, 3/8"-16 NC x 3/4"

$

$

Not available

C

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

D

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

E

Simplicity 108211

Deck, Front, R.H.

$

$

Not available

F

Simplicity 108212

Deck, Front, L.H.

$

$

Not available

G

Simplicity 108210

Deck Housing

$

$

Not available

H

Simplicity 108227

Cover, L. H.

$

$

Not available

J

Simplicity 108226

Cover, R. H.

$

$

Not available

K

Simplicity 2719007

Washer, Plain, 3/16"

$

$

Not available

L

Simplicity 2714007

Screw, Recessed Hex, Self Tapping 1/4"-20 NC x 3/8" lg.

$

$

Not available

M

Simplicity 2714007

Screw, Recessed Hex, Self Tapping 1/4"-20 NC x 3/8" lg.

$

$

Not available

N

Simplicity 2719007

Washer, Plain, 3/16"

$

$

Not available

P

Simplicity 2702003

Bolt, Carriage, 3/8"-16 NC x 3/4

$

$

Not available

Q

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

R

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

S

Simplicity 108218

Bar, Reinforcing

$

$

Not available
