990193 - Simplicity 30" Sickle Bar Sickle Group - 30" (3599I01) Parts Diagram

30" Sickle Bar

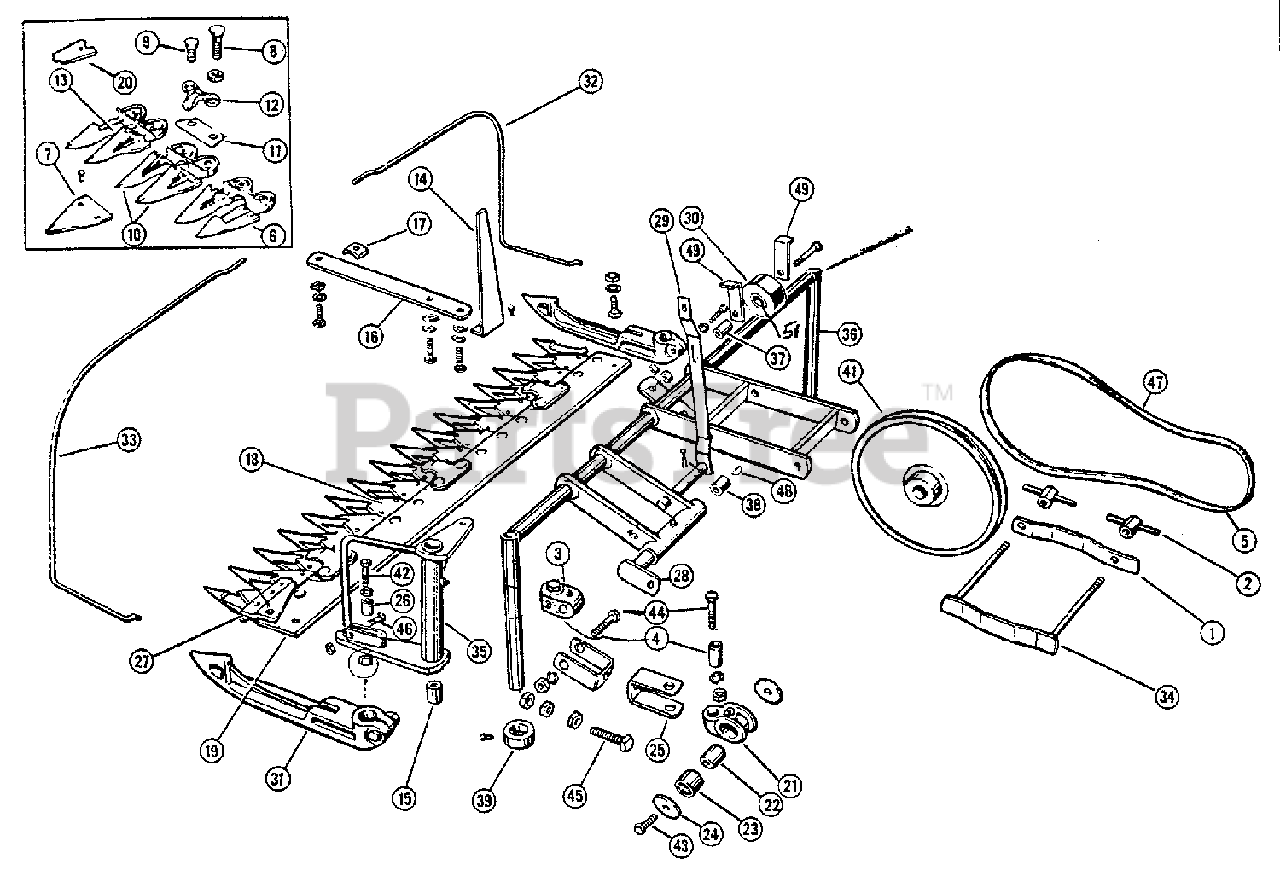

Sickle Group - 30" (3599I01) Parts Diagram

  • Title

1

Simplicity 103001

HITCH, Side Plate

$

$

Not available

2

Simplicity 8161041

T-NUT, Complete

$0.99

$

Usually ships in 2-12 days

0

3

Simplicity 8161052

BLOCK, Pivot

$

$

Not available

4

Snapper 1729273SM

BEARING, Pivot Block

$76.99

$

In Stock, only 1 left!

0

5

Simplicity 118058

BELT, 34" for L & F Series

$

$

Not available

6

Simplicity 1161131

GUARD, Left End

$

$

Not available

7

Simplicity 101004

SICKLE SECTIONS

$

$

Not available

8

Simplicity 8161133

GUARD BOLT, Long

$

$

Not available

9

Simplicity 8161134

GUARD BOLT, Short

$

$

Not available

10

Simplicity 8161135

TWIN Guard

$

$

Not available

11

Simplicity 8161136

WEAR PLATE

$

$

Not available

12

Simplicity 8161137

SICKLE CLIP

$

$

Not available

13

Simplicity 8161138

RIGHT END GUARD

$

$

Not available

14

Simplicity 8161178

WHIPPER

$

$

Not available

15

Simplicity 1667099SM

BUSHING, Bell Crank

$26.99

$

Usually ships in 2-12 days

0

16

Simplicity 8161181

BRACKET, Grass Finger

$

$

Not available

17

Simplicity 8161182

CLAMP, Grass Finger

$

$

Not available

18

Simplicity 8161188

SICKLE, Complete with Head

$

$

Not available

19

Simplicity 8161189

30" CUTTER BAR SLAB

$

$

Not available

20

Simplicity 8161191

PLATE, Ledger (With Rivet)

$

$

Not available

21

Simplicity 8161196

BEARING HOUSING, Pitman

$

$

Not available

22

Simplicity 8161197

BEARING, Pitman

$

$

Not available

23

Simplicity 2157678SM

BEARING, Needle (Pitman)

$34.99

$

Usually ships in 2-12 days

0

24

Simplicity 1924356SM

PITMAN BEARING, Washer
(Superseded to 703591)

$5.49

$

In Stock, Qty 17

0

25

Simplicity 8161203

CLEVIS, Pitman

$

$

Not available

26

Simplicity 1729274SM

BUSHING, Sickle Head

$13.99

$

Usually ships in 2-12 days

0

27

Simplicity 8161230

SICKLE HEAD ONLY

$

$

Not available

28

Simplicity 8161515

CRANK SHAFT ASSEMBLY

$

$

Not available

29

Simplicity 8161520

LEVER, Idler

$

$

Not available

30

Simplicity 101002

PULLEY, Idler

$

$

Not available

31

Simplicity 8162019

SICKLE BAR SHOE

$

$

Not available

32

Simplicity 8162026

GRASS FINGER, Right

$

$

Not available

33

Simplicity 8162027

GRASS FINGER, Left

$

$

Not available

34

Simplicity 8162501

CLAMP, Hitch

$

$

Not available

35

Simplicity 8162510

SICKLE BELL CRANK

$

$

Not available

36

Simplicity 8163510

FRAME, Sickle Bar

$

$

Not available

37

Simplicity 8191020

BUSHING, Idler Pulley

$

$

Not available

38

Simplicity 8191044

BUSHING, Bearing Housing

$

$

Not available

39

Simplicity 8211005

COLLAR, Set

$

$

Not available

41

Simplicity 8151025

SHEAVE

$

$

Not available

42

Simplicity 2706007

SICKLE HEAD BOLT, 3/8-24 x 1/2

$

$

Not available

43

Simplicity 706008

CRANK PIN BOLT, 3/8-24 x 2

$707.99

$

Usually ships in 2-12 days

0

44

Simplicity 2705010

PIVOT BLOCK BOLT, 3/8-24 x 2

$

$

Not available

45

Simplicity 716005

PITMAN Mch BOLT, 7/16-14 x 1-1/2

$322.99

$

Usually ships in 2-12 days

0

46

Simplicity 2705008

ADJUSTMENT BOLT, 1/4-20 x 1-1/4

$

$

Not available

47

Simplicity 8161244

BELT, 38" For V & H Series

$

$

Not available

48

Simplicity 2725003

KEY, Woodruff, 3/16 x 3/4

$

$

Not available

49

Simplicity 8021121

BELT, Guide

$

$

Not available
